Matte Finish Card Stainless Steel Plate Sheet For Prelam PVC Sheet Laminating

Matte Finish Card Stainless Steel Plate Sheet For Prelam PVC Sheet Laminating

Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MSP-M

Payment & Shipping Terms:

Minimum Order Quantity: 200 pcs
Price: Negotiable
Packaging Details: solid plywood carton with soft cushion protection inside
Delivery Time: 10 - 20 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, , D/P
Supply Ability: 2000-3000 sheets per week
Get Best Price Contact Now

Detail Information

Surface Finish: Heavy Matte Finish On Both Sides Dimension Tolerance: ±1mm For Length And Width
Surface Roughness Value Range: Ra1.3-1.5um Plate Size: A4, A3 Or Custom-made Size
Application: Used For Card Laminator Thermal Transmission: 0.04cal/℃.cm.sec At 20℃
High Light:

stainless steel laminate sheets

,

steel laminate sheets

Product Description

Heavy Matte Finish Card Laminated Steel Plates For Plastic Card Sheet Lamination



Production Specification

1. Heavy Matte Finish Card Laminated Steel Plates  Introduction

Heavy Matte Finish Card Laminated Steel Plates are used for laminating plastic card sheets in the card laminator. It can ensure perfect plastic card surface finish after lamination . Our plates are being widely used by many card factories in both China and foreign countries worldwide.

And we also call the plate as Matte / matt steel plate for card laminator,  plastic card finish lamination plate

2. Heavy Matte Finish Card Laminated Steel Plates Specification

Technical Parameters :

Plate size(L×W): A4 , A3 or custom-made size

Plate thickness: 0.6mm , 0.8mm ( Thickness tolerance: ±0.05mm )

Dimension tolerance: ±1mm for length and width.

Plate flatness level: maximum 1 mm.m

Surface roughness value range: 0.3-1.5um

Slight Matte plate ( Ra0.3μm-0.5um )

Heavy Matte plate ( Ra1.3-1.5um )

Glossy plate surface glossiness: over 800 GU at 20° ( both sides )

Surface hardness: HRC80±20

Thermal transmission: 0.04cal/℃.cm.sec at 20℃

Packaging box: solid plywood carton with soft cushion protection inside.

Key Features:

1. The two sides are covered with protection foils (blue thin films) to ensure good protection on both surfaces . There is no glue left after the foil is removed before the plate is used at the first time .

2. Two sides are made glossy in the same quality .

3. There are no scratches , dents, stripes shadows and dust on plate surfaces .

4. The edges are smooth and deburred with the round curved corners .

5. After lamination , the plates are not sticking to the laminated plastic sheets .

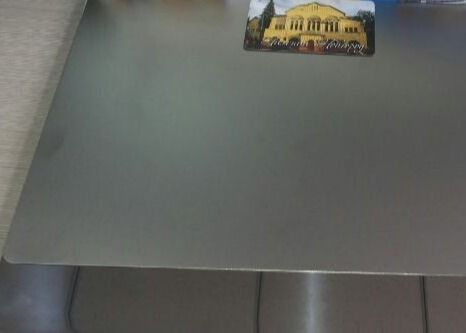

Matte Finish Card Stainless Steel Plate Sheet For Prelam PVC Sheet Laminating 0

Technical Parameters:

 Surface roughness value  Ra1.3-1.5um
 Thickness   0.6mm, 0.8mm (Thickness tolerance: ±0.05mm)
 Plate size   A3, A4 or custom-made size
 Plate flatness level  maximum 1 mm
 Surface hardness  HRC80±20
 Thermal transmission  0.04cal/℃.cm.sec at 20℃
 Edge state  smooth and deburred with the round curved corners
 Packaging box  Strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport



3. Application of Heavy Matte Finish Card Laminated Steel Plates

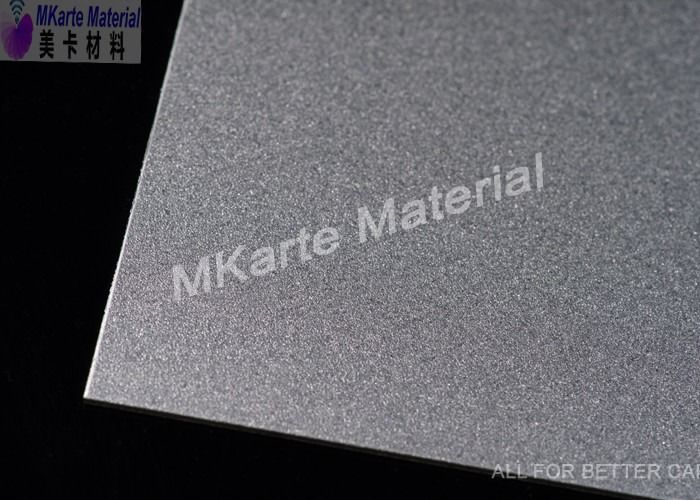

Matte Finish Card Stainless Steel Plate Sheet For Prelam PVC Sheet Laminating 1

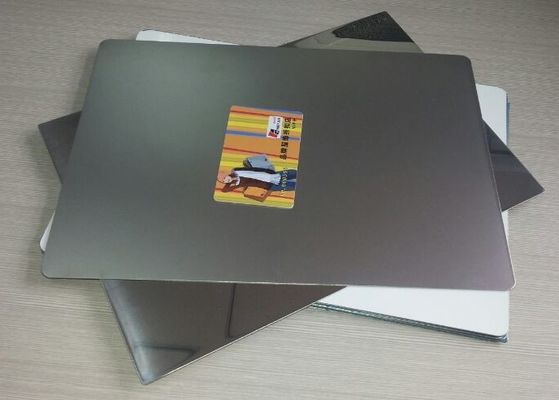

Matte Finish Card Stainless Steel Plate Sheet For Prelam PVC Sheet Laminating 2

Customer design can be accept.



4. Packing of Heavy Matte Finish Card Laminated Steel Plates



Matte Finish Card Stainless Steel Plate Sheet For Prelam PVC Sheet Laminating 3

Matte Finish Card Stainless Steel Plate Sheet For Prelam PVC Sheet Laminating 4
