PVC Overlay Film Reel Smart Card Material Transparent With One Side Glue Coating

PVC Overlay Film Reel Smart Card Material Transparent With One Side Glue Coating

Product Details:

Place of Origin: China
Brand Name: MKarte
Model Number: MCO-W

Payment & Shipping Terms:

Minimum Order Quantity: 30000 sheets or 2 tons
Price: Negotiable
Packaging Details: 50 or 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets
Delivery Time: 10-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3 million tons per month
Get Best Price Contact Now

Detail Information

Material: PVC Size: In Reel Or Sheet, A4, A3 Or As Per Customer Requirements
Normal Thickness: 0.04,0.05,0.06,0.08,0.10mm Color: Transparent With One-side Glue Coating.
Aging Time (65℃ Temp./95% Humidity ): >200 Hours Suitable Ink: Offset And Silk Screen Printing UV Ink, Pigment And Dye Ink For Inkjet Printing As Well As Digital Printing Ink
High Light:

white polycarbonate sheet

,

polycarbonate plastic sheets

Product Description

Smart Card Material - PVC Overlay Film Reel or Sheet High Adhesion for HP Indigo Sheets Use

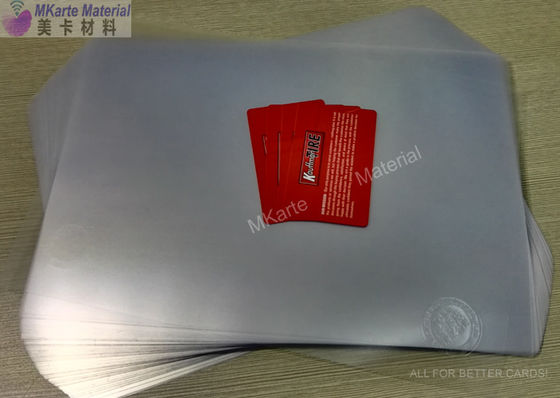

PVC Overlay Film Reel Smart Card Material Transparent With One Side Glue Coating 0

1. Smart Card Material - PVC Overlay Film Reel or Sheet High Adhesion - Introduciton

Brief Introduction:

PVC Coated Overlay is suitable for laminating with conventional ink and UV ink. It could reach excellent peel strength as using Water Based Laminating Varnish . It provides superior aging resistance performance to other similar products, no color change and deformation after lamination. Laserable Coated Overlay is also offered.



PVC Coated Overlay MCO-W model is suitable for laminating with most PVC sheets printed by various printers. It features high adhesion, no color change and deformation.
It is applicable to almost all sheets printed by various ink. It features excellent peeling strength and long aging time.



Technical Parameters:

Item Parameters
Vicat (℃) 72±2 ℃
Shrinkage (%) ≤10%
Tensile Strength (MPa) MD ≥40
TD ≥35
Roughness (μm) Ra 0.5~1.8
Rz 3~9
Thickness (mm) 0.04~0.1




2. Smart Card Material - PVC Overlay Film Reel or Sheet High Adhesion - Parameters



Technical Parameters:

Item Parameters
Vicat softening point    72±2 ℃
Heating Shrinkage ratio    ≤10 %
Tensile Strength ≥40 MPa
Normal thickness in mm 0.04,0.05,0.06,0.08,0.10
Peel Strength (90°, 300mm/min) ≥6.0 N/cm
Aging time (65℃ temp./95% humidity ) >200 hours
 Suitable ink offset and silk screen printing UV ink, Pigment and dye ink for inkjet printing as well as digital printing ink


Parameters:
 1). Size: in reel or sheet, A4, A3 or as per customer requirements
    2). Normal thickness: 0.04,0.05,0.06,0.08,0.10mm

    3). Color: transparent with one-side glue coating.

    4). Package method: by reel or 500 sheets per bag/4-8 bags per paper carton, or as per customer requirements. All the cartons are firmly piled up and fixed on the solid plywood pallet.

    5). Storage condition: Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight.

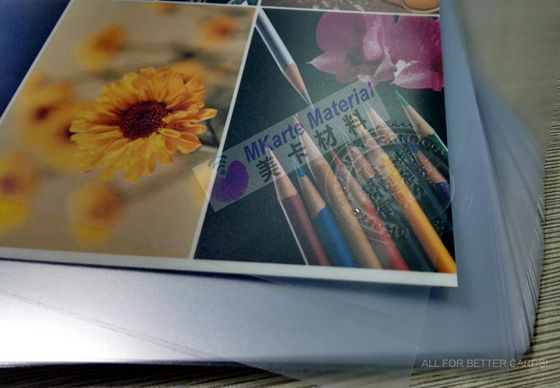

3. Smart Card Material - PVC Overlay Film Reel or Sheet High Adhesion - Application



PVC Overlay Film Reel Smart Card Material Transparent With One Side Glue Coating 1

Characteristics:

 ● Suitable for conventional ink and UV ink, excellent peel strength even with pearl ,gold ,silver and dark color inks.

 ● Keep the fluorescent anti-forgery mark clearly.

 ● Non-Sticky and easy for magnetic stripe tape-laying.

 ● Abrasion resistant , prolong the life of cards.

 ● Environment friendly, no solvent or gas discharged.


Product Category and Laminating Condition:

Product Category MCO-W
Application ID Card,Social Security Card,Bank Card,etc Bank Card,Shopping Card,etc Membership Card,Commercial Card,etc
Suggested Laminating Condition Laminating Unit Heat Laminating Cool Laminating Heat Laminating Cool Laminating Heat Laminating Cool Laminating
Temp 130~150℃ ≤25℃ 130~150℃ ≤25℃ 135~155℃ ≤25℃
Time 25min 15 min 25min 15 min 25min 15 min
Pressure ≥5MPa ≥5MPa ≥5MPa ≥5MPa ≥5MPa ≥5MPa

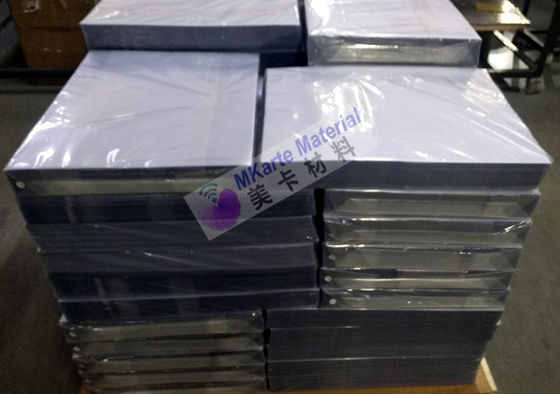

4. Smart Card Material - PVC Overlay Film Reel or Sheet High Adhesion - Packing

PVC Overlay Film Reel Smart Card Material Transparent With One Side Glue Coating 2

Packing:

Outside:Carton Inside:PE bag

Storage:

Keep package sealed and moisture-proof , room temperature under 40℃.

Stacking height should not exceed one meter.

Keep horizontally, avoid oppress heavily and direct sun light.

Shelf life: Two years.
