Grained Laminated Steel Plate For Personalization Smart Cards Lamination
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MSP-G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | USD 5-15 per sheet or negotiable |
| Packaging Details: | plywood box with soft protection material inside |
| Delivery Time: | 10-20 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram,, D/A, D/P |
| Supply Ability: | 40 thousand pieces per month |
|
Detail Information |
|||
| Thermal Transmission: | 0.04cal/℃.cm.sec At 20℃ | Thickness: | 0.8 Mm |
|---|---|---|---|
| Dimension Tolerance: | ±1mm For Length And Width | Plate Flatness Level: | Maximum 1 Mm/m |
| Surface Pattern: | Fine/ Middle/ Heavy Grained | Packaging Box: | Solid Plywood Carton With Soft Cushion Protection Inside |
| High Light: | white polycarbonate sheet,polycarbonate plastic sheets |
||
Product Description

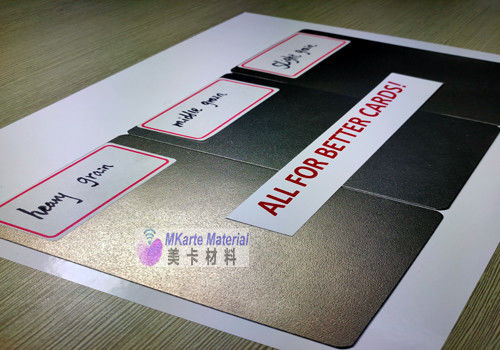

Fine/ Middle / Heavy Grained laminated steel plates for Personalization Smart Cards Lamination
1.Fine/ Middle / Heavy Grained laminated steel plates for Personalization Smart Cards Lamination- Introduction
Product introduction:
Steel plate based in good raw material, use the advae of good conducting of heat, resisting pressure, high quality grained. By our steel plates you can produce the international standard card.
Grained laminated steel plates MSP-G have grained finish surfaces on both sides and are designed for laminating plastic card sheets . It can ensure perfect plastic card surface finish after lamination. Our plates are being widely used by many card factories in both China and foreign countries worldwide.
Detailed Product Description:
1.Glossy finish, matte finish, mirror finish,etc.
2.Size & thickness on request
3.High-grade stainless stee
Features:
1. Card laminator Accessories
2. 800 Micron thickness
3. Characteristic: heat-resistant, high elasticity
2.Fine/ Middle / Heavy Grained laminated steel plates for Personalization Smart Cards Lamination- Parameters
Technical Parameters:
| Plate size(L×W) | A4, A3 or custom-made size |
| Plate thickness |
0.8mm (Thickness tolerance: ±0.05mm) |
| Dimension tolerance | ±1mm for length and width. |
| Plate flatness level: | maximum 1 mm/m |
| Surface pattern |
grained Roughness:1.5-3.0um |
| Surface hardness | HRC80±20 |
| Thermal transmission | 0.04cal/℃.cm.sec at 20℃ |
| Packaging box | solid plywood carton with soft cushion protection inside. |
| Edge state | smooth and deburred with the round curved corners |
3.Fine/ Middle / Heavy Grained laminated steel plates for Personalization Smart Cards Lamination- Features
Key Features:

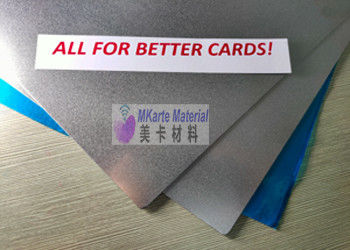

1. The two sides are covered with protection foils (blue thin films) to ensure good protection on both surfaces. There is no glue left after the foil is removed before the plate is used at the first time.

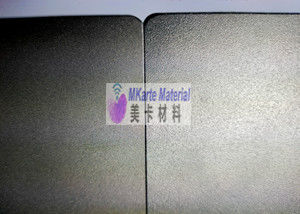

2. Two sides have the grained pattern in the same quality.
3. There are no scratches, dents, stripes shadows and dust on plate surfaces.
4. The edges are smooth and deburred with the round curved corners.
5. After lamination, the plates are not sticking to the laminated plastic sheets.
4.Fine/ Middle / Heavy Grained laminated steel plates for Personalization Smart Cards Lamination- Application
There are five kinds of steel plates in MKarte Material:
1.Glossy steel plates
normal mirror effect,for planographic code and inkjet code.
2.Matte steel plates
on te surface there are tiny lights,thin and lubricious,for planographic code and inkjet code.
3.Coarse matte steel
Platoon lights on the surface,too coarse for planographic code.
4.Moderate coarse matte steel plates
no lights on the surface,moderate coarse.
5.Fine matte steel plates
no lights on the surface, relatively thin and lubricious, for paleographic code and
inkjet code.
5.Fine/ Middle / Heavy Grained laminated steel plates for Personalization Smart Cards Lamination- Packing
- Wood Tree Texture Double Side Laminating Steel Plate for Card Making / Stainless Steel Plate Press on Cards in standard export wooden case
