Mirror Finish Stainless Laminated Steel Plates For Card Laminator Use

Mirror Finish Stainless Laminated Steel Plates For Card Laminator Use

Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MSP-G

Payment & Shipping Terms:

Minimum Order Quantity: 200 sheets
Price: Negotiable
Packaging Details: solid plywood carton with soft cushion protection inside
Delivery Time: 10 - 20 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, , D/P
Supply Ability: 3000sheets per week
Get Best Price Contact Now

Detail Information

Surface Apperance: Glossy Finish On Both Sides Surface Roughness Value Range: Glossy Plate (Ra<0.03μm)
Sheet Size: A3, A4 Or Custom-made Size Thermal Transmission: 0.04cal/℃.cm.sec At 20℃
Surface Hardness: HRC80±20 Application: Widely Used For Laminating Plastic Card Sheets In The Cad Laminator
High Light:

mirror finish laminated steel plate

,

steel mirror finish laminated plate

,

0.03μm Laminated Steel Plate

Product Description

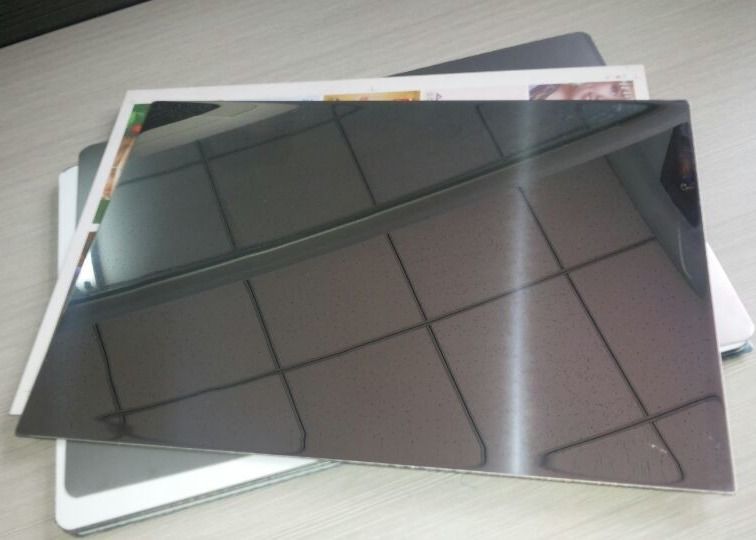

Mirror Finish Stainless Laminated Steel Plates For Card Laminator Use



Production Specification

1.Mirror Finish Stainless Laminated Steel Plates For Card Laminator Use Introduction

 Card Laminated Steel Plates are used for laminating plastic card sheets in the card laminator. It can ensure perfect plastic card surface finish after lamination . Our plates are being widely used by many card factories in both China and foreign countries worldwide.

2.Mirror Finish Stainless Laminated Steel Plates For Card Laminator Use Specification

Key Features:

1. The two sides are covered with protection foils (blue thin films) to ensure good protection on both surfaces . There is no glue left after the foil is removed before the plate is used at the first time .

2. Two sides are made glossy finish in the same quality .

3. There are no scratches , dents, stripes shadows and dust on plate surfaces .

4. The edges are smooth and deburred with the round curved corners .

5. After lamination , the plates are not sticking to the laminated plastic sheets .

Mirror Finish Stainless Laminated Steel Plates For Card Laminator Use 0

Technical Parameters :

Plate size(L×W): A4 , A3 or custom-made size

Plate thickness: 0.6mm , 0.8mm ( Thickness tolerance: ±0.05mm )

Dimension tolerance: ±1mm for length and width.

Plate flatness level: maximum 1 mm.m

Surface roughness value range: <0.03um

Glossy plate surface glossiness: over 800 GU at 20° ( both sides )

Surface hardness: HRC80±20

Thermal transmission: 0.04cal/℃.cm.sec at 20℃

Packaging box: solid plywood carton with soft cushion protection inside.

Mirror Finish Stainless Laminated Steel Plates For Card Laminator Use 1

Technical Parameters:



 Surface roughness value  <Ra0.03μm
 Plate Thickness   0.6mm, 0.8mm (Thickness tolerance: ±0.05mm)
 Plate size ( L×W )  A3, A4 or custom-made size
 Plate flatness level  maximum 1 mm
 Glossy plate surface glossiness  over 800 GU at 20° (both sides)
 Surface hardness  HRC80±20
 Thermal transmission  0.04cal/℃.cm.sec at 20℃
 Edge state  smooth and deburred with the round curved corners
 Packaging box  Strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport.



3. Application of Mirror Finish Stainless Laminated Steel Plates For Card Laminator Use



Mirror Finish Stainless Laminated Steel Plates For Card Laminator Use 2

* Customer design can be accept.

4. Production process of Mirror Finish Stainless Laminated Steel Plates For Card Laminator Use

Mirror Finish Stainless Laminated Steel Plates For Card Laminator Use 3

The lamination steel plates apply the #430 cold rolled stainless steel plates with the thickness of 0.6 or 0.8 mm. The general production processes are summarized as below:



Step1 Raw Material Selection : Hot rolled strip is used as a raw material for cold rolled stripe.



Step 2 Scouring/Pickling : Use a pickling unit to remove iron oxide from the surface of hot rolled strip



Step 3 Cold rolling : After multiple passes of cold rolling, the finished steel strips shall meet the size, shape and surface quality requirements.



Step 4 Heat treatment : Annealing the cold rolled strip to achieve the desired properties.



Step 5 Finishing: the final product is obtained by leveling, shearing and packaging the annealed strip steel coil



Step 6 Flattening and film application : Release #430 stainless steel sheet coil, then flatten it on the flattening line, cut it into standard size

stainless steel plate, and attach protective film on both sides of the steel plate to prevent scratches of the steel plate.



Step 7 Tailor cutting : According to the size requirements of customers, the large steel plate is precisely cut by using the shearing machine.



Step 8 Visual Inspection : Make a comprehensive inspection of each finished steel plate, check the dimension, thickness and surface quality, and eliminate unqualified products. If it is matte finish steel plate, according to customer's requirements, sandblasting machine is used on both sides of the steel plate to achieve matte finish effect, and then apply protection films on both sides before quality inspection.



Step 9 Packaging and labeling : Packaging the qualified products by using fumigation-free wooden cases, and inside the wooden cases, the soft materials are applied to maximize the protection of steel plates during the process of handling and transportation. The proper label or logo is applied on the case surface before shipment.

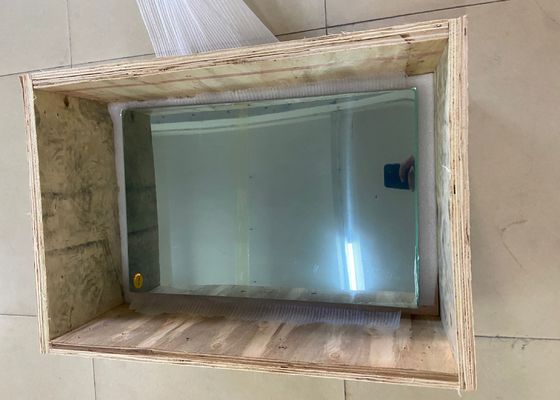

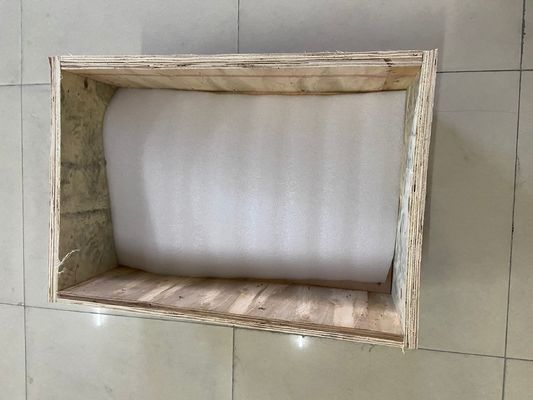

5.Packing of Mirror Finish Stainless Laminated Steel Plates For Card Laminator Use

Mirror Finish Stainless Laminated Steel Plates For Card Laminator Use 4
