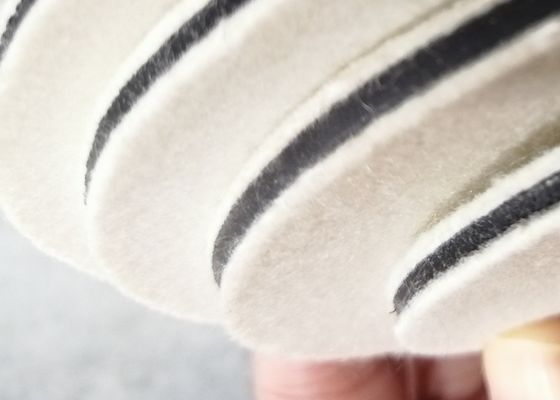

A4 Size Woolen Felt Cushion Laminated Pad For Bank / Credit RFID Card Lamination

A4 Size Woolen Felt Cushion Laminated Pad For Bank / Credit RFID Card Lamination

Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MRP-2

Payment & Shipping Terms:

Minimum Order Quantity: 100 Sheets
Price: Negotiable
Packaging Details: In standard export carton , strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport
Delivery Time: 5-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 1000 Sheets per week
Get Best Price Contact Now

Detail Information

Sheet Size: A4, A3 Or Customized Breaking Strength: 80 Mpa
Material: Woolen And Silicone Normal Size: A4, A3 Or Other Customer Requirement
Feature: High Tensile Strength And Tearing Strength Application: Used For The Lamination Process For Various Plastic Cards
High Light:

A4 Size Laminated Pad

,

woolen felt cushion laminated pad

,

rfid card lamination pad

Product Description

A4 Size Woolen Felt Cushion Laminated Pad For Bank / Credit RFID Card Lamination



Production Specification

1.Introduction of A4 Size Woolen Felt Cushion Laminated Pad For Bank / Credit RFID Card Lamination

Woolen Surface Felt Cushion White Laminated Pad is designed for the lamination process for various plastic cards including bank card , credit card , and royalty card . It works with lamination steel plate in the plastic card lamination process .

One sheet laminating pad is used both at the bottom and top while lamination to ensure balance temperature and pressure. High temperature resistances, high pressure resistance, heat quickly and evenly, improve the card quality. Laminated pad has two types, silicone wool pad and a rubber cushion, etc.

The structure of white silicon cushion pads is white heatproof silicon rubber layers on the surfaces with glass filer in the middle .

Woolen Surface Felt Cushion White Laminated Pad is suitable for manufacturing kinds of ISO standard cards, ID cards and smart cards . Raw materials are all for anti-high temperature and anti-high pressure. Meeting the requirements of laminating process, as the professional card consumables, they have been widely using for improving the production efficiency and saving energy because of the feature of thermal conductive fast and uniform . Have excellent bibulous performance, can effectively eliminate the risks of bubbles and watermarks on card surface , greatly improved the qualification rate of products, and with good cushioning properties , they can avoid the scratches linked to the hard touching between the heating plate and the trays , benefited to the long using life of above both.

A4 Size Woolen Felt Cushion Laminated Pad For Bank / Credit RFID Card Lamination 0

2. Specification of A4 Size Woolen Felt Cushion Laminated Pad For Bank / Credit RFID Card Lamination

Key Features:

1. It is heatproof with great durability, which can well meet the technological requirements in plastic card lamination .

2. It can transfer heat quickly and evenly , which can improve production efficiency and energy conservation .

3. It has good performance of high temperature resistance and excellent elastic resilience .

4. It has good cushioning performance to avoid the damage and scratching resulting from direct contacting between laminator template and lamination steel plates , which can extend the service life of both lamination steel plates and template .

Detailed Product Description

(1) Woolen Surface Felt Cushion
(2) High tensile strength and tearing strength, heat resistant up to 250
(3) Long service life
(4)  Product Application: It is used for hot-press , widely used for card laminating or furniture , wooden doors of the pressure paste .

(5) Product specification: 1) thickness: 3.5 -4.5 mm 2) maximum width: 3800mm with no joint 3) any length 4) color: white

Product Parameter :

1. Heatproof performance: 200℃

2. Tensile strength: 80 N/mm

3. Adhesion: 80 N/mm

4. Hardness SHORE A: 55±5

5. Thickness: 3mm

6. Length and width: A4, A3 or custom-made size (size tolerance: ±1mm)

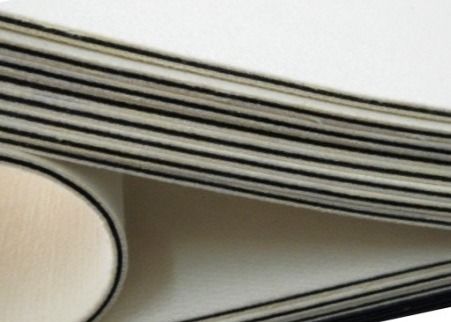

A4 Size Woolen Felt Cushion Laminated Pad For Bank / Credit RFID Card Lamination 1

The technical index:

 Application  Laminating process for smart card production
 Facing material  High-temperature endurable felt
 Middle material  Black silica rubber
 Rigidity  50±5
 Tensile strength(N/mm)  60
 Adhesion  2.5-4.5 N/mm
 Heatproof performance  200 ℃
 Breaking strength  80MPa
 Surface Finish  Woolen Felt
 Package  In standard export carton , strong plywood package with proper soft protection material inside , suitable for long distance for sea or air transport



3. Application of A4 Size Woolen Felt Cushion Laminated Pad For Bank / Credit RFID Card Lamination

It is used for hot-press , widely used for card laminating or furniture , wooden doors of the pressure paste .

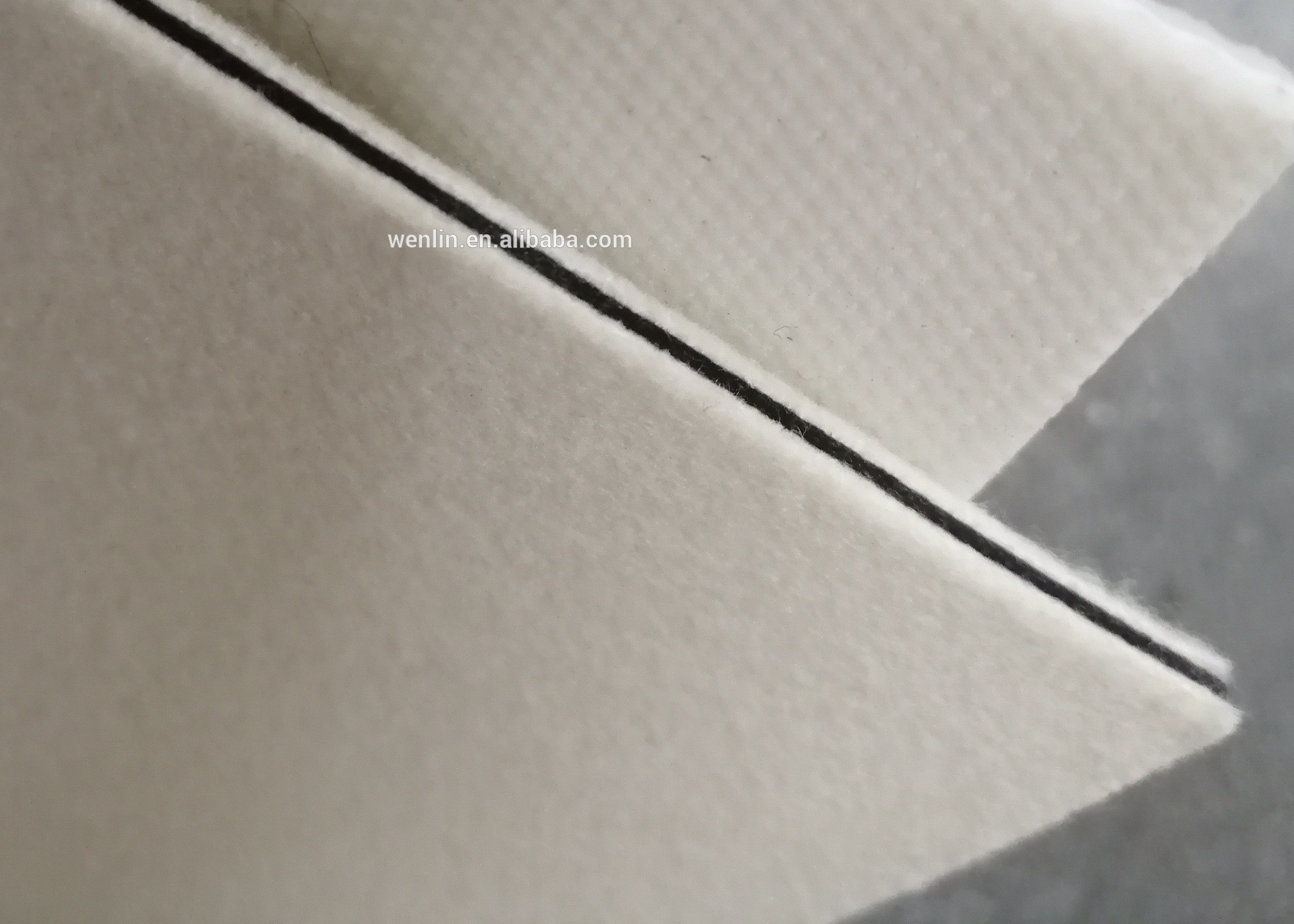

A4 Size Woolen Felt Cushion Laminated Pad For Bank / Credit RFID Card Lamination 2



4.Packing of A4 Size Woolen Felt Cushion Laminated Pad For Bank / Credit RFID Card Lamination

In standard export carton or In standard export plywood case

A4 Size Woolen Felt Cushion Laminated Pad For Bank / Credit RFID Card Lamination 3
