Black Color Magnetic Stripes Coated Film Hi-Co Magnetic Stripe For PVC Card Lamination

Black Color Magnetic Stripes Coated Film Hi-Co Magnetic Stripe For PVC Card Lamination

Product Details:

Place of Origin: China
Brand Name: LUCKY China
Model Number: MCO-MS

Payment & Shipping Terms:

Minimum Order Quantity: 20000-30000 Sheets
Price: Negotiable
Packaging Details: In standard export carton or strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport
Delivery Time: 10- 20 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 5 million square meters per month
Get Best Price Contact Now

Detail Information

Normal Size: A4 , A3 Or Custom-made Size Thickness In Mm: 0.04,0.05,0.06,0.08,0.10
Magnetic Stripe Feature: HICO/LOCO, Standard Width 12.7mm, Black Color, Peelable Transfer Model Size Tolerance: +/-0.5 Mm In Length And Width, +/-5% In Thickness
Color: Transparent With One-side Glue Coating Package Method: In Standard Export Carton: 100/200 Sheets Per Bag Or As Per Customer Requirements
High Light:

clear overlay sheets

,

a4 coloured overlays

Product Description

Black Color Magnetic Stripes Coated Film Hi-Co Magnetic Stripe For PVC Card Lamination​


1. Introduction of Black Color Magnetic Stripes Coated Film Hi-Co Magnetic Stripe For PVC Card Lamination​

Black Color Magnetic Stripes Coated Film Hi-Co Magnetic Stripe For PVC Card Lamination​ is applied with standard magnetic stripe. It applies the high-quality magnetic stripe made by LUCKY China . It can be directly laminated with the printing sheets in the card laminator before punched into standard magnetic card. It features high adhesion , no color change and deformation with long aging life after the process of lamination .

Black Color Magnetic Stripes Coated Film Hi-Co Magnetic Stripe For PVC Card Lamination​ is used as an outer layer on the printed PVC sheets in card lamination. It simplifies the card making process and provides high bonding strength. It efficiently prevents the cards from scratching or cracking, and cuts down the waste rate in production.

Steps to make cards:

1. Put printing core and two overlays together , then put into the laminator . ( the laminating temperature and time is determined as per the instruction of the machine ) . Please be noticed that all glue sides of both PVC sheets and Overlays are put inward .

2. Tlamination lasts 10-15 minutes . The pressure is 6-8Mpa. The temperature is 120-140°C.

3. Cutting the card.

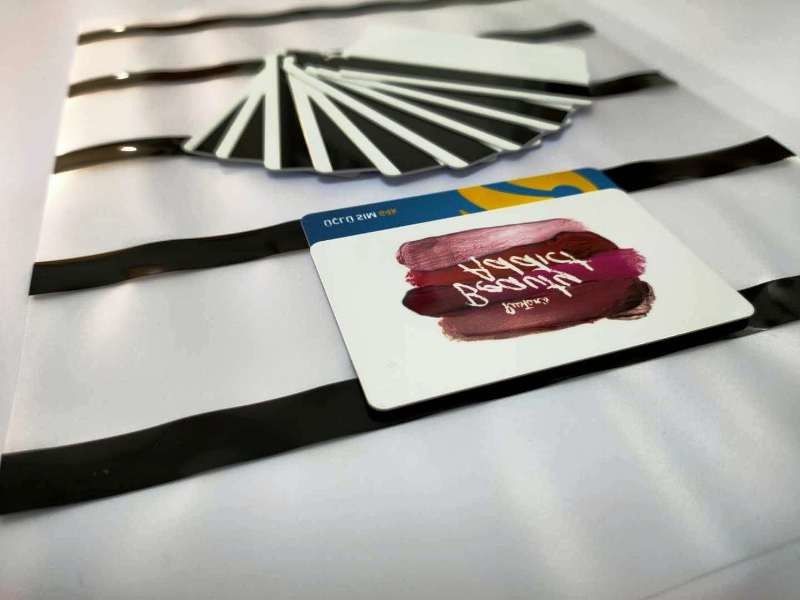

Black Color Magnetic Stripes Coated Film Hi-Co Magnetic Stripe For PVC Card Lamination 0

2.Specification of Black Color Magnetic Stripes Coated Film Hi-Co Magnetic Stripe For PVC Card Lamination​

Product Parameter :
1.Size: in sheet, A4, A3 or as per customer requirements
2. Coated overlay thickness range in mm: 0.04,0.05,0.06,0.08,0.10
3. Magnetic stripe feature: HICO/LOCO, standard width 12.7mm, black color, Peelable transfer model, Brand: LUCKY
4. Size tolerance: +/-0.5 mm in length and width, +/-5% in thickness.
5. Color : transparent with one-side glue coating
6. Length and width: in sheet, 201*297 mm ( A4 ) , 310*480 mm ( A3 ) or custom-made size (size tolerance: ±1mm)

7. Package method: 100/200 sheets per bag or as per customer requirements.

8. Storage condition: Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight.

Detailed Product Description

Coated overlay with magnetic strip hico 2750 oe or loco 360oe , used for card making and laminating ,one side is with magnetic strip,another side for laminating.

1. It has strong adhesive effect

2. it apply to most of the bank card and smart card lamination.
3. Yellow resistance

4. Magnetic strip is not easy to peel off .

Specifications:

 Lamination Temperature  120-140 ℃
 Thickness of overlay  0.04~0.1mm
 Size  Sheet size or Roll size, any size as your requirement
 Classify  HICO 2750OE, LOCO 360OE
 Color  Clear (Transparent)
 Glue Coated  YES

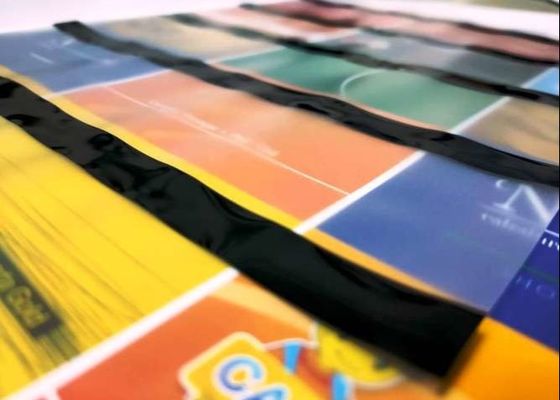

Black Color Magnetic Stripes Coated Film Hi-Co Magnetic Stripe For PVC Card Lamination 1

The technical index:

 Model number  MCO-MS
 Normal Thickness in mm  0.04,0.05,0.06,0.08,0.10
 Size  Sheet size or Roll size, any size as your requirement
 Color  Clear (Transparent)
 Glue Coated  Yes
 Material  PVC
 Application  Magnetic Card Making
 Type  Heat press
 Advae  IWaterproof, Moistureproof, Customized layout
Packaging box

 In standard export carton or strong plywood package with  proper soft   protection material inside, suitable for long distance for sea or air transport



3.Applcation of Black Color Magnetic Stripes Coated Film Hi-Co Magnetic Stripe For PVC Card Lamination​

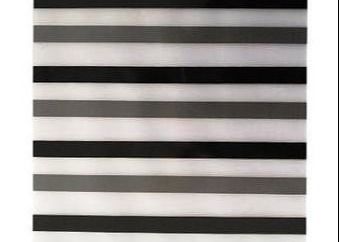

In manufacturing process, it can be directly laminated with PVC printing sheet, which will simplify the fabrication process, save time.Black Color Magnetic Stripes Coated Film Hi-Co Magnetic Stripe For PVC Card Lamination 2

4.Packing of Black Color Magnetic Stripes Coated Film Hi-Co Magnetic Stripe For PVC Card Lamination​

In standard export carton and plywood pallet
Black Color Magnetic Stripes Coated Film Hi-Co Magnetic Stripe For PVC Card Lamination 3
