Laser Engraving A4 Polycarbonate Uncoated Overlay PC Films

Laser Engraving A4 Polycarbonate Uncoated Overlay PC Films

Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MUO-PC-LE

Payment & Shipping Terms:

Minimum Order Quantity: 30000 sheets or 2 tons
Price: Negotiable
Packaging Details: By reel or 500 sheets per bag, 4 bags per paper carton and with standard export carton, and the cartons are piled up and firmly fixed on solid plywood pallets
Delivery Time: 10-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 million square meters or 3 million tons per month
Get Best Price Contact Now

Detail Information

Normal Size: In Sheet Or Reel, A4, A3 Or As Per Customer Requirements Popular Color: Semi-transparent Without Coating On Surface
Surface Appearance: Slight Matt/Matt, Flat, No Defect, No Dust. Surface Coating: Without Coatings On Both Sides
Package Method: In Reel Or 500 Sheets Per Bag/4 Bags Per Paper Carton, Or As Per Customer Requirements Feature: Perfect Image Of Laser Etching Technology Support, Apply To Identity Cards With Anti-fake Requirements
Storage Condition: Sealed, Moisture-proof, Room Temperature Under 40℃, Keep It Horizontally, Avoid Heavy Pressing And Direct Sunlight. Normal Thickness In Mm: 0.04,0.05,0.06,0.08,0.10
Highlight:

Polycarbonate Uncoated Overlay Films

,

A4 Overlay PC Films

,

A4 Polycarbonate Plastic Sheet

Product Description

Polycarbonate Uncoated Overlay for Laser Engraving PC Plastic Sheet Used in Smart Card Production



Production Specification

1.Introduction of Polycarbonate Uncoated Overlay for Laser Engraving PC Plastic Sheet Used in Smart Card Production

PC Films Suitable for Laser Engraving PC Plastic Sheet is specially produced for PC card body lamination with printed sheets. It has such good features like strong lamination adhesion, excellent tensile strength, wear resistance and high temperature resistance. It is widely used in such cards as anti-fake IC cards, driving license card, transportation card and passport etc.

PC Films Suitable for Laser Engraving PC Plastic Sheet has many special characteristics that other engineering plastics don’t contain, due to the flexible carbonate group and the rigid benzene ring in its molecular structure. Therefore it’s widely used. Due to the specialty in its structure, PC has a range of unique advaes such as excellent light transmittance, relatively high glass transition temperature, desirable chemical modification, easy for physical modification, excellent impact toughness, creep resistance, electrical in insulation and weathering resistance.

PC overaly and sheets that made from polycarbonate have a wide range of temperature (-30~120℃), dimensional stability, excellent comprehensive properties and easy to process, therefore they are very widely used.

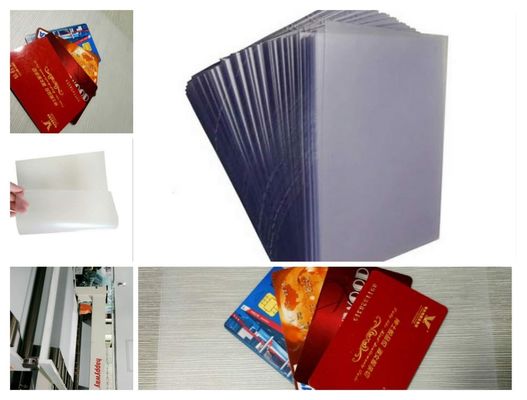

Laser Engraving A4 Polycarbonate Uncoated Overlay PC Films 0

2.Specification of Polycarbonate Uncoated Overlay for Laser Engraving PC Plastic Sheet Used in Smart Card Production



Product details :

PC Films Suitable for Laser Engraving PC Plastic Sheet which is for PC card making ,this material has under mentioned advaes :

1). Excellent strength and wear-resisting.
2). High temperature and low temperate resistance.
3). Perfect application for laser engraving.
4). Environment-friendly material.
5). Longer service life.

6). Perfect image of laser etching technology support, apply to identity cards with anti-fake requirements

Technical parameters
Item Standard Value

Thickness

(mm)

0.04-0.085 ( ±5%)
Surface Matt/Matt, flat, no defect, no dust.
Tensile Strength (Mpa) -ISO527-3 ≧50(MD/CD)
Break Strength (%) -ISO527-3 ≧60(MD/CD)

Folding Capacity



Thickness <0.25mm, ≧13
Thickness ≧0.25mm,≧11
Light Transmittance (%) ≧80
Haze (%) ≦ 90
Surface Tension(Dynes/cm) -ISO 8296-2003 ≧34

Heating Shrinkage (%)

(135℃±2,10min)

Thickness≤ 0.175mm MD ≦2.5
CD ≦0.5
Vicat Softening Temperature(℃) - ISO 306-1994 150±3
Coating availability No coatings on both sides

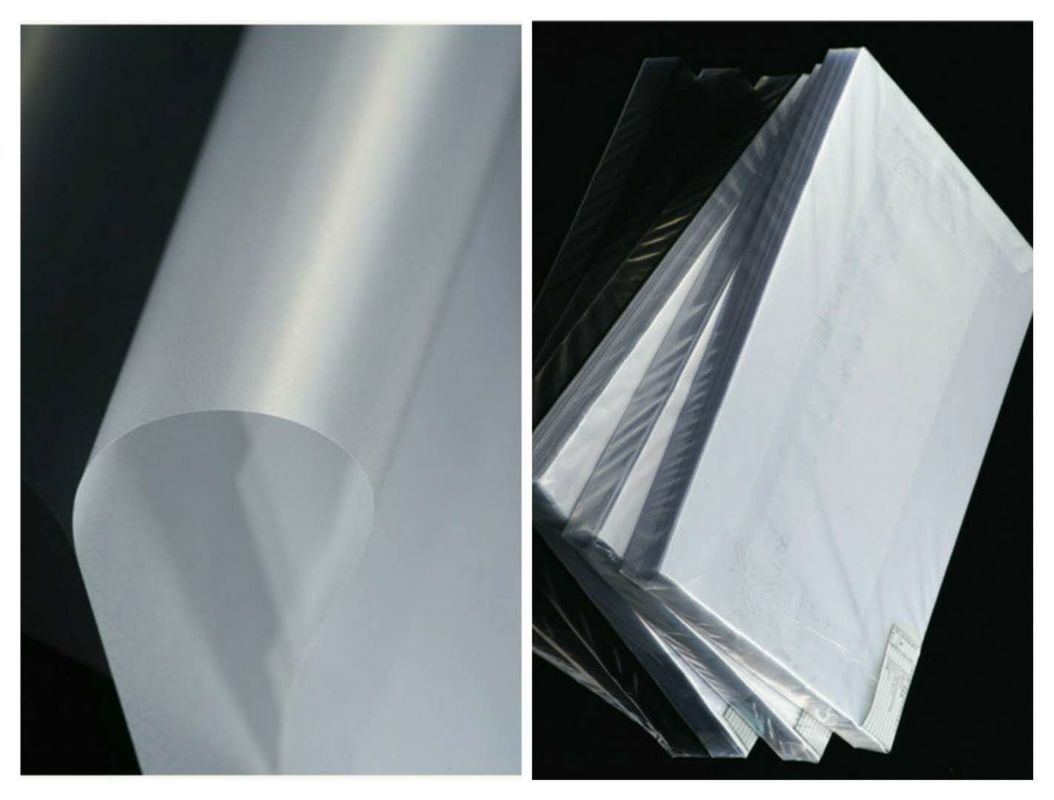

Laser Engraving A4 Polycarbonate Uncoated Overlay PC Films 1

Parameters :

1). Size: in reel  or in sheet as 210*297mm ( A4 ) , 310*480mm ( A3 ) or as per customer requirements

2). Normal thickness in mm: 0.04,0.05,0.06,0.08,0.10

3). Color : Transparent or without coating on surface.

4). Package method : in reel ,or 500 sheets per bag, 4 bags per carton or customized,  and the cartons are piled up and firmly fixed on solid plywood pallets

5). Storage condition : Sealed, moisture-proof, room temperature under 40℃ , Keep it horizontally, avoid heavy pressing and direct sunlight .

6). Laser engraving performance: can be laser engraved

Product name PC Films Suitable for Laser Engraving PC Plastic Sheet For PC Card Production
Model MUO-PC-LE
Color Transparent or clear
Thickness in mm 0.04, 0.05, 0.06, 0.08, 0.1
Vicat point ℃ 148
Tensile strength 60 Mpa
Tear strength >30
Density 1.2g/cm³
Thermal shrinkage <1.0 %
Roughness value Ra0.58-3.2
Glue coated Without coating on both sides
Packing  PE Film inside + Carton box +Pallet
Advae

Excellent strength and abrasion resistance, high and low temperature resistance;

suitable for card body performance and anti-counterfeiting technology requirements, such as id card, driving license, e-passport, etc



PC Films Suitable for Laser Engraving PC Plastic Sheet is known as the new reliable material for PC card body production. It has such features as high vicat point and cannot be used for laser engraving. The PC sheet is perfect for making ID card, E-Passport etc.

Features as below:

Secure layered construction

Polycarbonate cards are made of layers of polycarbonate films, laminated into a single solid layer. Unlike other card materials, lamination can be carried out without the use of an adhesive. The films cannot be subsequently separated without destroying the card enhancing protection against tampering and fraud. Chips and antennas can be securely embedded in the layered films of a polycarbonate card.

Long-term performance

Polycarbonate overlay also offer excellent mechanical and thermal properties. They are resistant to heat up to 145°C and do not warp after extended exposure to high temperatures. Polycarbonate retains its stiffness even at low temperatures.

Polycarbonate is used to make CDs, bulletproof glass, water bottles and, increasingly, cards and secure passport laminates. Stronger and more expensive than PVC, its durability makes polycarbonate an ideal material for cards intended for a service life of ten years or more, such as national ID, passports and driving licenses. When finally incinerated for disposal, polycarbonate mainly produces water and carbon dioxide.

Personalization

Polycarbonate cards can benefit from the high-cost but virtually tamper-proof personalization technique of laser engraving.

Feature Testing method Unit Testing value
Physics
Specific gravity ASTM D792 G/cm³ 1.2
Average water absorption ASTM D570 % 0.35
Mechanical
Tensile strength ASTM D882 Psi 8800
ISO R1184-1987 Mpa 60
Ultimate elongation ASTM D882 % >90
Impact strength JIS-k6745 In-ibs 120
Tear strength ASTM D1922 G/mil >30
Temperature resistance
Vicat softening point ASTM D1525 128
Thermal shrinkage D1204 % <1.0
Electrical
Dielectric strength ASTM D149 V/mil 1700
Volume Insulation ASTM D257 Ohm.m 10 16
Surface Insulation ASTM D257 Ohm 10 15
Roughness value
Medium sand   um Ra3.45
Fine sand   um Ral.5~2.1
Matte   um Ra0.58
Feature unit limit
Thickness tolerance % >0.5±0.006mm
≤0.5 ±0.004mm



3.Application of Polycarbonate Uncoated Overlay for Laser Engraving PC Plastic Sheet Used in Smart Card Production

It is widely used in such cards as anti-fake IC cards, driving license card, transportation card and passport etc.

Laser Engraving A4 Polycarbonate Uncoated Overlay PC Films 2

4.Packing of Polycarbonate Uncoated Overlay for Laser Engraving PC Plastic Sheet Used in Smart Card Production

In standard export carton and are packed on plywood pallet

Laser Engraving A4 Polycarbonate Uncoated Overlay PC Films 3
