0.15mm+0.46mm+0.15mm White Dragon PVC Non-Laminating Inkjet Sheet MNI-3
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MNI-3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000 sets (3 sheets per sheet) |
|---|---|
| Price: | USD 0.18-0.25 per set |

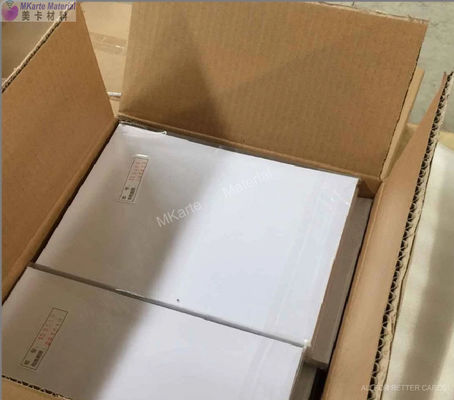

| Packaging Details: | 50 sets per carton |
| Delivery Time: | 10-20 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5 million sets per month |
|
Detail Information |
|||
| Sheet Size: | 200*300mm | Sheet Thickness Per Set: | T1) 0.15mm+0.46mm+0.15mm(A+B+A) T2) 0.15mm+0.60mm+0.15mm(A+B+A) T3) 0.25mm+0.46mm+0.25mm(A+B+A) |
|---|---|---|---|
| Package Method: | 50 Sets Per Carton | Rolling Laminatortemperature: | Around 150℃-180℃ |
| High Light: | non glare laminating sheets,non glossy laminating pouches |
||
Product Description

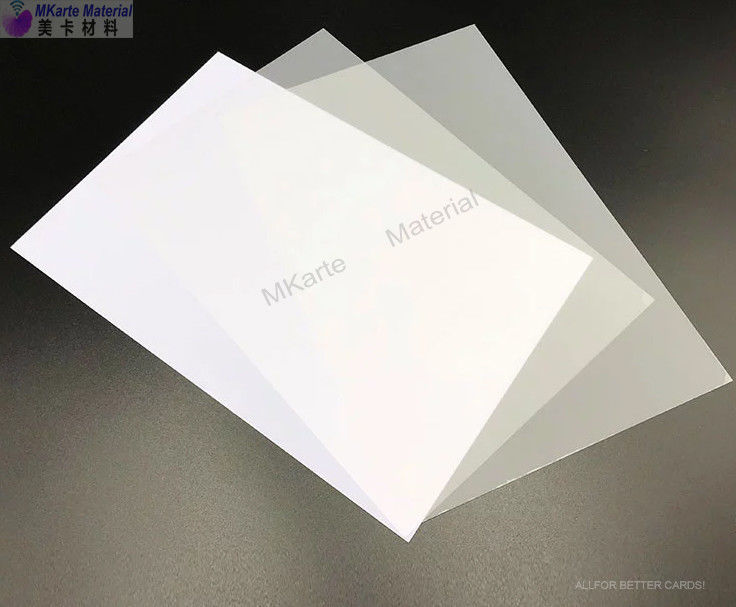

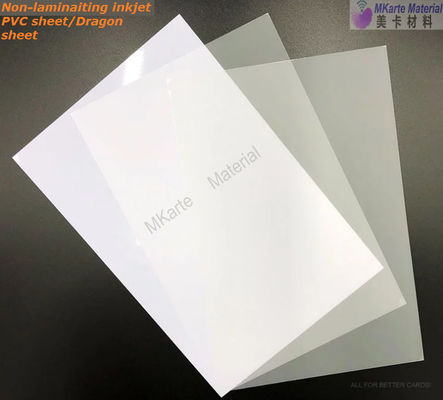

Non-laminating inkjet PVC sheet MNI-3 ( Dragon card sheet size: 0.15mm+0.46mm+0.15mm )
Non-laminating inkjet PVC sheet (Dragon card sheet) is known as the most economic material solution for normal card production. There are three sheets in one set including 2 transparent printing sheets (sheet A) plus 1 middle white core sheet (sheet B).
The recommended card production procedures are detailed as below:
1. Print the image on the two sheets A with inkjet printer (remember to choose “mirror printing”), wait and let the ink dry up completely (normally around 5-10 minutes)
2. Remove the protection films on the middle core sheet, put the printed sheets right on both sides of the middle core sheet, then let it go through the rolling laminator (set temperature around 150℃-180℃)
3. Cut the laminated sheet into standard card, remove the protection film from the surface of the card.
Product parameters:
| Sheet size | 200mmx300mm |
| Sheet thickness per set |
T1) 0.15mm+0.46mm+0.15mm(A+B+A) T2) 0.15mm+0.60mm+0.15mm(A+B+A) T3) 0.25mm+0.46mm+0.25mm(A+B+A) A: transparent inkjet printing sheet B: white pvc core sheet |
| Package method | 50 sets per carton |
