White Plastic Printable Inkjet Laminated Pad For Plastic Card Laminator

White Plastic Printable Inkjet Laminated Pad For Plastic Card Laminator

Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MRP-1

Payment & Shipping Terms:

Minimum Order Quantity: 100 sheets
Price: Negotiable
Packaging Details: Strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport
Delivery Time: 5-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 10000 Square Meters per Month
Get Best Price Contact Now

Detail Information

Facing Material: High-temperature Endurable Felt Middle Material: Silica Gel In Black
Size: In Sheet , A3, A4 Or Other Tensile Strength & Adhesion: 80 N/mm
Hardness(Shore A): 55±5 Breaking Extensibility: 350 %
Color: White Heat-resistant: 200 ℃
High Light:

laminated bearing pads

,

laminated elastomeric bearing pads

Product Description

Laminated Pad In White For Hot-press Process in Plastic Card Laminator



Production Specification



1. Laminated Pad In White Introduction

Laminated Pad In White is suitable for manufacturing kinds of ISO standard cards, ID cards and smart cards. Raw materials are all for anti-high temperature and anti-high pressure. Meeting the requirements of laminating process, as the professional card consumables, they have been widely using for improving the production efficiency and saving energy because of the feature of thermal conductive fast and uniform. Have excellent bibulous performance, can effectively eliminate the risks of bubbles and watermarks on card surface, greatly improved the qualification rate of products, and with good cushioning properties, they can avoid the scratches linked to the hard touching between the heating plate and the trays, benefited to the long using life of above both.

Laminated Pad In White is designed for the lamination process for various plastic cards including bank card , credit card , and royalty card . It works with lamination steel plate in the plastic card lamination process .

The structure of white silicon cushion pads is white heatproof silicon rubber layers on the surfaces with glass filer in the middle .



2. Laminated Pad In White  Specification

Product Parameter :

1. Heatproof performance: 200℃

2. Tensile strength: 80 N/mm

3. Adhesion: 80 N/mm

4. Hardness SHORE A: 55±5

5. Thickness: 3mm

6. Length and width: A4, A3 or custom-made size (size tolerance: ±1mm)

Facing material  High-temperature endurable felt
Middle material  Black silica gel
Rigidity  50±5
 Tensile strength(N/mm)  60
 Adhesion N/mm  2.5-4.5
 Heat-resistant t (℃)  200
 Breaking strength  80MPa
 Surface Finish  Woolen

Key Features:

1. It is heatproof with great durability, which can well meet the technological requirements in plastic card lamination .

2. It can transfer heat quickly and evenly , which can improve production efficiency and energy conservation .

3. It has good performance of high temperature resistance and excellent elastic resilience .

4. It has good cushioning performance to avoid the damage and scratching resulting from direct contacting between laminator template and lamination steel plates , which can extend the service life of both lamination steel plates and template .

Detailed Product Description

(1)  Silicon rubber cushion
(2)  High tensile strength and tearing strength,
(3)  Long service life,
(4)  Heat resistant
up to 250

(5)  Product Application: It is used for hot-press , widely used for card laminating or furniture , wooden doors of the pressure paste .

(6)  Product specification:  1)  thickness: 1.5- 3.5mm  2) maximum width: 3800mm with no joint  3) any length  4) color: white



White Plastic Printable Inkjet Laminated Pad For Plastic Card Laminator 0

The technical index:

 Model number  MRP-1
 Thickness  1.5- 3.5mm (Thickness tolerance: ±0.05mm)
 Pad size  in sheet, A3, A4 or custom-made size
 Breaking strength  80 Mpa
 Hardness SHORE A  55±5
 Adhesive force N/mm  2.5
 Breaking extensibility  350
Packaging box

Strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport



3. Application of Laminated Pad In White

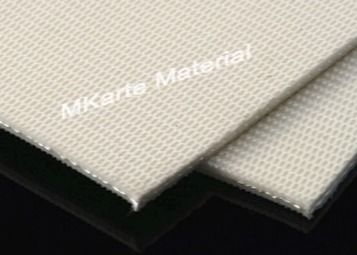

White Plastic Printable Inkjet Laminated Pad For Plastic Card Laminator 1



4. Packing of Laminated Pad In White

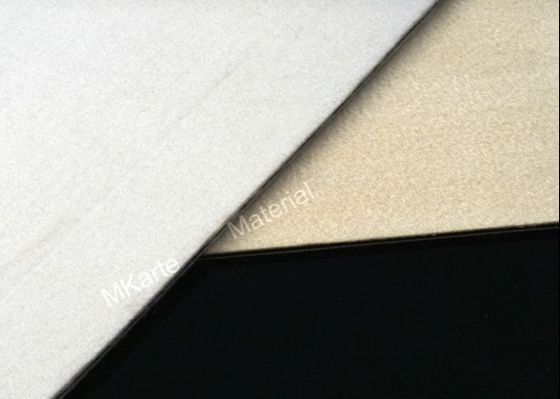

White Plastic Printable Inkjet Laminated Pad For Plastic Card Laminator 2

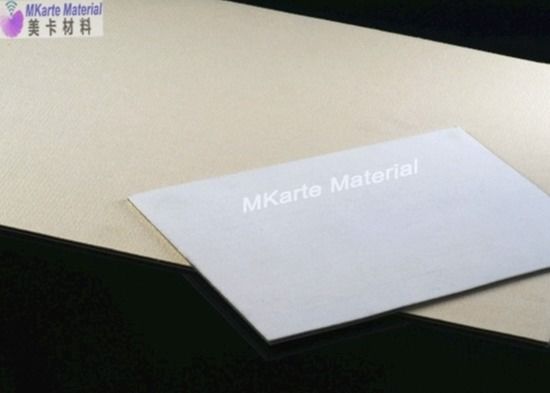

White Plastic Printable Inkjet Laminated Pad For Plastic Card Laminator 3
