Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MRP-2

Payment & Shipping Terms:

Minimum Order Quantity: 100 sheets
Price: Negotiable
Packaging Details: Strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 10000 Square Meters per Month
Get Best Price Contact Now

Detail Information

Type: Laminating Pad Applicable Industries: Printing Shops, Advertising Company
Product Name: Wool Silicone Press Cushion Pad A4 Size For PVC ID Card Laminating Shape: Square
Thickness: About 3.5 Mm Tensile Strength & Adhesion: 80 N/mm
Hardness SHORE A: 55±5 Length And Width: In Sheet, A4, A3 Or Custom-made Size (size Tolerance: ±1mm)
High Light:

laminated bearing pads

,

laminated elastomeric bearing pads

Product Description

Smart Card Laminating Process Material - Woolen Felt Cushion Laminated Pad



Production Specification



1. Woolen Felt Cushion Laminated Pad Introduction



Woolen Felt Cushion Laminated Pad is designed for the lamination process for various plastic cards including bank card , credit card , and royalty card . It works with lamination steel plate in the plastic card lamination process .

The structure of white silicon cushion pads is white heatproof silicon rubber layers on the surfaces with glass filer in the middle .

Woolen Felt Cushion Laminated Pad is suitable for manufacturing kinds of ISO standard cards , ID cards and smart cards. Raw materials are all for anti-high temperature and anti-high pressure. Meeting the requirements of laminating process , as the professional card consumables , they have been widely using for improving the production efficiency and saving energy because of the feature of thermal conductive fast and uniform. Have excellent bibulous performance, can effectively eliminate the risks of bubbles and watermarks on card surface , greatly improved the qualification rate of products , and with good cushioning properties , they can avoid the scratches linked to the hard touching between the heating plate and the trays , benefited to the long using life of above both.



2. Woolen Felt Cushion Laminated Pad Specification



Technical Parameters :

1. Heatproof performance: 200℃

2. Tensile strength: 80 N/mm

3. Adhesion: 80 N/mm

4. Hardness SHORE A: 55±5

5. Thickness: 3.5 mm

6. Length and width: A4, A3 or custom-made size (size tolerance: ±1mm)

7. Facing material: High-temperature endurable felt

8. Function: Insulation Laminating woolen

Detailed Product Description

(1)  Woolen felt cushion
(2)  High tensile strength and tearing strength,
(3)  Long service life,
(4)  Heat resistant
up to 250

(5)  Product Application: It is used for Printing Shops, Advertising Company , widely used for card laminating or furniture , wooden doors of the pressure paste .

(6)  Product specification:  1)  thickness: 3.5- 4.0 mm  2) maximum width: 3800mm with no joint  3) any length  4) color: white in black gel



Key Features:

1. It is heatproof with great durability, which can well meet the technological requirements in plastic card lamination .

2. It can transfer heat quickly and evenly , which can improve production efficiency and energy conservation .

3. It has good performance of high temperature resistance and excellent elastic resilience .

4. It has good cushioning performance to avoid the damage and scratching resulting from direct contacting between laminator template and lamination steel plates , which can extend the service life of both lamination steel plates and template .

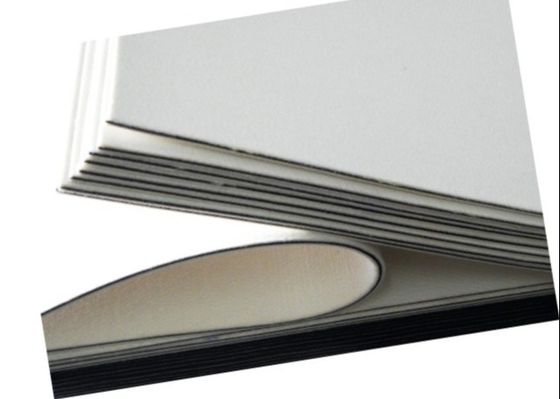

Smart Card Laminating Rubber Cushion Pad For Laminating Plastic Cards 0



The technical index :

 Model   MRP-2
 Thickness  3.5mm -4.0 mm  (Thickness tolerance: ±0.05mm)
 Pad size  in sheet, 310*480 mm , 210*297mm or custom-made
 Breaking strength  80 Mpa
 Hardness SHORE A  55±5
 Adhesive force   2.5 N/mm
 Breaking extensibility  350 %
Packaging box

Strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport



3. Application of Woolen Felt Cushion Laminated Pad

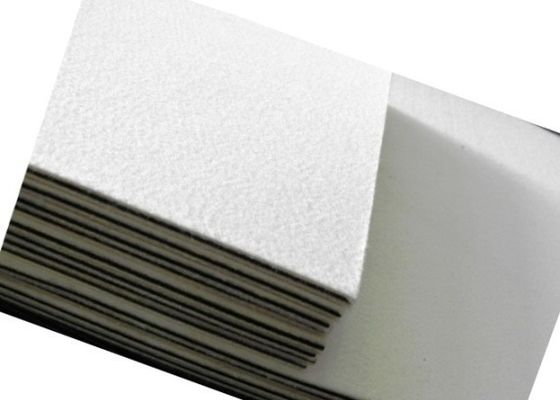

Smart Card Laminating Rubber Cushion Pad For Laminating Plastic Cards 1



4. Packing of Woolen Felt Cushion Laminated Pad



In Cartons

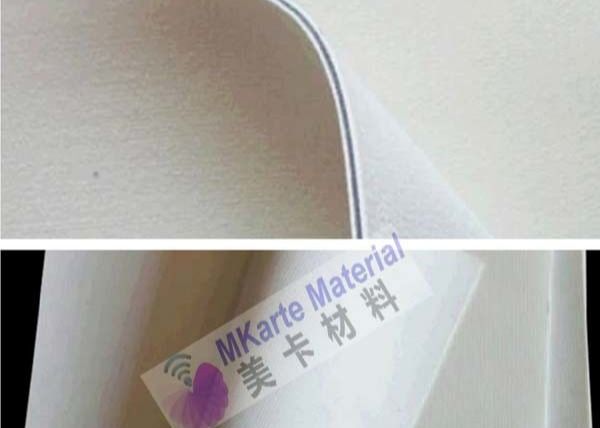

Smart Card Laminating Rubber Cushion Pad For Laminating Plastic Cards 2



In Plywood Cases

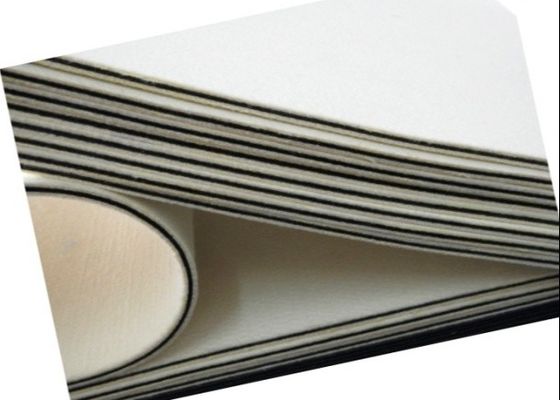

Smart Card Laminating Rubber Cushion Pad For Laminating Plastic Cards 3
