Woolen Felt Cushion Laminated Pad 80 N/Mm Adhesion For Hot Press Process

Woolen Felt Cushion Laminated Pad 80 N/Mm Adhesion For Hot Press Process

Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MRP-2

Payment & Shipping Terms:

Minimum Order Quantity: 100 sheets
Price: Negotiable
Packaging Details: In standard export carton or strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport
Delivery Time: 5-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 10000 Square Meters per Month
Get Best Price Contact Now

Detail Information

Normal Size: A4 , A3 Or Custom-made Size Thickness: 3.5 Mm
Rigidity: 55±5 Breaking Extensibility: 350 %
Middle Material: Black Silica Gel Heatproof Performance: 200 ℃
Facing Material: High-temperature Endurable Felt Adhesion: 80 N/mm
High Light:

laminated bearing pads

,

rubber cushion pads

Product Description

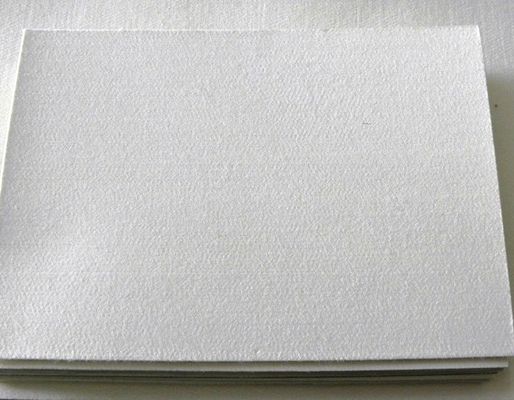

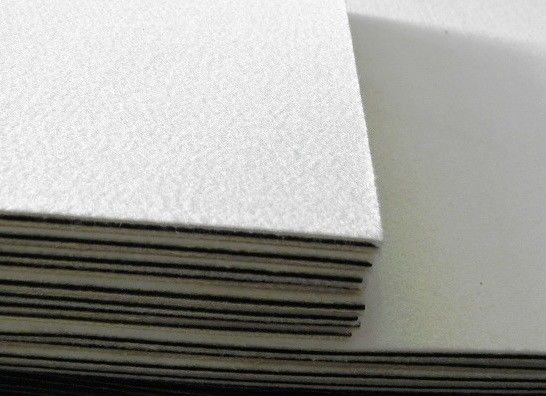

Laminated Pad of Woolen Felt Cushion For Hot-press Process in Plastic Card Laminator

Production Specification


1. Laminated Pad of Woolen Felt Cushion Introduction



One sheet laminating pad is used both at the bottom and top while lamination to ensure balance temperature and pressure . High temperature resistances , high pressure resistance , heat quickly and evenly , improve the card quality . Laminated pad has two types , silicone wool pad and a rubber cushion , etc.
Laminated Pad of Woolen Felt Cushion is suitable for manufacturing kinds of ISO standard cards, ID cards and smart cards. Raw materials are all for anti-high temperature and anti-high pressure. Meeting the requirements of laminating process, as the professional card consumables, they have been widely using for improving the production efficiency and saving energy because of the feature of thermal conductive fast and uniform. Have excellent bibulous performance, can effectively eliminate the risks of bubbles and watermarks on card surface, greatly improved the qualification rate of products, and with good cushioning properties, they can avoid the scratches linked to the hard touching between the heating plate and the trays, benefited to the long using life of above both.
Laminated Pad of Woolen Felt Cushion is designed for the lamination process for various plastic cards including bank card , credit card , and royalty card . It works with lamination steel plate in the plastic card lamination process .

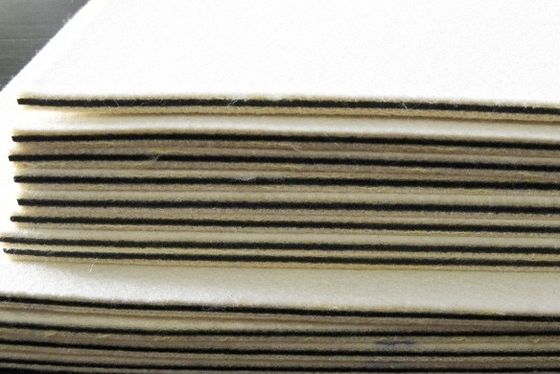

The structure of white silicon cushion pads is white heatproof silicon rubber layers on the surfaces with glass filer in the middle .


2. Laminated Pad of Woolen Felt Cushion Specification


Product Parameter :
1. Heatproof performance: 200℃
2. Tensile strength: 80 N/mm
3. Adhesion: 80 N/mm
4. Hardness SHORE A: 55±5
5. Thickness: 3.5 mm
6. Length and width: in sheet, 201*297 mm ( A4 ) , 310*480 mm ( A3 ) or custom-made size (size tolerance: ±1mm)


Facing material High-temperature endurable felt
Middle material Black silica gel
Rigidity 50±5
 Tensile strength(N/mm) 60
 Adhesion N/mm 2.5-4.5
 Heat-resistant t (℃) 200
 Breaking strength 80MPa
 Surface Finish Woolen surface


Key Features:
1. It is heatproof with great durability, which can well meet the technological requirements in plastic card lamination .
2. It can transfer heat quickly and evenly , which can improve production efficiency and energy conservation .
3. It has good performance of high temperature resistance and excellent elastic resilience .
4. It has good cushioning performance to avoid the damage and scratching resulting from direct contacting between laminator template and lamination steel plates , which can extend the service life of both lamination steel plates and template .

Detailed Product Description

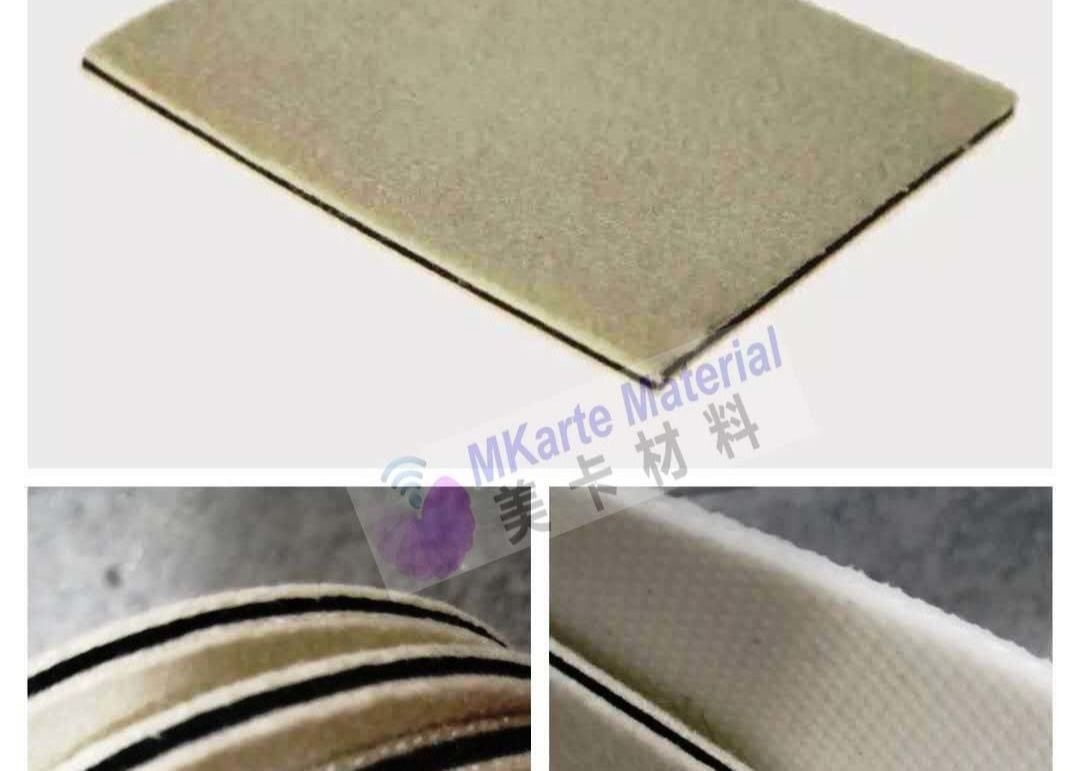

(1)  Woolen felt cushion
(2)  High tensile strength and tearing strength, h
eat resistant
up to 250
(3)  Long service life
(4)
Product Application: It is used for hot-press , widely used for card laminating or furniture , wooden doors of the pressure paste .
(5)  Product specification:  1)  thickness: 1.5- 3.5mm  2) maximum width: 3800mm with no joint  3) any length  4) color: white
Woolen Felt Cushion Laminated Pad 80 N/Mm Adhesion For Hot Press Process 0



Woolen Felt Cushion Laminated Pad 80 N/Mm Adhesion For Hot Press Process 1

The technical index:


 Model number MRP-2
 Normal Thickness 3.5 - 4.0 mm (Thickness tolerance: ±0.05mm)
 Pad size in sheet, A3, A4 or custom-made size
 Heat-resistant t ( ℃ ) 200
 Breaking strength 80 Mpa
 Hardness SHORE A 55±5
 Adhesive force  2.5 -4.5 N/mm
 Breaking extensibility 350 %
 Function Insulation Laminating woolen
Packaging box

 In standard export carton or strong plywood package with  proper soft   protection material inside, suitable for long distance for sea or air transport



3. Application of Laminated Pad of Woolen Felt Cushion


It is used for hot-press , widely used for card laminating or furniture , wooden doors of the pressure paste .

Woolen Felt Cushion Laminated Pad 80 N/Mm Adhesion For Hot Press Process 2


4. Packing of Laminated Pad of Woolen Felt Cushion


In standard export carton
Woolen Felt Cushion Laminated Pad 80 N/Mm Adhesion For Hot Press Process 3

In strong plywood package
Woolen Felt Cushion Laminated Pad 80 N/Mm Adhesion For Hot Press Process 4
