Glossy Surface PVC Magnetic Stripes PVC Coated Overlay
Product Details:
| Place of Origin: | China |
| Brand Name: | LUCKY China |
| Model Number: | MCO-MS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20000-30000 Sheets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | In standard export carton or strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport |
| Delivery Time: | 10- 25 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/A, D/P |
| Supply Ability: | 100000 Sheet per Week |
|
Detail Information |
|||
| Size: | By Reel Or By Sheet A4 , A3 Or Custom-made Size | Size Tolerance: | +/-0.5 Mm In Length And Width, +/-5% In Thickness |
|---|---|---|---|
| Color: | Clear (Transparent) | Package: | By Standard Export Wooden Case Or As Per Customer Requirements |
| Magnetic Stripe Feature: | HICO Standard Width 12.7mm, Black Color, Peelable Transfer Model | Material: | PVC |
| Production Process: | It Can Be Directly Laminated With PVC Printing Sheet | Normal Thickness: | 0.04mm，0.05mm，0.06mm，0.08mm，0.10mm |
| High Light: | abrasion resistant overlay,clear overlay sheets |
||
Product Description

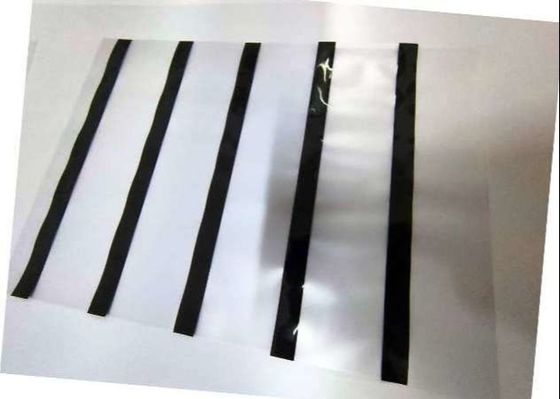

Hico Magnetic Stripes Coated Overlay Sheet For Plastic Card Lamination
Production Specification
| 1. Hico Magnetic Stripes Coated Overlay Sheet Introduction |
Hico Magnetic Stripes Coated Overlay Sheet is applied with standard magnetic stripe. It applies the high-quality magnetic stripe made by LUCKY China . It can be directly laminated with the printing sheets in the card laminator before punched into standard magnetic card. It features high adhesion , no color change and deformation with long aging life after the process of lamination .

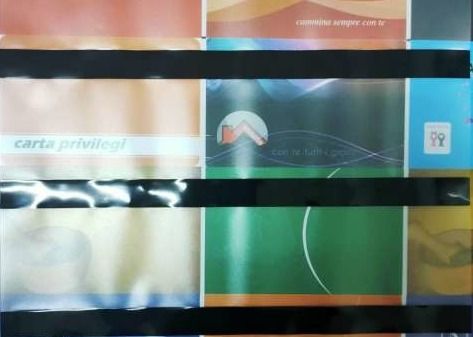

Hico Magnetic Stripes Coated Overlay Sheet is used as an outer layer on the printed PVC sheets in card lamination. It simplifies the card making process and provides high bonding strength. It efficiently prevents the cards from scratching or cracking , and cuts down the waste rate in production.
Using method: cover the printed plastic sheets and then laminate together.
Steps to make cards:
1. Put printing core and two overlays together , then put into the laminator . ( the laminating temperature and time is determined as per the instruction of the machine ) . Please be noticed that all glue sides of both PVC sheets and Overlays are put inward .
2. Tlamination lasts 10-15 minutes . The pressure is 6-8Mpa. The temperature is 120-140°C.
3. Cutting the card.
Technical Note :
In manufacturing process, it can be directly laminated with PVC printing sheet, which will simplify the fabrication process and save time, and also the product's adhesive strength is high.
| 2. Hico Magnetic Stripes Coated Overlay Sheet Specification |
Product Parameter :
1.Size: by reel or by sheet, A4, A3 or as per customer requirements
2. Coated overlay thickness range in mm: 0.04,0.05,0.06,0.08,0.10
3. Magnetic stripe feature: HICO/LOCO, standard width 12.7mm, black color, Peelable transfer model, Brand: LUCKY
4. Size tolerance: +/-0.5 mm in length and width, +/-5% in thickness.
5. Color : transparent with one-side glue coating
6. Length and width: in sheet, 201*297 mm ( A4 ) , 310*480 mm ( A3 ) or custom-made size (size tolerance: ±1mm)
7. Package method: 100/200 sheets per bag or as per customer requirements.
8. Storage condition: Sealed, moisture-proof, room temperature under
Specifications:
| Product name | Hico Magnetic Stripes Coated Overlay Sheet For Plastic Card Lamination |
| Common size | A4, 210x297mm (A3, customized ) |
| Thickness | 0.08mm(0.04mm and 0.10mm are available) |
| Appearance | transparent |
| Coated | glue on back |
| Laminating temperature | 110-150℃ |
| Storage | -10~35℃, sealed, moisture-proof |
| Shelf life | 2 years |
| Packing | 100pcs/bag, 4000pcs/carton |
| Carton dimensions | 450x340x190mm |
| Gross weight | 28kg |
Detailed Product Description

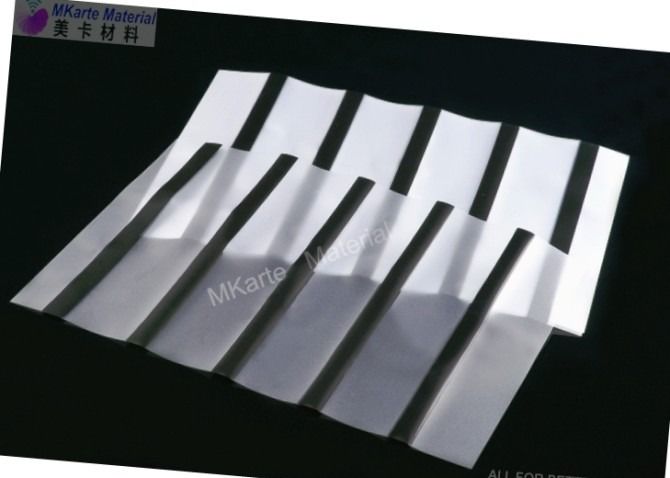

Coated overlay with magnetic strip hico 2750 oe or loco 360oe , used for card making and laminating ,one side is with magnetic strip,another side for laminating.
1. It has strong adhesive effect
2. it apply to most of the bank card and smart card lamination.
3. Yellow resistance
4. Magnetic strip is not easy to peel off .
The technical index:
| Model number | MCO-MS |
| Normal Thickness | 0.04 mm,0.05mm,0.06mm ,0.08mm ,0.10mm |
| Size | Sheet size or Roll size, any size as your requirement |
| Color | Clear (Transparent) |
| Glue Coated | Yes with glue |
| Application | Magnetic Card Making |
| Type | Hot press |
| Advae | Waterproof, Moistureproof, Customized layout |
| Packaging box |
In standard export carton or strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport |
| 3. Application of Hico Magnetic Stripes Coated Overlay Sheet |
In manufacturing process, it can be directly laminated with PVC printing sheet, which will simplify the fabrication process and save time.
| 4. Packing of Hico Magnetic Stripes Coated Overlay Sheet |
In standard export carton and plywood pallet
