Laser Cutting Any Shape PC Plastic Sheet
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MUO-PC-LE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30000 sheets or 2 tons |
|---|---|
| Price: | Negotiable |
| Packaging Details: | By reel or 500 sheets per bag, 4 bags per paper carton and with standard export carton, and the cartons are piled up and firmly fixed on solid plywood pallets |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 million square meters or 3 million tons per month |
|
Detail Information |
|||
| Character: | Great Image Of Laser Etching Technology Support, Apply To Identity Cards With Anti-fake Requirements | Common Thickness: | 0.04mm , 0.05mm，0.06mm，0.08mm，0.10mm |
|---|---|---|---|
| Break Strength (%) -ISO527-3: | ≧60(MD/CD) | Tensile Strength (Mpa) -ISO527-3: | ≧50(MD/CD) |
| Normal Size: | By Sheet Or Reel, A4, A3 Or As Per Customer Requirements | Thermal Shrinkage: | ＜1.0 % |
| Packing: | PE Film Inside + Carton Box +Pallet | Coating Availability: | No Coatings On Both Sides |
| High Light: | clear polycarbonate sheet,polycarbonate transparent sheet |
||
Product Description

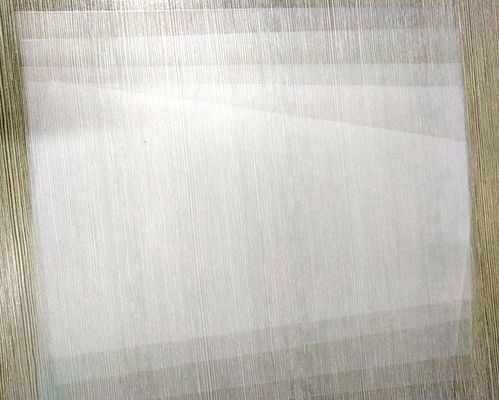

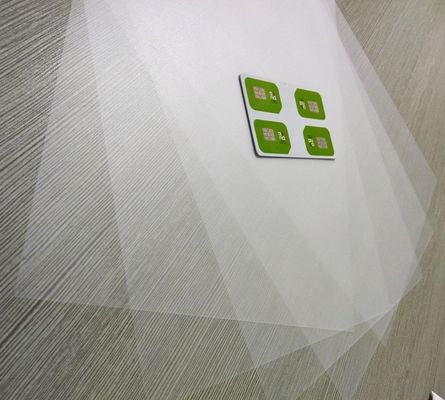

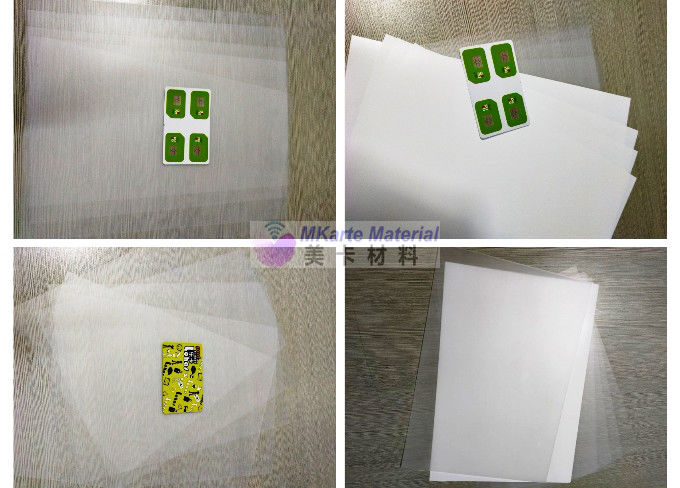

Transparent Polycarbonate PC Overlay PC Plastic Sheet For Laser Engraved Card Production
Production Specification
| 1. Transparent Polycarbonate PC Overlay PC Plastic Sheet For Laser Engraved Card Production Introduction |
Transparent Polycarbonate PC Overlay PC Plastic Sheet For Laser Engraved Card Production is specially produced for PC card body lamination with printed sheets. It has such good features like strong lamination adhesion, excellent tensile strength, wear resistance and high temperature resistance. It is widely used in such cards as anti-fake IC cards, driving license card, transportation card and passport etc.
Transparent Polycarbonate PC Overlay PC Plastic Sheet For Laser Engraved Card Production has many special characteristics that other engineering plastics don’t contain, due to the flexible carbonate group and the rigid benzene ring in its molecular structure. Therefore it’s widely used. Due to the specialty in its structure, PC has a range of unique advaes such as excellent light transmittance, relatively high glass transition temperature, desirable chemical modification, easy for physical modification, excellent impact toughness, creep resistance, electrical in insulation and weathering resistance.
PC overaly and sheets that made from polycarbonate have a wide range of temperature (-30~120℃), dimensional stability, excellent comprehensive properties and easy to process, therefore they are very widely used.
| 2. Transparent Polycarbonate PC Overlay PC Plastic Sheet For Laser Engraved Card Production Specification |
Product details :
Transparent Polycarbonate PC Overlay PC Plastic Sheet For Laser Engraved Card Production which is for PC card making ,this material has under mentioned advaes :
1. Excellent strength and wear-resisting.
2. High temperature and low temperate resistance.
3. Perfect application for laser engraving.
4. Environment-friendly material.
5. Longer service life.
6. Perfect image of laser etching technology support, apply to identity cards with anti-fake requirements
| Technical parameters | |||
| Item | Standard Value | ||
|
Thickness (mm) |
0.04-0.10 ( ±5%) | ||
| Surface | Matt/Matt, flat, no defect, no dust. | ||
| Tensile Strength (Mpa) -ISO527-3 | ≧50(MD/CD) | ||
| Break Strength (%) -ISO527-3 | ≧60(MD/CD) | ||
|
Folding Capacity
|
Thickness <0.25mm, ≧13 | ||
| Thickness ≧0.25mm,≧11 | |||
| Light Transmittance (%) | ≧80 | ||
| Haze (%) | ≦ 90 | ||
| Surface Tension(Dynes/cm) -ISO 8296-2003 | ≧34 | ||
|
Heating Shrinkage (%) (135℃±2,10min) |
Thickness≤ 0.175mm | MD | ≦2.5 |
| CD | ≦0.5 | ||
| Vicat Softening Temperature(℃) - ISO 306-1994 | 150±3 | ||
| Coating availability | No coatings on both sides | ||
Parameters :
1. Size: in reel or in sheet as 210*297mm ( A4 ) , 310*480mm ( A3 ) or as per customer requirements
2. Normal thickness in mm: 0.04,0.05,0.06,0.08,0.10
3. Color : Transparent or without coating on surface.
4. Package method : in reel ,or 500 sheets per bag, 4 bags per carton or customized, and the cartons are piled up and firmly fixed on solid plywood pallets
5. Storage condition : Sealed, moisture-proof, room temperature under 40℃ , Keep it horizontally, avoid heavy pressing and direct sunlight .
6. Laser engraving performance: can be laser engraved
| Product name | Transparent Polycarbonate PC Overlay PC Plastic Sheet For Laser Engraved Card Production |
| Color | Transparent or clear |
| Thickness range | 0.04- 0.10mm |
| Vicat point ℃ | 148 |
| Tensile strength | 60 Mpa |
| Tear strength | >30 |
| Density | 1.2g/cm³ |
| Thermal shrinkage | ＜1.0 % |
| Roughness value | Ra0.58-3.2 |
| Glue coating | With no coating on both sides |
| Packing | PE Film inside + Carton box +Pallet |
| Advae |
Excellent strength and abrasion resistance, high and low temperature resistance; suitable for card body performance and anti-counterfeiting technology requirements, such as id card, driving license, e-passport, etc |
Transparent Polycarbonate PC Overlay PC Plastic Sheet For Laser Engraved Card Production is known as the new reliable material for PC card body production. It has such features as high vicat point and cannot be used for laser engraving. The PC sheet is perfect for making ID card, E-Passport etc.
Features as below:
Secure layered construction
Polycarbonate cards are made of layers of polycarbonate films, laminated into a single solid layer. Unlike other card materials, lamination can be carried out without the use of an adhesive. The films cannot be subsequently separated without destroying the card enhancing protection against tampering and fraud. Chips and antennas can be securely embedded in the layered films of a polycarbonate card.
Long-term performance
Polycarbonate overlay also offer excellent mechanical and thermal properties. They are resistant to heat up to 145°C and do not warp after extended exposure to high temperatures. Polycarbonate retains its stiffness even at low temperatures.
Polycarbonate is used to make CDs, bulletproof glass, water bottles and, increasingly, cards and secure passport laminates. Stronger and more expensive than PVC, its durability makes polycarbonate an ideal material for cards intended for a service life of ten years or more, such as national ID, passports and driving licenses. When finally incinerated for disposal, polycarbonate mainly produces water and carbon dioxide.
Personalization
Polycarbonate cards can benefit from the high-cost but virtually tamper-proof personalization technique of laser engraving.
| Feature | Testing method | Unit | Testing value |
| Physics | |||
| Specific gravity | ASTM D792 | G/cm³ | 1.2 |
| Average water absorption | ASTM D570 | % | 0.35 |
| Mechanical | |||
| Tensile strength | ASTM D882 | Psi | 8800 |
| ISO R1184-1987 | Mpa | 60 | |
| Ultimate elongation | ASTM D882 | % | >90 |
| Impact strength | JIS-k6745 | In-ibs | 120 |
| Tear strength | ASTM D1922 | G/mil | >30 |
| Temperature resistance | |||
| Vicat softening point | ASTM D1525 | ℃ | 128 |
| Thermal shrinkage | D1204 | % | <1.0 |
| Electrical | |||
| Dielectric strength | ASTM D149 | V/mil | 1700 |
| Volume Insulation | ASTM D257 | Ohm.m | 10 16 |
| Surface Insulation | ASTM D257 | Ohm | 10 15 |
| Roughness value | |||
| Medium sand | um | Ra3.45 | |
| Fine sand | um | Ral.5~2.1 | |
| Matte | um | Ra0.58 | |
| Feature | unit | limit | |
| Thickness tolerance | % | >0.5±0.006mm | |
| ≤0.5 ±0.004mm | |||
| 3. Application of Transparent Polycarbonate PC Overlay PC Plastic Sheet For Laser Engraved Card Production |

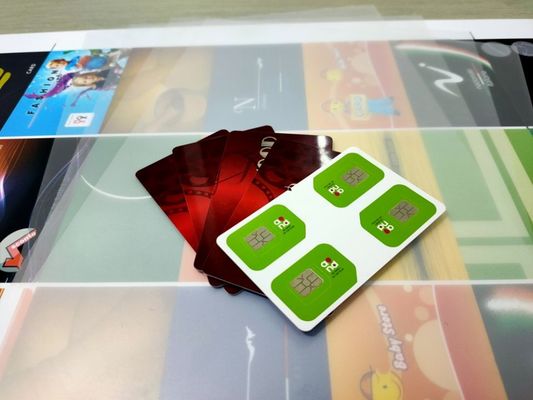

It is widely used in such cards as anti-fake IC cards, driving license card, transportation card and passport etc.
| 4. Packing of Transparent Polycarbonate PC Overlay PC Plastic Sheet For Laser Engraved Card Production |
In standard export carton and are packed on plywood pallet
