200℃ Silicon 3mm Rubber Cushion Pad For Card Lamination

200℃ Silicon 3mm Rubber Cushion Pad For Card Lamination

Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MRP-1

Payment & Shipping Terms:

Minimum Order Quantity: 50 pcs
Price: Negotiable
Packaging Details: packed with PE bags and paper carton
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 10000 Square Meters per Month
Get Best Price Contact Now

Detail Information

Style: Plain Thickness: 3mm
Hardness SHORE A: 55±5 Heatproof Performance: 200℃
Tensile Strength: 80 N/mm Adhesion: 80 N/mm
High Light:

3mm rubber cushion pad

,

200℃ rubber cushion pad

,

3mm silicon cushion pad

Product Description



3.0mm Thickness High-adhesion White Silicon Rubber Cushion Pad For Card Lamination

(also named as : lamination pad, rubber pad, card laminator cushion pad, silicon rubber pad, plastic card lamination pad, card material)



Production Specification and Introduction:



3.0mm Thickness High-adhesion White Silicon Rubber Cushion Pad For Card Lamination is designed for the lamination process for various plastic cards including bank card , credit card , and royalty card . It works with lamination steel plate in the plastic card lamination process .

The structure of white silicon cushion pads is white heatproof silicon rubber layers on the surfaces with glass filer in the middle .



1. High-adhesion White Silicon Rubber Cushion Pad For Card Lamination - Features



Key Features:

1. It is heatproof with great durability, which can well meet the technological requirements in plastic card lamination .

2. It can transfer heat quickly and evenly , which can improve production efficiency and energy conservation .

3. It has good performance of high temperature resistance and excellent elastic resilience .

4. It has good cushioning performance to avoid the damage and scratching resulting from direct contacting between laminator template and lamination steel plates , which can extend the service life of both lamination steel plates and template .

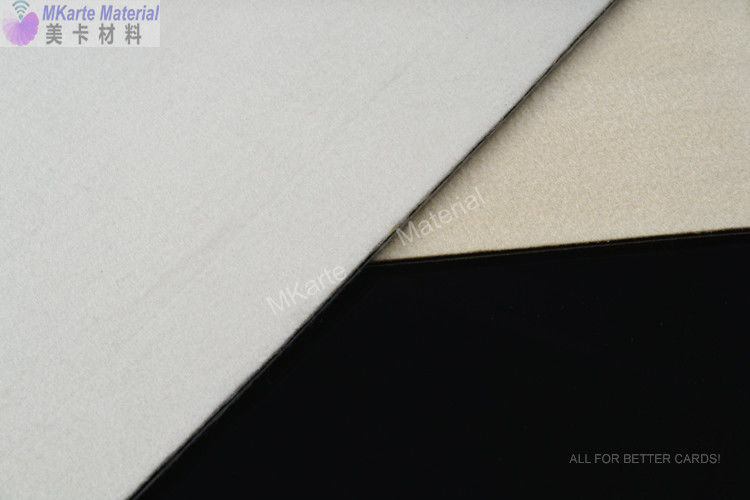

200℃ Silicon 3mm Rubber Cushion Pad For Card Lamination 0

2. High-adhesion White Silicon Rubber Cushion Pad For Card Lamination - Description  and Technical Items

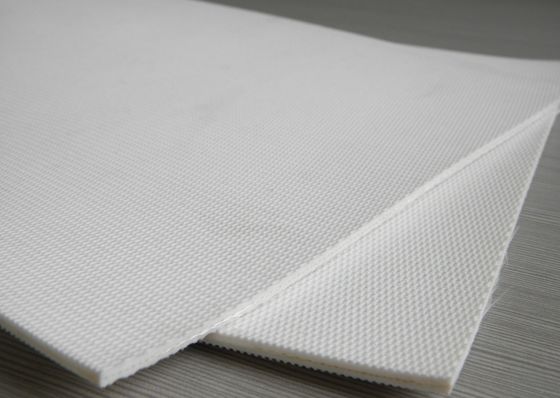

200℃ Silicon 3mm Rubber Cushion Pad For Card Lamination 1

Detailed  Description



(1)  Silicon rubber cushion
(2)  High tensile strength and tearing strength,
(3)  Long service life,
(4)  Heat resistant
up to 250

(5)  Product Application: It is used for hot-press , widely used for card laminating or furniture , wooden doors of the pressure paste .

(6)  Product specification:  1)  thickness: 1.5- 3.5mm  2) maximum width: 3800mm with no joint  3) any length  4) color: white







Technical Items:



 Model number  MRP-1
 Thickness  1.5- 3.5mm (Thickness tolerance: ±0.05mm)
 Pad size  in sheet, A3, A4 or custom-made size
 Breaking strength  80 Mpa
 Hardness SHORE A  55±5
 Adhesive force N/mm  2.5
 Breaking extensibility  350




3. High-adhesion White Silicon Rubber Cushion Pad For Card Lamination - Technical Parameters




 Parameters :



1. Heatproof performance: 200℃

2. Tensile strength: 80 N/mm

3. Adhesion: 80 N/mm

4. Hardness SHORE A: 55±5

5. Thickness: 3mm

6. Length and width: A4, A3 or custom-made size (size tolerance: ±1mm)

7.Packaging box: Strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport


4. High-adhesion White Silicon Rubber Cushion Pad For Card Lamination - Application




It has good cushioning performance to avoid the damage and scratching resulting from direct contacting between laminator template and lamination steel plates , which can extend the service life of both lamination steel plates and template .

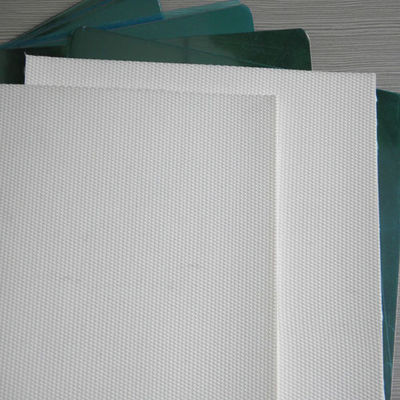

200℃ Silicon 3mm Rubber Cushion Pad For Card Lamination 2






5. High-adhesion White Silicon Rubber Cushion Pad For Card Lamination -Package



Packaging box:

Strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport

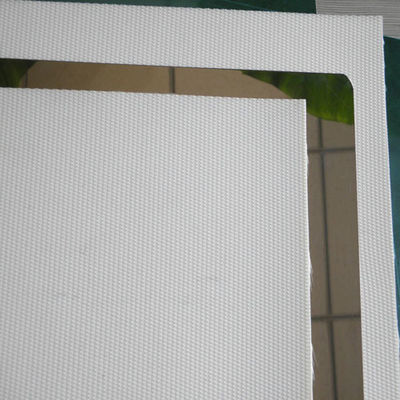

200℃ Silicon 3mm Rubber Cushion Pad For Card Lamination 3
