Heatproof Silicon Rubber Cushion 80Mpa Laminated Pad

Heatproof Silicon Rubber Cushion 80Mpa Laminated Pad

Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MRP-2

Payment & Shipping Terms:

Minimum Order Quantity: 50 pcs
Price: Negotiable
Packaging Details: packed with PE bags and paper carton
Delivery Time: 5-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A,
Supply Ability: 8 thousand pieces per month
Get Best Price Contact Now

Detail Information

Material: Polyester / Cotton Shape: By Sheet
Breaking Strength: 80Mpa Packaging: With Standard Packing Or You Requirement
Key Feature: It Is Heatproof With Great Durability Loading Port: Shanghai Or Other Chinese Port
High Light:

Silicon Rubber Cushion Laminated Pad

,

Heatproof Laminated Pad

,

80Mpa Laminated Pad

Product Description

Heatproof Customized Size White Silicon Rubber Cushion Laminated Pad



1.Technical Specification of Heatproof Customized Size White Silicon Rubber Cushion Laminated Pad

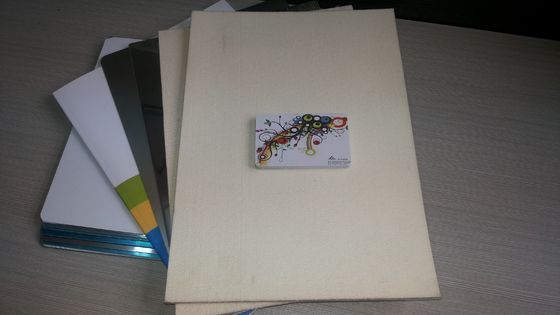

White Silicon Rubber Cushion Pad is designed for the lamination process for various plastic cards including bank card, credit card, and royalty card. It works with lamination steel plate in the plastic card lamination process.

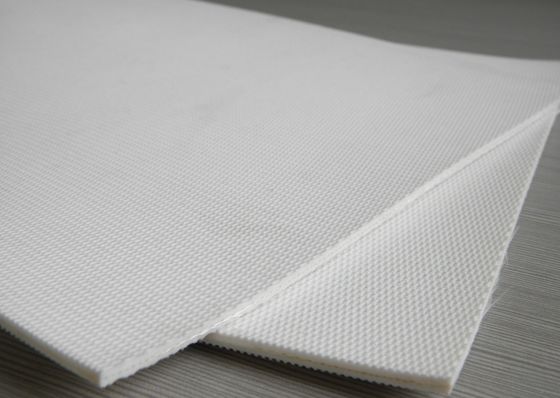

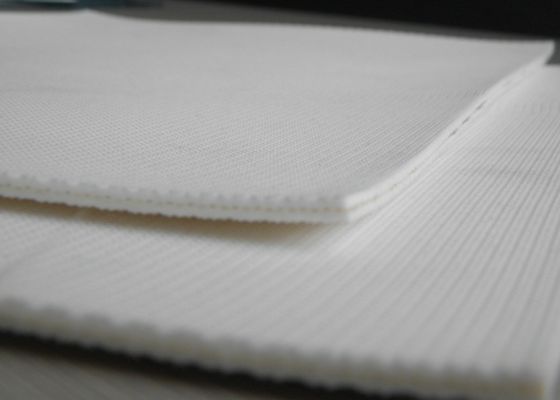

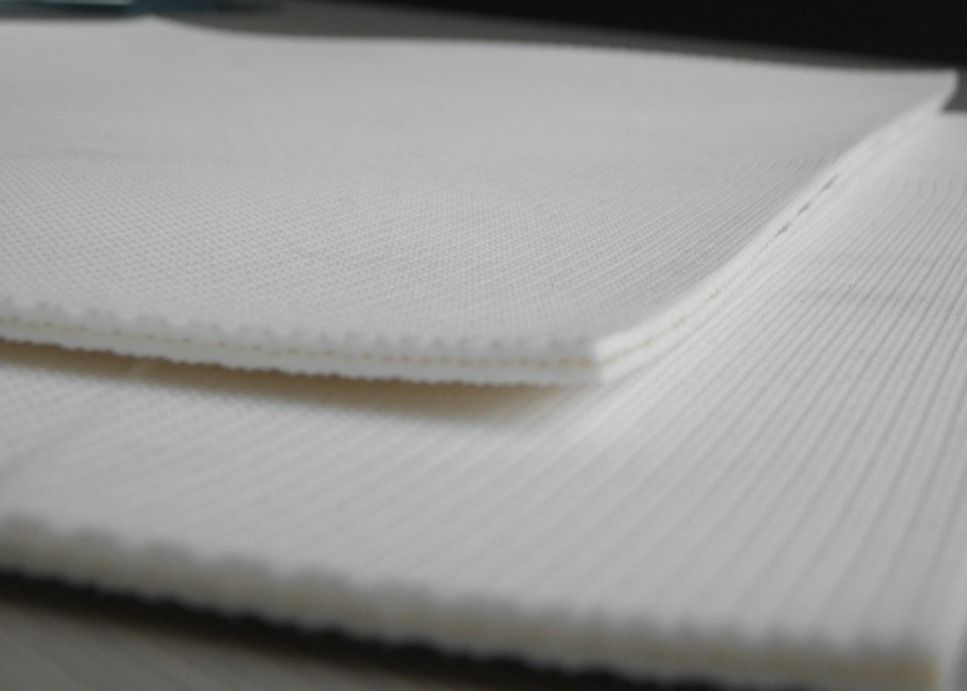

The structure of white silicon cushion pads is white heatproof silicon rubber layers on the surfaces with glass filer in the middle.

Key Features:

1. It is heatproof with great durability, which can well meet the technological requirements in plastic card lamination.

2. It can transfer heat quickly and evenly, which can improve production efficiency and energy conservation.

3. It has good performance of high temperature resistance and excellent elastic resilience.

4. It has good cushioning performance to avoid the damage and scratching resulting from direct contacting between laminator template and lamination steel plates, which can extend the service life of both lamination steel plates and template.

Technical Parameters:

1. Heatproof performance: 200℃

2. Tensile strength: 80 N/mm

3. Adhesion: 80 N/mm

4. Hardness SHORE A: 55±5

5. Thickness: 3mm

6. Length and width: A4, A3 or custom-made size (size tolerance: ±1mm)

Heatproof Silicon Rubber Cushion 80Mpa Laminated Pad 0



2.Characters of Heatproof Customized Size White Silicon Rubber Cushion Laminated Pad

Detailed Product Description

(1) silicon rubber cushion
(2) high tensile strength and tearing strength,
(3) long service life,
(4) heat resistant

Product use: It is used for hot-press, widely used for furniture, wooden doors of the pressure paste.

Product features: high tensile strength and tearing strength, even thickness, long service life, heat resistant up to 250.

Product specification: 1) thickness: 1.5-2.5mm 2) maximum width: 3800mm with no joint 3) any length 4) color: red

The technical index:

Model number

Breaking strength

Mpa

adhesive force

N/mm

Hardness(Shore A) Breaking extensibility % color
MRP-2 80 2.5 55±5 350 white

Heatproof Silicon Rubber Cushion 80Mpa Laminated Pad 1



3.Application of Heatproof Customized Size White Silicon Rubber Cushion Laminated Pad

Laminating pads are suitable for manufacturing kinds of ISO standard cards, ID cards and smart cards.

Product parameter:

Facing material High-temperature endurable felt
Middle material Black silica gel
Rigidity 50±5
Tensile strength(N/mm) 60
Adhesion N/mm 4.5
Heat-resistant t (℃) 200
Color White

Heatproof Silicon Rubber Cushion 80Mpa Laminated Pad 2
