1mm Glossy Laminated Steel Plate A4 A3 A3+Size
Product Details:
Place of Origin: | China |
Brand Name: | MK |
Model Number: | MSP-M |
Payment & Shipping Terms:
Minimum Order Quantity: | 200 pcs |
---|---|
Price: | USD 5 -18 per sheet or negotiable |
Packaging Details: | Export standard package.Strong plywood box with soft protection material inside |
Delivery Time: | 10-15 working days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/P |
Supply Ability: | 40 thousand pieces per month |
Detail Information |
|||
Material: | 430BA Stainless Steel Plates | Surface Finish: | Glossy,matte,silk/satin,pattern Finish |
---|---|---|---|
Thickness: | 0.4mm.0.5mm0.6mm, 0.8mm And 1.0mm | Dimension Tolerance: | ±1mm For Length And Width. |
Thermal Transmission: | 0.04cal/℃.cm.sec At 20℃ | Surface Roughness: | Slight Matte Finish (Ra Range 0.3-0.5μm) |
Package: | Around 200-300pcs Per Plywood Case Accroding To The Size | Finish Time: | About 10days After Receiving Prepayment |
High Light: | 1mm laminated steel plate,glossy laminated steel plate,a4 laminated steel sheet |
Product Description
A4,A3,A3+size Lamination Steel Plate(glossy,matte,silk,pattern finish) For Smart card production
1. A4,A3,A3+size Lamination Steel Plate(glossy,matte,silk,pattern finish) - Introduction
Steel plate imported from the top raw material supplier, which has the advae of good conducting of heat, resisting pressure, high quality mirror. By our steel plates you can produce the international standard card. With more than 10 years of experience of marketing and marketing operation, we have export the best quality steel plates for all our widely card making customers.
Slight Matte Finish Lamination Steel Plate MSP-M have matte finish surfaces on both sides and are designed for laminating plastic card sheets in the cad laminator. It can ensure perfect plastic card surface finish after lamination.
Key Features:
1). The two sides are covered with protection foils (blue thin films) to ensure good protection on both surfaces. There is no glue left after the foil is removed before the plate is used at the first time.
2). There are no scratches, dents, stripes shadows and dust on plate surfaces.
3). The edges are smooth and deburred with the round curved corners.
4). Two sides are made matte in the same quality.
5). After lamination, the plates are not sticking to the laminated plastic sheets.
Plate size(L×W): A4, A3 or custom-made size
Plate thickness: 0.6mm, 0.8mm (Thickness tolerance: ±0.05mm)
Dimension tolerance: ±1mm for length and width.
Plate flatness level: maximum 1 mm
Surface roughness value range: 0.3-1.5um
Slight Matte plate (Ra0.3μm-0.5um)
Heavy Matte plate (Ra1.3-1.5um)
Glossy plate surface glossiness: over 800 GU at 20° (both sides)
Surface hardness: HRC80±20
Thermal transmission: 0.04cal/℃.cm.sec at 20℃
Packaging box: solid plywood carton with soft cushion protection inside.
2. A4,A3,A3+size Lamination Steel Plate(glossy,matte,silk,pattern finish) - Parameters
Technical Parameters:
Plate size(L×W) | A4, A3 or custom-made size |
Plate thicknes | 0.6mm, 0.8mm (Thickness tolerance: ±0.05mm) |
Dimension tolerance | ±1mm for length and width. |
Surface roughness | Slight matte finish (Ra range 0.3-0.5μm) |
Thermal transmission | 0.04cal/℃.cm.sec at 20℃ |
Packaging box | solid plywood carton with soft cushion protection inside |
surface roughtness Ra value | 0.3-0.5μm |
Thickness range | 600 or 800 micron |
Dimension tolerance | ±1mm for length and width |
Edge state | smooth and deburred with the round curved corners |
3. A4,A3,A3+size Lamination Steel Plate(glossy,matte,silk,pattern finish) - Application
Detailed Product Description:
1). Glossy finish, matte finish, mirror finish,silk(fine silk and rough silk),pattern finish etc.
2). Size & thickness on request
3). High-grade stainless stee
Features:
1). Card laminator Accessories
2). 800 Micron thickness
3). Characteristic: heat-resistant, high elasticity
Card picture after laminated by pattern plates
1).Glossy/Mirror finish steel plates
normal mirror effect, for planographic code and inkjet code.

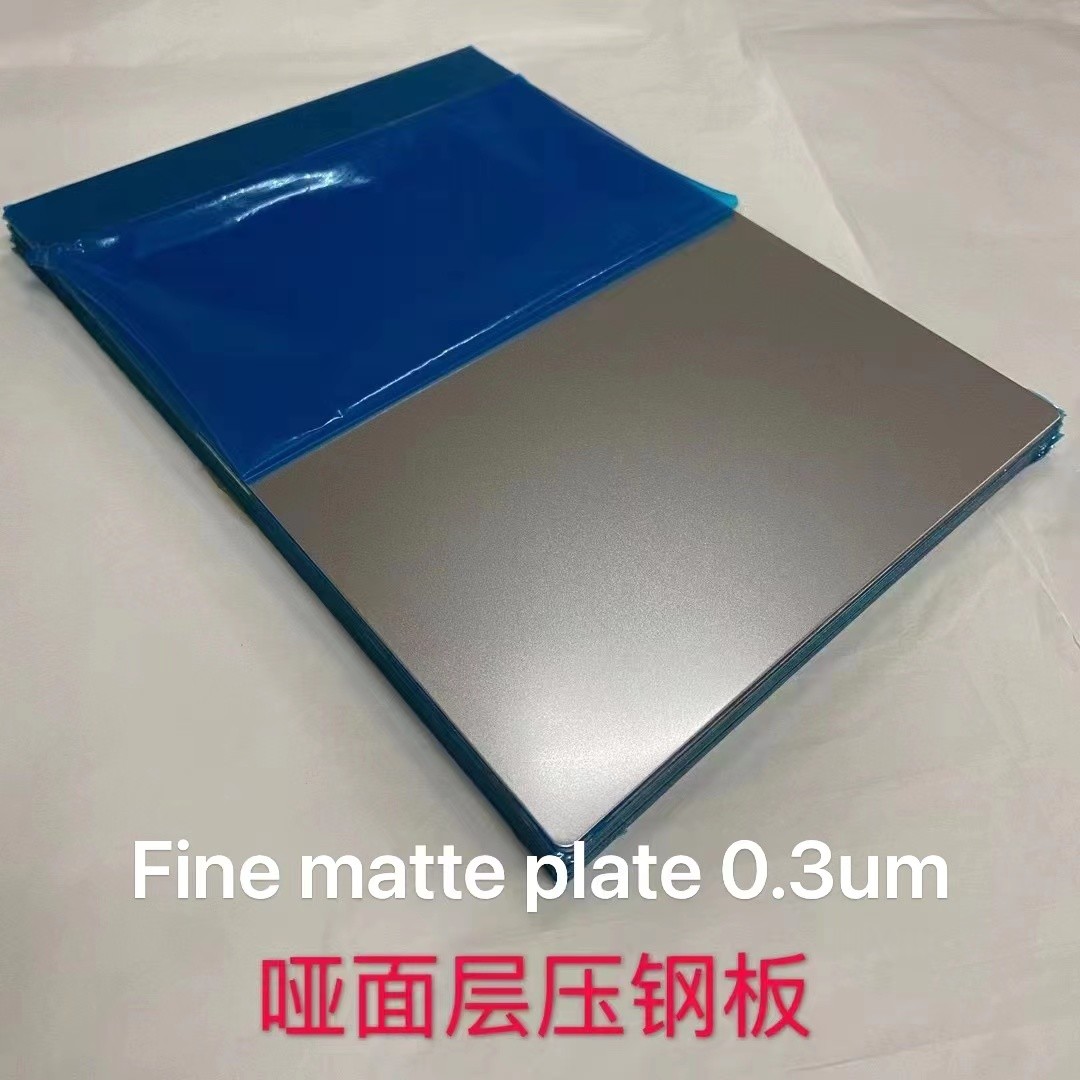

2).Matte steel plates-Fine matte(Ra:0.25-0.5um)
on the surface there are tiny lights, thin and lubricious, for planographic code and inkjet code.
3).Coarse matte steel-Heavy matte(Ra:1.0-2.0um)
Platoon lights on the surface, too coarse for planographic code.
4).Silk-Satin finish plate for RFID inlay production(fine silk and fine silk)
no lights on the surface, moderate coarse.
5).Pattern steel plates
There are kinds of pattern for plates
Size: 100mm*120mm;210mm*297mm;210mm*320mm;325mm*480mm;340mm*500mm and customized due to customer’s request
Thickness: 0.4 mm 0.5mm,0.6mm,0.7mm, 0.8mm, 1.0mm for steel plate
Backed by a team of adroit professionals, we are actively engrossed in supplying the top-of-the-line A4 and A3 Laminating Pattern Steel Plates for Card Making that is popularly known among our customers owing to its unique quality and resilience. These patterns steel plates are made in our ultra-advanced production site with the help of pioneering in-house tools and techniques. Due to its longevity and reliable performance, we are seeing a huge demand for the product in the marketplace.
Size:100mm*120mm;210mm*297mm;210mm*320mm;325mm*480mm;340mm*500mm
Thickness:0.5mm, 0.6mm,0.7mm, 0.8mm, 1mm
4. A4,A3,A3+size Lamination Steel Plate(glossy,matte,silk,pattern finish) - Packing
Packing:Wood Tree Texture Double Side Laminating Steel Plate for Card Making / Stainless Steel Plate Press on Cards in standard export wooden case
