Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MSP-M

Payment & Shipping Terms:

Minimum Order Quantity: 200 pcs
Price: USD 5 -18 per sheet or negotiable
Packaging Details: Strong plywood box with soft protection material inside
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P
Supply Ability: 40 thousand pieces per month
Get Best Price Contact Now

Detail Information

Material: Matte Stainless Steel Plates Surface Finish: Matte Finish On Both Sides, Protected With Thin Films On Both Surfaces
Thickness: 0.6mm Or 0.8mm Package Method: Strong Plywood Box With Soft Protection Material Inside
High Light:

stainless steel laminate sheets

,

steel laminate sheets

Product Description

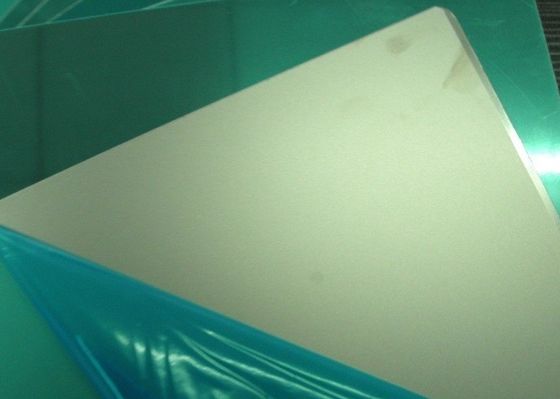

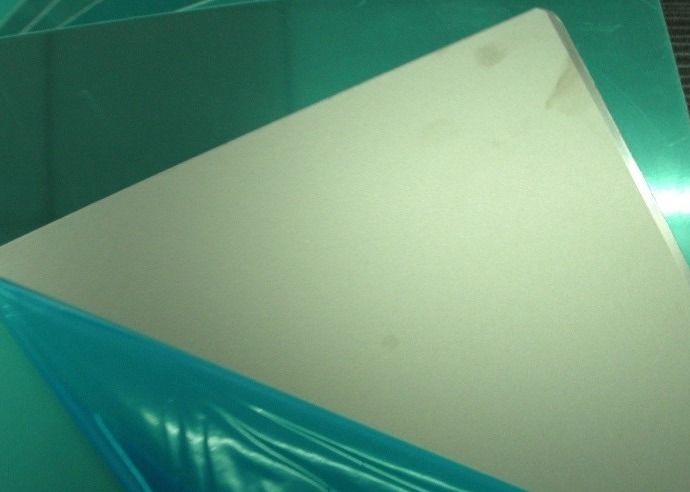

Matte Finish Steel Plate MSP-M for plastic card lamination



Matte Finish Lamination Steel Plate MSP-M have matte finish surfaces on both sides and are designed for laminating plastic card sheets in the cad laminator. It can ensure perfect plastic card surface finish after lamination.



Key Features:

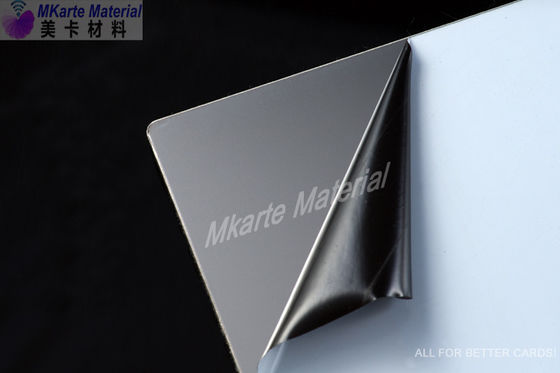

1. The two sides are covered with protection foils (blue thin films) to ensure good protection on both surfaces. There is no glue left after the foil is removed before the plate is used at the first time.

2. There are no scratches, dents, stripes shadows and dust on plate surfaces.

3. The edges are smooth and deburred with the round curved corners.

4. After lamination, the plates are not sticking to the laminated plastic sheets.

Decorative Laminated Steel Plates Matte Surface Finish On Both Sides 0



Technical Parameters:



Plate size(L×W): A4, A3 or custom-made size

Plate thickness: 0.6mm, 0.8mm (Thickness tolerance: ±0.05mm)

Dimension tolerance: ±1mm for length and width.

Plate flatness level: maximum 1 mm.m

Surface roughness: Matte finish (Ra range 0.3-1.5μm)

Thermal transmission: 0.04cal/℃.cm.sec at 20℃

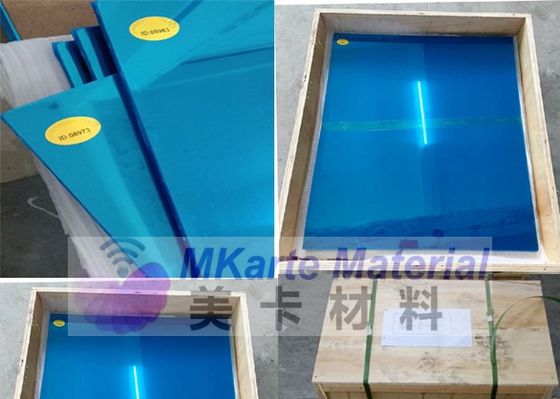

Packaging box: solid plywood carton with soft cushion protection inside.





surface roughtness Ra value     0.3-1.5μm
Thickness range 600 or 800 micron
Dimension tolerance ±1mm for length and width
Edge state  smooth and deburred with the round curved corners
