Galvanized Metal Laminate Steel Sheet Plate For Card Lamination Purpose
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MSP-M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | USD 5 -18 per sheet or negotiable |
| Packaging Details: | Strong plywood box with soft protection material inside |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 40 thousand pieces per month |
|
Detail Information |
|||
| Material: | Matte Stainless Steel Plates | Surface Finish: | Slight Matte Finish On Both Sides, Protected With Thin Films On Both Surfaces |
|---|---|---|---|
| Thickness: | 0.6mm Or 0.8mm | ||
| Highlight: | stainless steel laminate sheets,steel laminate sheets |
||
Product Description

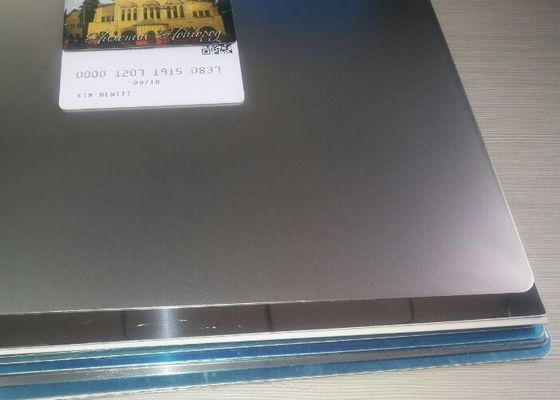

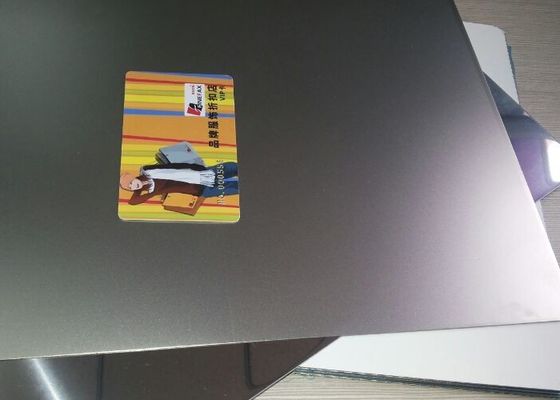

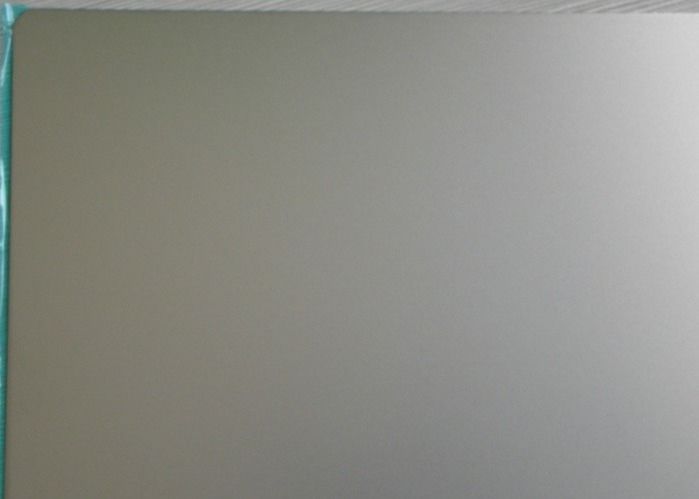

Slight Matte Finish Lamination Steel Plate MSP-M for plastic card lamination
Slight Matte Finish Lamination Steel Plate MSP-M have matte finish surfaces on both sides and are designed for laminating plastic card sheets in the cad laminator. It can ensure perfect plastic card surface finish after lamination.
Key Features:
1. The two sides are covered with protection foils (blue thin films) to ensure good protection on both surfaces. There is no glue left after the foil is removed before the plate is used at the first time.
2. There are no scratches, dents, stripes shadows and dust on plate surfaces.
3. The edges are smooth and deburred with the round curved corners.
Technical Parameters:
Plate size(L×W): A4, A3 or custom-made size
Plate thickness: 0.6mm, 0.8mm (Thickness tolerance: ±0.05mm)
Dimension tolerance: ±1mm for length and width.
Surface roughness: Slight matte finish (Ra range 0.3-0.5μm)
Thermal transmission: 0.04cal/℃.cm.sec at 20℃
Packaging box: solid plywood carton with soft cushion protection inside.
| surface roughtness Ra value | 0.3-0.5μm |
| Thickness range | 600 or 800 micron |
| Dimension tolerance | ±1mm for length and width |
| Edge state | smooth and deburred with the round curved corners |
