0.10-0.85mm Smart Card Material Plastic PVC Card Core Sheet For Printer
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MOP-W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20000 sheets or 2 tons |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100-200 sheets per PE bag, all the bags are firmly piled up and fixed on the solid plywood pallets |
| Delivery Time: | 10-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500k sheets per week |
|
Detail Information |
|||
| Tensile Strength Longitudinal: | ≥ 45 MPa | Tensile Strength Transverse: | ≥ 40 MPa |
|---|---|---|---|
| Vicat ℃: | 77±2 | Surface Tension: | ≥ 35 Dyne / Cm |
| Squareness: | ± 1 | Thickness Tolerance: | ± 5 % |
| High Light: | white polycarbonate sheet,id card material |
||
Product Description
Plastic PVC Card Core Sheet As Non-printed Middle Sheet Smart Card Materials
Production Specification
| 1. Plastic PVC Card Core Sheet As Non-printed Middle Sheet Smart Card Materials Introduction |
This kind of ordinary PVC sheet can be used for laminating, non-laminating, printing, coating and
cutting, such as membership cards and calendars.

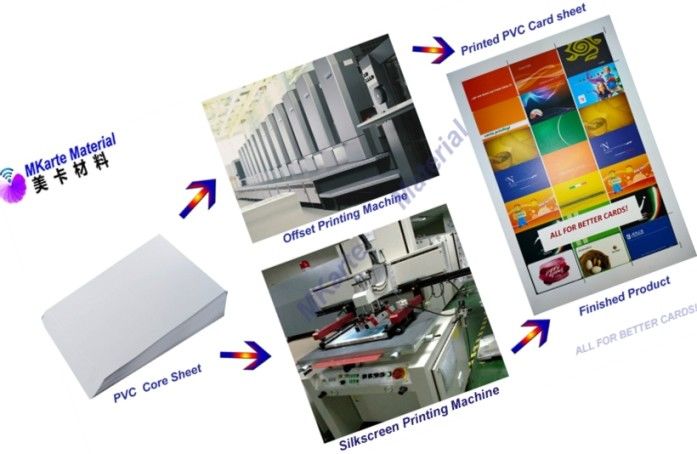

PVC Core Sheet as Non-printed Middle sheet Plastic Card Body Production Materials MOP series are designed for offset printer and silk screen printer use. They can also be used as non-printed middle core sheet. They are massively used by many card factories worldwide.
1) Suitable for the whole series of offset printer and silk screen printer.
2) High definition images.
3) Excellent ink adhesion with strong peeling strength after lamination.
4) No crack occurs on the printed images after lamination at high temperature.
| 2. Plastic PVC Card Core Sheet As Non-printed Middle Sheet Smart Card MaterialsSpecification |
Plastic PVC Card Core Sheet As Non-printed Middle Sheet Smart Card Materials with good ability of lamination and printing.
| Item | Unit | Value | |
| Thickness | mm | 0.10-0.85 | |
| Density | g/cm3 | 1.42 ±0.05 | |
| Tensile Strength | Horizontal | MPa | ≥44 |
| Vertical | ≥46 | ||
| Vicat 5kg | ℃ | 80±2 | |
| Surface Roughness | Ra | μm | 0.7~1.8 |
| Rz | 4.0~12.0 | ||
| Surface Dyne | dynes/cm | ≥34 | |
*Customer design can be accept.
Technical parameters:
1. Thickness: 0.12-0.76mm
2. Color: Milk White (MOP-W-NF model)/Snow White MOP-W-F model
3. Suitable printer models: The whole series of offset printer and silk-screen printers
4. Package method: 100-200 sheets per PE bag, all the bags are firmly piled up and fixed on the solid plywood pallets.
5. Storage condition: Sealed, moisture-proof, room temperature under 40℃
| Item | Index | |
| Tensile strength | Longitudinal MPa | ≥45 |
| Transverse MPa | ≥40 | |
| Vicat ℃ | 77±2 | |
| Surface Tension dyne / cm | ≥35 | |
| Heat shrinkage rate% 140℃ 10min | Transverse ≤5 | |
| Longitudinal ≥-10 | ||
| Squareness mm | ±1 | |
| Thickness tolerance % | ±5 | |
| Roughness μm | Ra,μm | 0.7~1.4 |
| Rz,μm | 4~9 | |
| 3. Application of Plastic PVC Card Core Sheet As Non-printed Middle Sheet Smart Card Materials |
Plastic PVC Card Core Sheet As Non-printed Middle Sheet Smart Card Materials is mainly used for making credit card. Such material can achieve telegraphing
(embossed), the material does not contain the substance for entering and modifying magnetic materials,
capable of being labeled with magnetic stripe and encapsulated module, usually, it is matched with
overlay film for use. PVC Bank Card Base is mainly used for bank, capable of making credit card, financial IC card.
| 4. Packing of Plastic PVC Card Core Sheet As Non-printed Middle Sheet Smart Card Materials |
In standard export carton and are packed on plywood pallet
