Strong Adhesion Level Pvc Overlay Film For Smart Card Production
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MCO-W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 tons |
|---|---|
| Price: | Negotiable |
| Packaging Details: | by reel or 500 sheets per bag / 4-8 bags per paper carton , or as per customer requirements . All the cartons are firmly piled up and fixed on the solid plywood pallet |
| Delivery Time: | 10-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3 million tons per month |
|
Detail Information |
|||
| Color: | Transparent With One-side Glue Coating | Package Method: | By Reel Or 500 Sheets Per Bag/4-8 Bags Per Paper Carton, Or As Per Customer Requirements |
|---|---|---|---|
| Specific Density: | 1.26 ±0.04 G / Cm3 | Size: | In Reel Or Sheet, A4, A3 Or As Per Customer Requirements |
| Normal Thickness: | 0.04，0.05，0.06，0.08，0.10mm | Peel Strength (90°, 300mm/min): | ≥ 6.0 N/cm |
| High Light: | white polycarbonate sheet,id card material |
||
Product Description

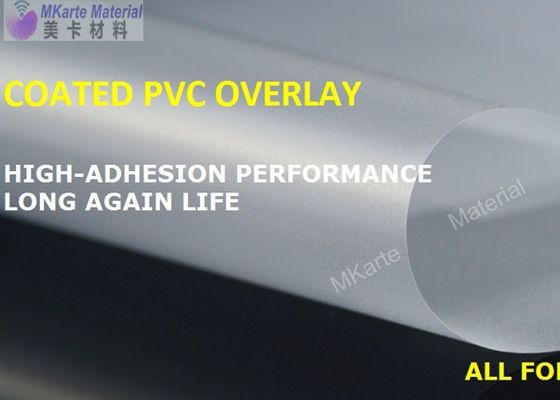

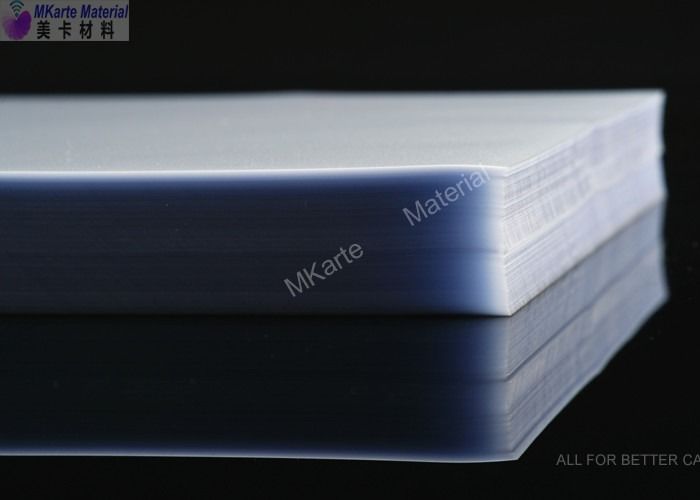

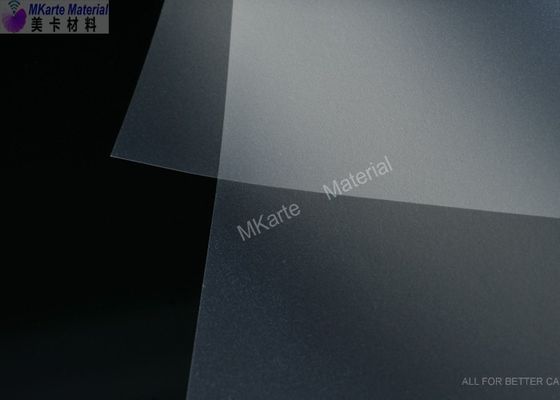

Smart Card Body Plastic Material - PVC Coated Overlay Film With High Adhesion
PVC Coated Overlay Film MCO-W ( strong adhesion level )
We also call the PVC coated overlay as PVC coating film for card body lamination, Coated film for card production, glue coated film for card, glue coating overlay for plastic card, card plastic material, card body plastic material
| 1.Smart Card Body Plastic Material - PVC Strong Coated Overlay Film Introduction |
Smart Card Body Plastic Material - PVC Strong Coated Overlay Film MCO-W model is suitable for laminating with most PVC sheets printed by various printers . It features high adhesion , no color change and deformation .
It is applicable to almost all sheets printed by various ink . It features excellent peeling strength and long aging time .
Technical Parameters:
1. Size : in reel or sheet , A4 , A3 or as per customer requirements
2. Normal thickness : 0.04,0.05,0.06,0.08,0.10mm
3. Color : transparent with one-side glue coating
4. Package method : by reel or 500 sheets per bag / 4-8 bags per paper carton , or as per customer requirements
5. Storage condition: Sealed , moisture-proof , room temperature under 40℃ , Keep it horizontally, avoid heavy pressing and direct sunlight .
| 2. Smart Card Body Plastic Material - PVC Strong Coated Overlay Film Specification |
Overlay films
Overlay films ensure high clarity and superior graphic visibility for your graphics. Our overlay films deliver exceptional performance: gauge control, color consistency (before and after lamination), and bond strength that exceeds ISO standards.
Coated films
Adhesion to UV, oxidative, digital or silk screen inks
Various adhesive coatings available
Themoprintable and laser engravable films
various vicat (temperature resistant) films
Storage conditions
For all range of thicknesses available in rolls and sheets.
Besides PVC, we also supply PETG and PC overlay and coated overlay.
Ideal storage conditions between 10-30 degree.
Ideal RH 40-70%
It should not be stored in direct sunlight and avoid major thermal
Fluctuation
Stored in original packaging
Product details:
| Item | Parameters |
| Vicat softening point | 72±2 ℃ |
| Heating Shrinkage ratio | ≤ 10 % |
| Tensile Strength | ≥ 40 MPa |
| Normal thickness in mm | 0.04 , 0.05,0.06,0.08,0.10 |
| Peel Strength (90°, 300mm/min) | ≥ 6.0 N/cm |
| Aging time (65℃ temp./95% humidity ) | ＞200 hours |
| Suitable ink | offset and silk screen printing UV ink, Pigment and dye ink for inkjet printing as well as digital printing ink |
* Customer design can be accept.
| 3. Applications of Smart Card Body Plastic Material - PVC Strong Coated Overlay Film |
| 4. Packing of Smart Card Body Plastic Material - PVC Strong Coated Overlay Film |
In standard export carton and are packed on plywood pallet
