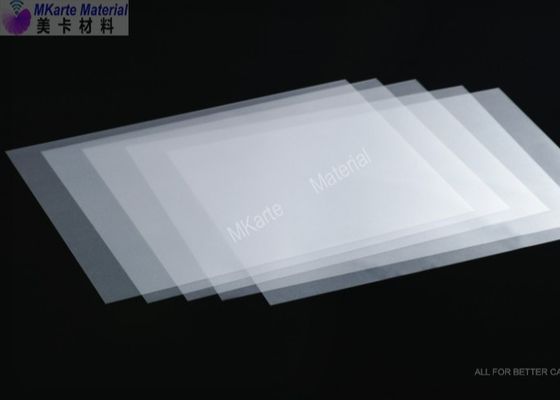

Strong Initial Viscous Force PVC Coated Overlay For Plastic Card PVC Sheet Production
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MCO-W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 tons |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 500 sheets per bag / 4-8 bags per paper carton , or by reel or as per customer requirements . All the cartons are firmly piled up and fixed on the solid plywood pallet |
| Delivery Time: | 10-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 million square meters per month |
|
Detail Information |
|||
| Normal Size: | A4, A3 Or In Reel Or As Per Customer Requirements | Vicat 5kg: | 72±2 ℃ |
|---|---|---|---|
| Tensile Strength Horizontal: | ≥ 35 | Package Method: | In Reel Or 500 Sheets Per Bag / 4-8 Bags Per Paper Carton, Or By Reel, Or As Per Customer Requirements |
| Color: | Transparent With One-side Glue Coating | Density: | 1.26 ±0.04 G/cm3 |
| High Light: | pvc overlay sheet,film frame overlay |
||
Product Description
PVC Coated Overlay Film Used For Offset Printing As Plastic Card PVC Sheet Production
PVC Coated Overlay Film MCO-W ( strong adhesion level )
We also call the PVC coated overlay as PVC coating film for card body lamination , Coated film for card production , glue coated film for card , glue coating overlay for plastic card , card plastic material , card body plastic material
Which also can be used as for the offset PVC sheet printing .
| 1. PVC Strong Coated Overlay Film Introduction |
PVC Coated Overlay MCO-W model is suitable for laminating with most PVC sheets printed by various printers . It features high adhesion , no color change and deformation .
It is applicable to almost all sheets printed by various ink . It features excellent peeling strength and long aging time .
PVC Strong Coated Overlay Film with Strong initial viscous force , slow decline , yellowing resistance ,
deformating resistance after laminating .The surface is smooth , and easy to use. Mainly used for protective
film of bank card , social security card , IC card , RF card and other card with higher requirements .
Technical Parameters:
| Item | Parameters |
| Vicat softening point | 72±2 ℃ |
| Heating Shrinkage ratio | ≤ 10 % |
| Tensile Strength | ≥ 40 MPa |
| Normal thickness in mm | 0.04 , 0.05,0.06,0.08,0.10 |
| Peel Strength (90°, 300mm/min) | ≥6.0 N/cm |
| Aging time (65℃ temp./95% humidity ) | ＞200 hours |
| Suitable ink | offset and silk screen printing UV ink, Pigment and dye ink for inkjet printing as well as digital printing ink |
| 2. PVC Strong Coated Overlay Film Specification |
| Item | Unit | Value | |
| Density | g/cm3 | 1.26 ±0.04 | |
| Tensile Strength | Horizontal | MPa | ≥35 |
| Vertical | ≥40 | ||
| Vicat 5kg | ℃ | 72±2 | |
2. Normal thickness : 0.04,0.05,0.06,0.08,0.10mm
3. Color : transparent with one-side glue coating
4. Package method : by reel or 500 sheets per bag / 4-8 bags per paper carton , or as per customer requirements
5. Storage condition: Sealed , moisture-proof , room temperature under 40℃ , Keep it horizontally, avoid heavy pressing and direct sunlight .
* Customer design can be accept.

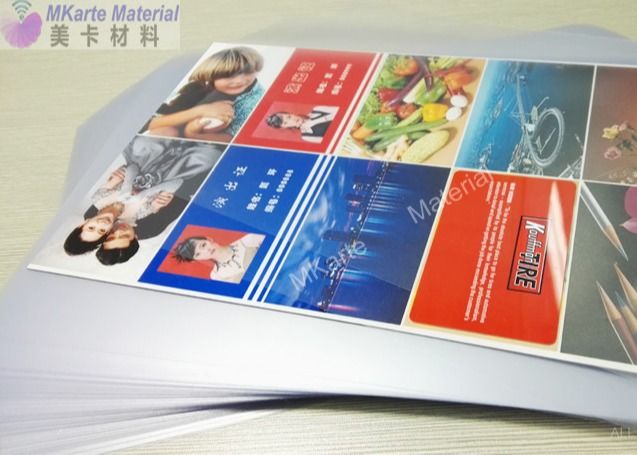

3. Applications of PVC Strong Coated Overlay Film
| 4. Packing of PVC Strong Coated Overlay Film |
By reel or 500 sheets per bag / 4-8 bags per paper carton or as per customer requirements .
All the cartons are firmly piled up and fixed on the solid plywood pallet

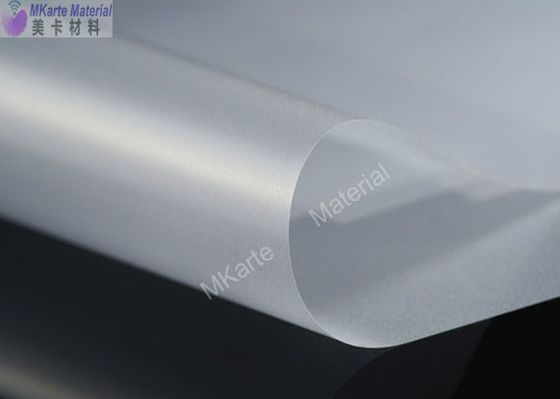

By reel as below
By sheet
