Ultra Glossy Finish Card Stainless Steel Plate For Card Laminator Use
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MSP-G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 sheets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport |
| Delivery Time: | 10 - 15working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/P, , D/P |
| Supply Ability: | 3000 per week |
|
Detail Information |
|||
| Application: | Used For Laminating Plastic Card Sheets In The Cad Laminator | Surface Finish: | Ultra Glossy / Super Mirror Finish On Both Sides |
|---|---|---|---|
| Thickness: | 0.6mm, 0.8mm (Thickness Tolerance: ±0.05mm) | Surface Roughness: | Glossy Plate (Ra＜0.03μm) |
| Packaging Box: | Solid Plywood Carton With Soft Cushion Protection Inside. | Plate Size: | A4, A3 Or Custom-made Size |
| High Light: | stainless steel laminate sheets,steel laminate sheets |
||
Product Description

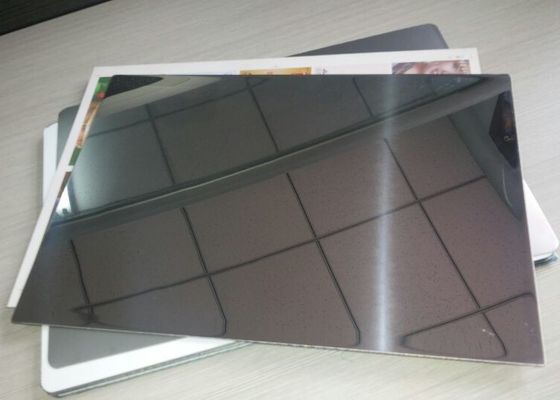

Super Mirror / Ultra Glossy Finish Card Laminated Steel Plates For Card Laminator Use
Production Specification
| 1. Super Mirror / Ultra Glossy Finish Card Laminated Steel Plates Introduction |

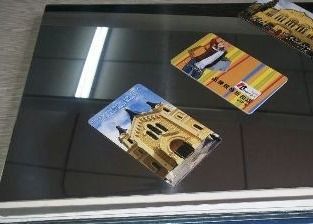

Super Mirror / Ultra Glossy Finish Card Laminated Steel Plates are used for laminating plastic card sheets in the card laminator. It can ensure perfect plastic card surface finish after lamination . Our plates are being widely used by many card factories in both China and foreign countries worldwide.
| 2. Super Mirror / Ultra Glossy Finish Card Laminated Steel Plates Specification |
Key Features:

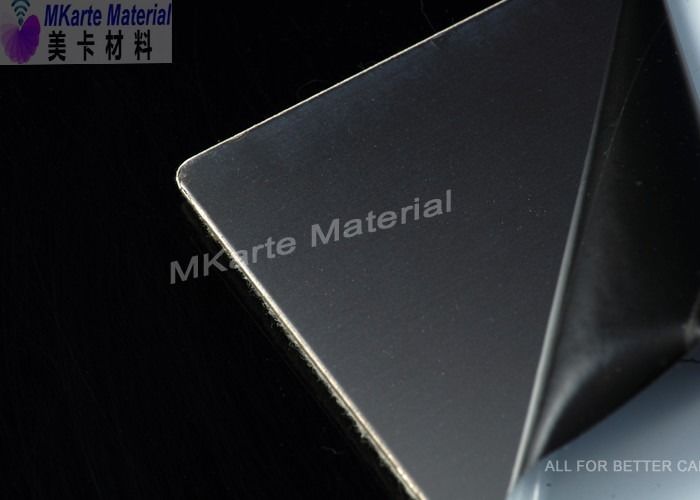

1. The two sides are covered with protection foils (blue thin films) to ensure good protection on both surfaces . There is no glue left after the foil is removed before the plate is used at the first time .
2. Two sides are made glossy in the same quality .
3. There are no scratches , dents, stripes shadows and dust on plate surfaces .
4. The edges are smooth and deburred with the round curved corners .
5. After lamination , the plates are not sticking to the laminated plastic sheets .
Technical Parameters:
1. Plate size(L×W): A4, A3 or custom-made size
2. Plate thickness: 0.6mm, 0.8mm (Thickness tolerance: ±0.05mm)
3. Dimension tolerance: ±1mm for length and width.
4. Plate flatness level: maximum 1 mm.m
5. Surface roughness: Glossy plate (Ra＜0.03μm)
6. Glossy plate surface glossiness: over 800 GU at 20° (both sides)
7. Surface hardness: HRC80±20
8. Thermal transmission: 0.04cal/℃.cm.sec at 20℃
9. Packaging box: solid plywood carton with soft cushion protection inside.
Technical Parameters:
| Surface roughtness Ra value | Ra＜0.03μm |
| Thickness range | 600 or 800 micron |
| Plate size(L×W) | A3, A4 or custom-made size |
| Plate flatness level | maximum 1 mm |
| Glossy plate surface glossiness | over 800 GU at 20° (both sides) |
| Surface hardness | HRC80±20 |
| Thermal transmission | 0.04cal/℃.cm.sec at 20℃ |
| Edge state | smooth and deburred with the round curved corners |
| Packaging box | solid plywood carton with soft cushion protection inside. |
| 3. Application of Super Mirror / Ultra Glossy Finish Card Laminated Steel Plates |
* Customer design can be accept.
| 4. Packing of Super Mirror / Ultra Glossy Finish Card Laminated Steel Plates |
