INLAY Prelam Laminated Steel Plates With Fine Silk Surface Finish
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MSP-S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 sheets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport |
| Delivery Time: | 10 - 15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/P, , D/P |
| Supply Ability: | 30 thousand sheets per month |
|
Detail Information |
|||
| Surface Finish: | Fine Silk On Both Sides | Flatness Level: | Maximum 1 Mm.m |
|---|---|---|---|
| Plate Size: | A3, A4 Or As Per Customer's Requirement | Application: | Mainly Used For INLAY (Prelam) Sheet Lamination To Realize Silk Rough Surface Of INLAY Sheet After Lamination |
| Surface Hardness: | HRC80±20 | Thermal Transmission: | 0.04cal/℃.cm.sec At 20℃ |
| High Light: | laminated steel sheet,stainless steel laminate sheets |
||
Product Description

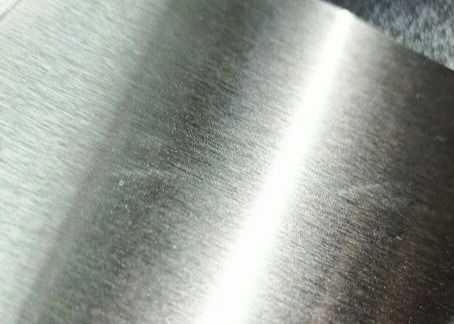

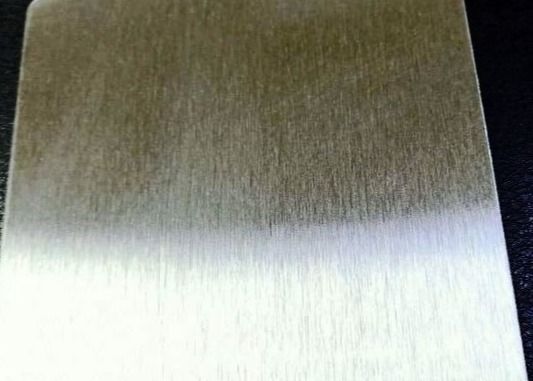

Fine Silk Pattern Card Laminated Steel Plates For Plastic Card Sheet Lamination Purpose
Production Specification
| 1. Fine Silk Pattern Card Laminated Steel Plates Introduction |
Fine Silk Pattern Card Laminated Steel Plates are mainly used for INLAY (Prelam) sheet lamination to realize silk rough surface of INLAY sheet after lamination . It can well ensure perfect plastic card surface finish after lamination . Our plates are being widely used by many card factories in both China and foreign countries worldwide .
| 2. Fine Silk Pattern Card Laminated Steel Plates Specification |
Key Features:
1. The two sides are covered with protection foils (blue thin films) to ensure good protection on both surfaces . There is no glue left after the foil is removed before the plate is used at the first time .
2. Two sides have the silk pattern in the same quality .
3. There are no scratches , dents, stripes shadows and dust on plate surfaces .
4. The edges are smooth and deburred with the round curved corners .
5. After lamination , the plates are not sticking to the laminated plastic sheets .
Technical Parameters :
Plate size(L×W): A4, A3 or custom-made size
Plate thickness: 1.0 mm (Thickness tolerance: ±0.05mm)
Dimension tolerance: ±1mm for length and width.
Plate flatness level: maximum 1 mm.m
Surface pattern: Fine silk/Rough silk
Surface hardness: HRC80±20
Thermal transmission: 0.04cal/℃.cm.sec at 20℃
Packaging box: solid plywood carton with soft cushion protection inside.
Technical Parameters:
| Plate Thickness | 1.0 mm (Thickness tolerance: ±0.05mm) |
| Plate size ( L×W ) | A4 , A3 or custom-made size |
| Plate flatness level | maximum 1 mm |
| Dimension tolerance | ±1mm for length and width |
| Surface hardness | HRC80±20 |
| Thermal transmission | 0.04cal/℃.cm.sec at 20℃ |
| Edge state | smooth and deburred with the round curved corners |
| Packaging box | Strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport |
| 3. Application of Fine Silk Pattern Card Laminated Steel Plates |
* Customer design can be accept.
| 4. Packing of Fine Silk Pattern Card Laminated Steel Plates |
