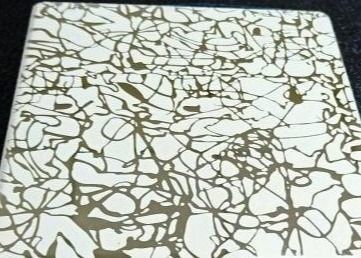

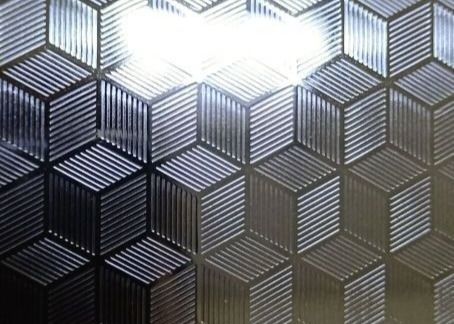

Embossed Personalized Laminated Steel Plates For Plastic Card Laminator Use

Embossed Personalized Laminated Steel Plates For Plastic Card Laminator Use

Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MSP-P

Payment & Shipping Terms:

Minimum Order Quantity: 200 sheets
Price: Negotiable
Packaging Details: Strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport
Delivery Time: 10 - 20 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, , D/P
Supply Ability: 2500 sheets per week
Get Best Price Contact Now

Detail Information

Plate Surface: Particular Pattern On One Side Dimension Tolerance: ±1mm For Length And Width
Plate Size ( L×W ): A4 , A3 Or Custom Made Application: Widely Used For Personalized Pattern Finish Card Lamination
Thermal Transmission: 0.04cal/℃.cm.sec At 20℃ Plate Thickness: 0.8 Mm (Thickness Tolerance: ±0.05mm)
High Light:

laminated steel sheet

,

stainless steel laminate sheets

Product Description

Personalized Pattern Finish Card Laminated Steel Plates For Plastic Card Laminator Use



Production Specification



1. Personalized Pattern Finish Card Laminated Steel Plates Introduction



Personalized Pattern Finish Card Laminated Steel Plates are mainly used for personalized pattern finish card lamination. It can well ensure perfect plastic card surface finish after lamination . Our plates are being widely used by many card factories in both China and foreign countries worldwide .



2. Personalized Pattern Finish Card Laminated Steel Plates Specification



Technical Parameters :

Plate size ( L×W ): A4, A3 or custom-made size

Plate thickness: 0.8 mm ( Thickness tolerance: ±0.05mm )

Dimension tolerance: ±1mm for length and width.

Plate flatness level: maximum 1 mm /m

Surface pattern: special pattern

Surface hardness: HRC80±20

Thermal transmission: 0.04cal/℃.cm.sec at 20℃

Packaging box: solid plywood carton with soft cushion protection inside



Key Features:



1. One side ( pattern side ) is covered with protection foils ( blue thin films ) to ensure good protection.

2. Only one side has the special pattern and another side has no pattern which will not contact the card surface in laminator. .

3. There are no scratches and dust on pattern surface and possibly there is slight scratch on another non-pattern side.

4. The edges are smooth and deburred with the round curved corners.

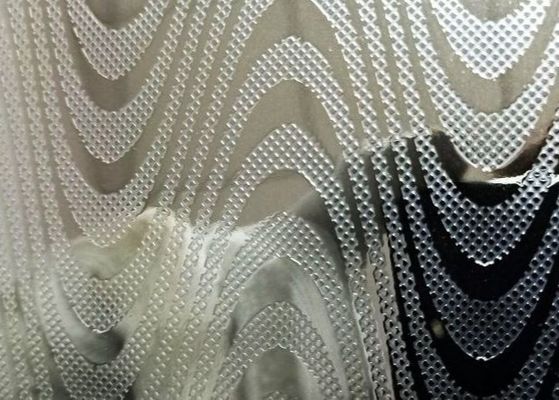

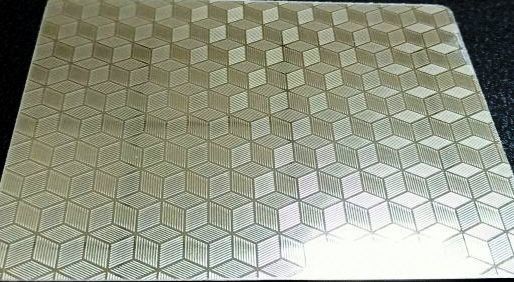

Embossed Personalized Laminated Steel Plates For Plastic Card Laminator Use 0



Embossed Personalized Laminated Steel Plates For Plastic Card Laminator Use 1



Technical Parameters:



 Surface pattern  special pattern
 Plate Thickness   0.8 mm (Thickness tolerance: ±0.05mm)
 Plate size ( L×W )  A3 , A4 or as customer's requirement
 Plate flatness level  maximum 1 mm / m
 Dimension tolerance  ±1mm for length and width
 Surface hardness  HRC80±20
 Thermal transmission  0.04cal/℃.cm.sec at 20℃
 Application  Mainly used for personalized pattern finish card lamination
 Packaging box  Strong plywood package with proper soft protection material   inside, suitable for long distance for sea or air transport

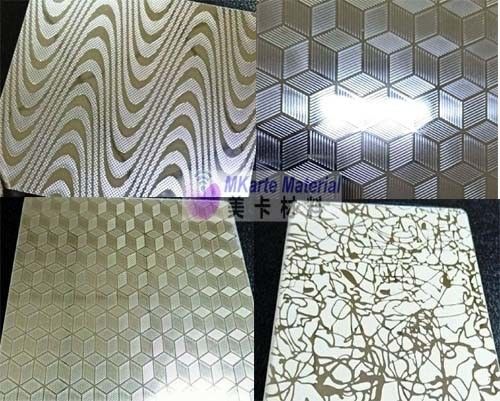

3. Application of Personalized Pattern Finish Card Laminated Steel Plates



Embossed Personalized Laminated Steel Plates For Plastic Card Laminator Use 2



Customer design can be accept.



4. Packing of Personalized Pattern Finish Card Laminated Steel Plates



Embossed Personalized Laminated Steel Plates For Plastic Card Laminator Use 3



Embossed Personalized Laminated Steel Plates For Plastic Card Laminator Use 4



5. Production process of Personalized Pattern Finish Card Laminated Steel Plates



Step1 Raw Material Selection : Hot rolled strip is used as a raw material for cold rolled stripe.



Step 2 Scouring/Pickling : Use a pickling unit to remove iron oxide from the surface of hot rolled strip



Step 3 Cold rolling : After multiple passes of cold rolling, the finished steel strips shall meet the size, shape and surface quality requirements.



Step 4 Heat treatment : Annealing the cold rolled strip to achieve the desired properties.



Step 5 Finishing: the final product is obtained by leveling, shearing and packaging the annealed strip steel coil



Step 6 Flattening and film application : Release #430 stainless steel sheet coil, then flatten it on the flattening line, cut it into standard size

stainless steel plate, and attach protective film on both sides of the steel plate to prevent scratches of the steel plate.



Step 7 Tailor cutting : According to the size requirements of customers, the large steel plate is precisely cut by using the shearing machine.



Step 8 Visual Inspection : Make a comprehensive inspection of each finished steel plate, check the dimension, thickness and surface quality, and eliminate unqualified products. If it is matte finish steel plate, according to customer's requirements, sandblasting machine is used on both sides of the steel plate to achieve matte finish effect, and then apply protection films on both sides before quality inspection.



Step 9 Packaging and labeling : Packaging the qualified products by using fumigation-free wooden cases, and inside the wooden cases, the soft materials are applied to maximize the protection of steel plates during the process of handling and transportation. The proper label or logo is applied on the case surface before shipment.
