Aluminum Glossy Laminated Steel Plates With Heavy Grain Surface Treatment

Aluminum Glossy Laminated Steel Plates With Heavy Grain Surface Treatment

Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MSP-A-G

Payment & Shipping Terms:

Minimum Order Quantity: 200 sheets
Price: Negotiable
Packaging Details: Strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport
Delivery Time: 10 - 20 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, , D/P
Supply Ability: about 3000 sheets per week
Get Best Price Contact Now

Detail Information

Surface Finish: Heavy Grain Finish On Both Sides Surface Roughness Value Range: Heavy Grain Aluminum Plate ( Ra 5.5 - 6.0 μm )
Plate Size: A4, A3 Or Custom-made Size Application: Widely Used For Plastic Card Lamination
Thermal Transmission: 0.04cal/℃.cm.sec At 20℃ Packaging Box: Solid Plywood Carton With Soft Cushion Protection Inside
High Light:

stainless steel laminate sheets

,

steel laminate sheets

Product Description

Heavy Grain Finish Aluminum Plate - Card Laminated Steel Plates For Plastic Card Laminating



Production Specification



1. Heavy Grain Finish Aluminum Plate - Card Laminated Steel Plates  Introduction



Heavy Grain Finish Aluminum Plate - Card Laminated Steel Plates are used for laminating plastic card sheets in the card laminator. It can ensure perfect plastic card surface finish after lamination . Our plates are being widely used by many card factories in both China and foreign countries worldwide.

And we also call the plate as Heavy / Middle / Slight Grained laminating steel plate, Grained steel plate for card laminator, Grained card finish lamination plate .



2. Heavy Grain Finish Aluminum Plate - Card Laminated Steel Plates Specification



Technical Parameters :

Plate size(L×W): A4, A3 or custom-made size

Plate thickness: 0.6mm, 0.8mm (Thickness tolerance: ±0.05mm)

Dimension tolerance: ±1mm for length and width.

Plate flatness level: maximum 1 mm / m

Surface roughness value range: 2.5 - 6.0 μm

Slight Grain Steel plate ( Ra 2.5 - 3.0 μm )

Heavy Grain Aluminum plate ( Ra 5.5- 6.0 μm )

Surface hardness: HRC80±20

Thermal transmission: 0.04cal/℃.cm.sec at 20℃

Packaging box: solid plywood carton with soft cushion protection inside.

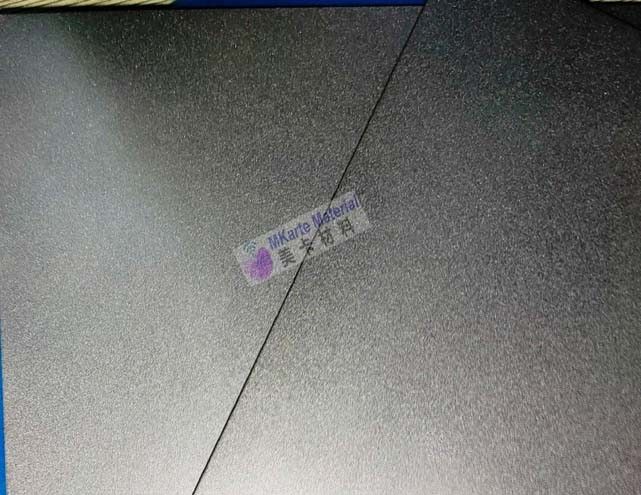

Aluminum Glossy Laminated Steel Plates With Heavy Grain Surface Treatment 0



Key Features:



1. The two sides are covered with protection foils (blue thin films) to ensure good protection on both surfaces . There is no glue left after the foil is removed before the plate is used at the first time .

2. Two sides are made slight grain in the same quality .

3. There are no scratches , dents, stripes shadows and dust on plate surfaces .

4. The edges are smooth and deburred with the round curved corners .

5. After lamination , the plates are not sticking to the laminated plastic sheets .



Technical Parameters:



 Surface roughness value  Ra 5.5- 6.0 um
 PlateThickness   0.6mm, 0.8mm (Thickness tolerance: ±0.05mm)
 Plate size   in sheet, A3, A4 or custom-made size
 Plate flatness level  maximum 1 mm / m
 Surface hardness  HRC80±20
 Thermal transmission  0.04cal/℃.cm.sec at 20℃
 Plate Edge  smooth and deburred with the round curved corners
 Packaging box  Strong plywood package with proper soft protection material inside,   suitable for long distance for sea or air transport





3. Application of Heavy Grain Finish Aluminum Plate - Card Laminated Steel Plates

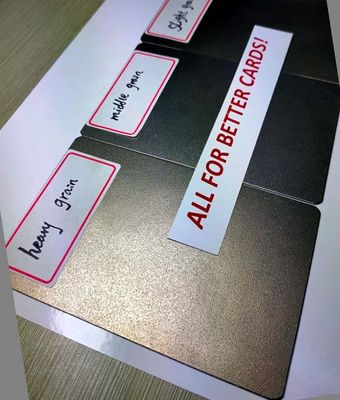

Aluminum Glossy Laminated Steel Plates With Heavy Grain Surface Treatment 1

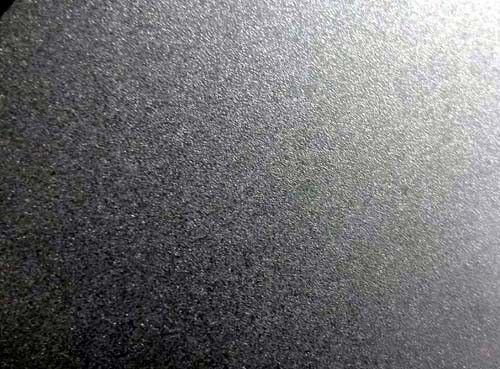

Aluminum Glossy Laminated Steel Plates With Heavy Grain Surface Treatment 2





Customer design can be accept.



4. Packing of Heavy Grain Finish Aluminum Plate - Card Laminated Steel Plates

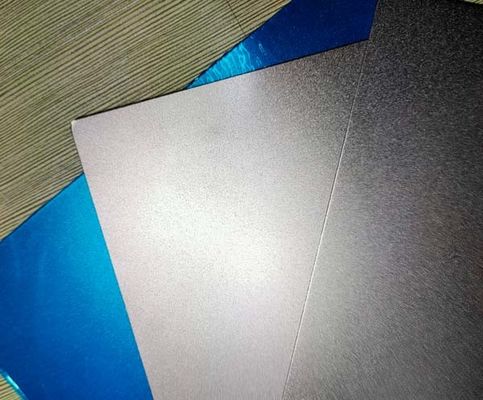

Aluminum Glossy Laminated Steel Plates With Heavy Grain Surface Treatment 3



Aluminum Glossy Laminated Steel Plates With Heavy Grain Surface Treatment 4
