Customized Roll Size PVC Coated Overlay Small Lamination Discoloration

Customized Roll Size PVC Coated Overlay Small Lamination Discoloration

Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MCO-W

Payment & Shipping Terms:

Minimum Order Quantity: 2 tons
Price: Negotiable
Packaging Details: by reel or 500 sheets per bag / 4-8 bags per paper carton , or as per customer requirements . All the cartons are firmly piled up and fixed on the solid plywood pallet
Delivery Time: 10-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3 million tons per month
Get Best Price Contact Now

Detail Information

Package Method: By Reel Or 500 Sheets Per Bag/4-8 Bags Per Paper Carton, Or As Per Customer Requirements Thickness Range: 0.04 - 0.10mm
Peel Strength (90°, 300mm/min): ≥ 6.0 N/cm Vicat Softening Point: 72±2 ℃
Heating Shrinkage Ratio: ≤10 % Tensile Strength: ≥40 MPa
High Light:

pvc overlay film

,

film frame overlay

Product Description



PVC Coated Overlay with Strong Adhesion Glue Coating for HP indigo digital printing  - Card Body Lamination





PVC Coated Overlay Film for HP indigo printing with Strong Adhesion



Specific to the new coated overlay of HP Indigo electronic ink, suitable for all series of HP Indigo digital printer, it has high peel strength with electronic ink, small lamination discoloration, not easy to cause deformation, and wide application.



1. PVC Strong Coated Overlay Film - Description



PVC Coated Overlay MCO-W model is suitable for laminating with most PVC sheets printed by various printers . It features high adhesion , no color change and deformation .
It is applicable to almost all sheets printed by various ink . It features excellent peeling strength and long aging time .


Detailed Product Description:

1.Thickness Range: 0.04-0.1MM
2.Finish: Matt with glue on one side
3.Size: Customized Roll size or Sheet size,
A4 , A3 or as per customer requirements
4.Charastics:High initial stick

5.Color : transparent with one-side glue coating

6.Package method : by reel or 500 sheets per bag / 4-8 bags per paper carton , or as per customer requirements

7. Storage condition: Sealed , moisture-proof , room temperature under 40℃ , Keep it horizontally, avoid heavy pressing and direct sunlight .

Customized Roll Size PVC Coated Overlay Small Lamination Discoloration 0





2. PVC Strong Coated Overlay Film - Specification



 Item  Parameters
 Vicat softening point     72±2 ℃
 Heating Shrinkage ratio     ≤ 10 %
 Tensile Strength  ≥ 40 MPa
 Normal thickness in mm  0.04 , 0.05,0.06,0.08,0.10
 Peel Strength (90°, 300mm/min)  ≥ 6.0 N/cm
 Aging time (65℃ temp./95% humidity ) >200 hours
 Suitable ink  offset and silk screen printing UV ink, Pigment and dye ink for inkjet printing as well   as digital printing ink
Customized Roll Size PVC Coated Overlay Small Lamination Discoloration 1
* Customers' size request can be accepted.

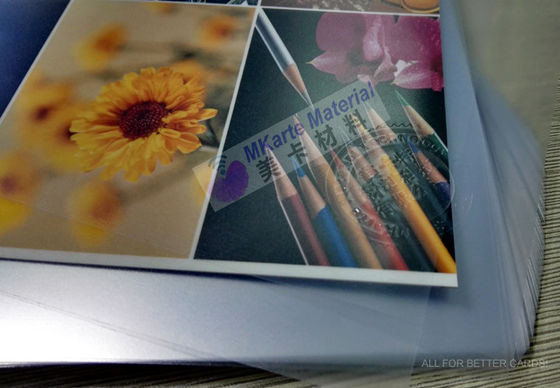

3. PVC Strong Coated Overlay Film - Applications

Customized Roll Size PVC Coated Overlay Small Lamination Discoloration 2



Manufacture Method:

1. Put printing core and two overlay together, then put into the laminator, the temperature is determined as per the instruction of the machine , Pls be noticed that all glue sides of both pvc sheets and overlay are put inward.

2. The lamination usually lasts 10-15minutes ,The pressure is 6-8Mpa, The temperature is 120-140°C

3. Cut the card

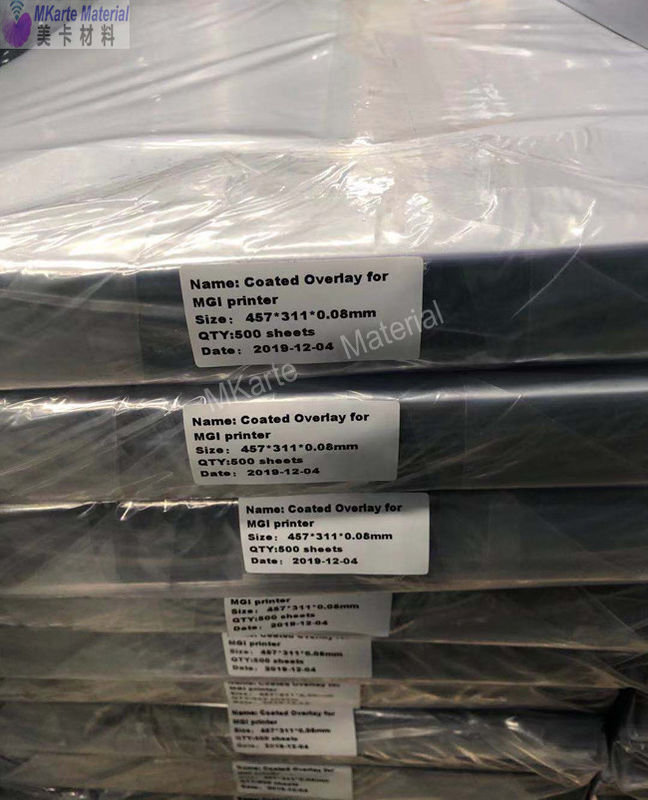

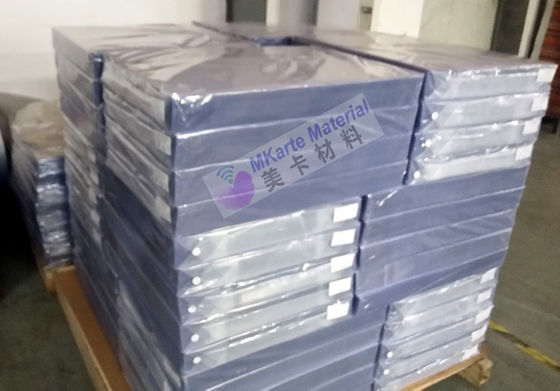

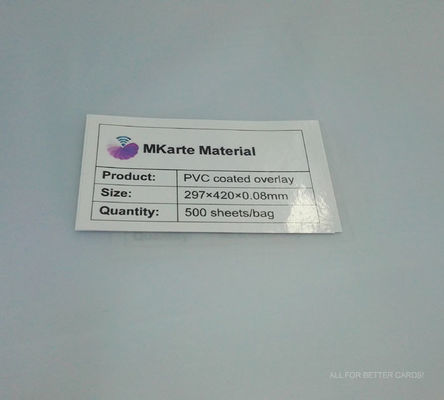

4. PVC Strong Coated Overlay Film - Inspection ,  Package and Storage



Customized Roll Size PVC Coated Overlay Small Lamination Discoloration 3

Customized Roll Size PVC Coated Overlay Small Lamination Discoloration 4

Customized Roll Size PVC Coated Overlay Small Lamination Discoloration 5
