High Adhesion PVC Uncoated Overlay For PVC Card Body Lamination Purpose

High Adhesion PVC Uncoated Overlay For PVC Card Body Lamination Purpose

Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MUO-G1

Payment & Shipping Terms:

Minimum Order Quantity: 30000 sheets or 2 tons
Price: Negotiable
Packaging Details: by reel or 500 sheets per bag / 4-8 bags per paper carton , as per customer requirements . All the cartons are firmly piled up and fixed on the solid plywood pallet
Delivery Time: 10-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 4 million tons per month
Get Best Price Contact Now

Detail Information

Size: Sheet Size Or Roll Size Thickness Range: 40-100 Micron
Package Method: In Reel Or 500 Sheets Per Bag / 4-8 Bags Per Paper Carton, Or By Reel, Or As Per Customer Requirements Storage Condition: Sealed, Moisture-proof, Room Temperature Under 40℃, Keep It Horizontally, Avoid Heavy Pressing And Direct Sunlight
High Light:

pvc overlay film

,

film frame overlay

Product Description

PVC Uncoated Overlay or Film in Sheet or by Roll for PVC Card Body Lamination Purpose



PVC Uncoated Overlay or Film in Sheet or by Roll for PVC Card Body Lamination Purpose is used for lamination with partially or less-printed PVC sheets . With the right lamination parameter setting , It can also realize high adhesion without  color change and deformation.



Overlay without a layer of thermal glue on the surface .It is mainly used to make the external film of credit cards and other cards.



1.  Descriptions and Characteristics for PVC Uncoated Overlay or Film in Sheet or by Roll for PVC Card Body Lamination Purpose



It is used for lamination with partially or less-printed PVC sheets . With the right lamination parameter setting , It can also realize high adhesion , no color change and deformation.



Overlay without a layer of thermal glue on the surface .It is mainly used to make the external film of credit cards and other cards.

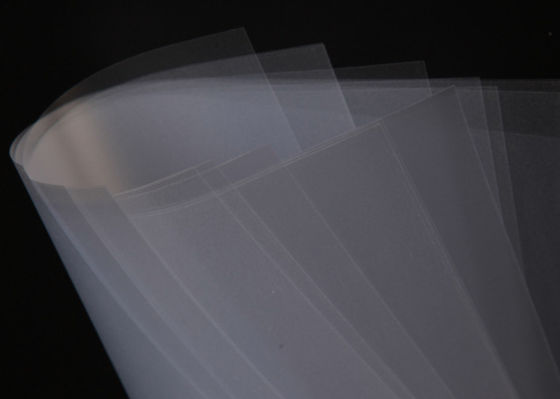

High Adhesion PVC Uncoated Overlay For PVC Card Body Lamination Purpose 0

Characteristics:

1. Excellent stable quality

2. Special formulation according to each client's requirement

3. Exact sheet size cutting and thickness control

4. Low dust

5. Low static

6. Adjustable Vicat degree

7. Less than15 days Short Lead Time

8. Perfect packaging for transportation

9. Best after sell service

Item Unit Value
Density g/cm3 1.26 ±0.04
Tensile Strength Horizontal MPa ≥35
Vertical ≥40
Vicat 5kg 72±2















2.  Techincal Parameters for PVC Uncoated Overlay or Film in Sheet or by Roll for PVC Card Body Lamination Purpose





Technical Parameters:



Item Parameters
Vicat softening point    72±2 ℃
Heating Shrinkage ratio    ≤ 10 %
Tensile Strength ≥ 40 MPa
Normal thickness in mm 0.04 , 0.05,0.06,0.08,0.10
Peel Strength (90°, 300mm/min) ≥6.0 N/cm
Aging time (65℃ temp./95% humidity ) >200 hours
Suitable ink offset and silk screen printing UV ink, Pigment and dye ink for inkjet printing as well as digital printing ink



1. Size: Sheet size or Roll size , A4 , A3 or as per customer requirements
2.Thickness range: 40-100 Micron

3. Color : transparent with one-side glue coating,Transparent (Clear)

4.Roughness: Both sides matte

5.Vicat point: 72+2 ℃ (ISO306B50)

6. Package method : by reel or 500 sheets per bag / 4-8 bags per paper carton , or as per customer requirements

7. Storage condition: Sealed , moisture-proof , room temperature under 40℃ , Keep it horizontally, avoid heavy pressing and direct sunlight .

* Customers' design can be accepted.



3. Testing Lab for PVC Uncoated Overlay or Film in Sheet or by Roll for PVC Card Body Lamination Purpose

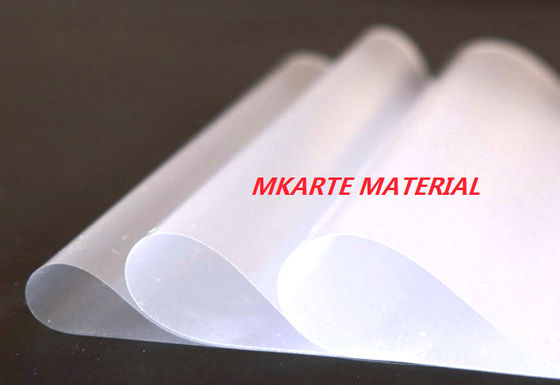

High Adhesion PVC Uncoated Overlay For PVC Card Body Lamination Purpose 1



4. Production Equipments for PVC Uncoated Overlay or Film in Sheet or by Roll for PVC Card Body Lamination Purpose

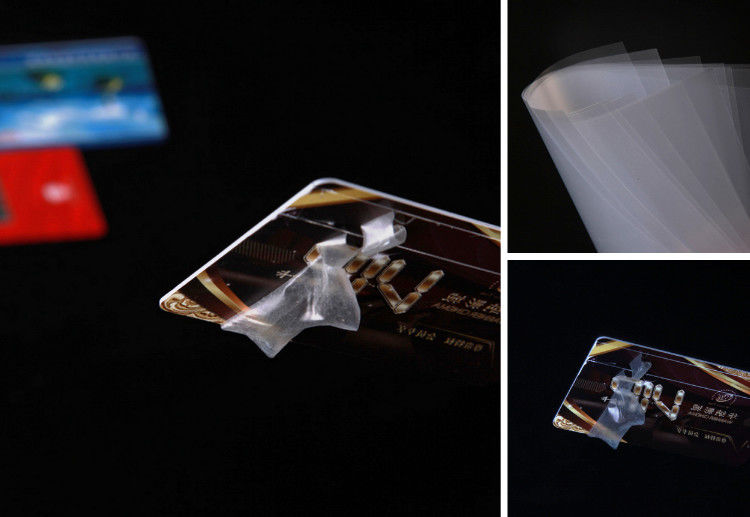

High Adhesion PVC Uncoated Overlay For PVC Card Body Lamination Purpose 2
