Aging Resistance Smart Card Material HP Indigo Single Sided Digital Printing PVC Sheet
Product Details:
| Place of Origin: | China |
| Brand Name: | MKarte |
| Model Number: | MDP-HP-SS-W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30000 sheets or 2 tons |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 50 or 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets |
| Delivery Time: | 10-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30 thousand pieces per week |
|
Detail Information |
|||
| Size: | A4, A3 Or As Per Customer Requirements (tolerance +/-0.5mm) | Thickness: | 0.15mm-0.40mm (tolerance +/-5%) |
|---|---|---|---|
| Coating Description: | Digital Ink Coating On One Side And Lamination Glue Coating On Another Side. | Color: | Common White/supper White |
| Package Method: | 50/100/200 Sheets Per Bag, 10 Bags Per Paper Carton, And The Cartons Are Piled Up And Firmly Fixed On Solid Plywood Pallets. | Peel Strength: | No Less Than 4.5N/cm. |
| HP Indigo Printers: | 4-color Model Printer Such As S2000, S5600, S7600, Etc. | 240h’s Aging Test: | 75℃, 95%RH |
| High Light: | white polycarbonate sheet,polycarbonate plastic sheets |
||
Product Description
Smart Card Material - HP Indigo Single Sided Digital Printing PVC sheet for Smart Card Making
1.Smart Card Material - HP Indigo Single Sided Digital Printing PVC sheet - Introduction
Brief Introduction:
HP Indigo Single Sided Digital Printing PVC sheet is developed specially for the whole series of HP Indigo digital presses. It could be printed directly by the machine with high precision images, no Topaz coating needed.
Smart Card Material - HP Indigo Single Sided Digital Printing PVC sheet is suitable for the whole series of HP Indigo printers. It could be printed directly by digital printers with high definition and real color images.
● specially designed for the whole series of HP Indigo printers. suitable for 4-color model printer such as S2000, S5600, S7600, etc.
● It has superior aging resistance performance comparing with other similar products. After 240h’s aging test (75℃, 95%RH), the peel strength is no less than 4.5N/cm.
● No crack occurs on the printed images after lamination at high temperature.
2.Smart Card Material - HP Indigo Single Sided Digital Printing PVC sheet - Parameters and Features
HP Indigo Single Sided Digital Printing PVC sheet, also called electronic ink printing sheet, it is a novel material used for digitization ink printing, and its color is recovered accurately. Printing ink has strong adhesive force, high laminating strength, clear graphic outline, and free from static electricity. Generally, it is matched with tape film for making laminated card.
| Size | A4, A3 or as per customer requirements |
| Thickness | 0.15mm-0.40mm |
| Color | Common white/supper white |
| Package method | 50, 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets. |
| Storage condition | Sealed, moisture-proof, room temperature under 40℃ |
Parameters:
1). Size: A4, A3 or as per customer requirements (tolerance +/-0.5mm)
2). Thickness: 0.15mm-0.40mm (tolerance +/-5%)
3). Coating description: digital ink coating on one side and lamination glue coating on another side.
4). Color: Common white/supper white
5). Package method: 50/100/200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets.
6). Storage condition: Sealed, moisture-proof, room temperature under 40℃
3.Smart Card Material - HP Indigo Single Sided Digital Printing PVC sheet - Application
Using Method:
Printed directly by the HP Indigo digital press.
Characteristics:
● Suitable for the whole series of HP Indigo digital presses.
● Excellent ink adhesion.
● No crack occurs on the printed images after lamination at high temperature.
● Good printing stability.
| Item | Parameters |
| Surface | Clean and flatness |
| Dimensional Tolerance (mm) | ±1 |
| Angle Cut Tolerance(mm) | ±1 |
| Diagonal Difference(mm) | ≤1.2 |
| Thickness Tolerance(mm) | ±10% |
| Laminating Unit | Temp(℃) | Pressure(MPa) | Time (min) |
| Heat Laminating | 110~130 | ≥8 | 20 |
| Cool Laminating | ≤40 | ≥8 | 20 |
4.Smart Card Material - HP Indigo Single Sided Digital Printing PVC sheet - Inspection & Packing
| Product Test Report | |||||
| Product Name: PVC Digital Printing Sheet | |||||
| Inspected Items | Unit | Inspection Standard | Test Result | ||
| Appearance | The color is even, No black impurity spots, No obvious scratch |
Meet the requirements | |||
| Length | mm | ±1 | OK | ||
| Width | mm | ±1 | OK | ||
| Thickness | mm | ±10% | OK | ||
| Squareness | mm/m | ≤1 | 0.4 | ||
| Density | g/cm3 | 1.42±0.05 | 1.41 | ||
| Chromatic aberration | ∆E | ≤1.0 | 0.51 | ||
| Pulling Strength | MD | MPa | ≥45 | 47 | |
| CD | ≥43 | 43.1 | |||
| Roughness Ra |
4# | ṷ m | 0.7～1.8 | 1.28 | |
| 5# | ṷ m | 0.7～1.8 | 0.97 | ||
| Roughness Rz |
4# | ṷ m | 4～12 | 7.912 | |
| 5# | ṷ m | 4～12 | 6.91 | ||
| Surface Tension | 4# | Dynes/cm | ≥34 | 34.5 | |
| 5# | ≥34 | 34 | |||
| Heating shrinkage rate | MD | % | ≤-6.0 | -2 | |
| CD | ≤+2.2 | 0 | |||
| Whiteness | 96.2 | ||||
| Transmittance | % | 5.5 | |||
| Vicat softening point | ℃ | 78±2 | 78.9 | ||

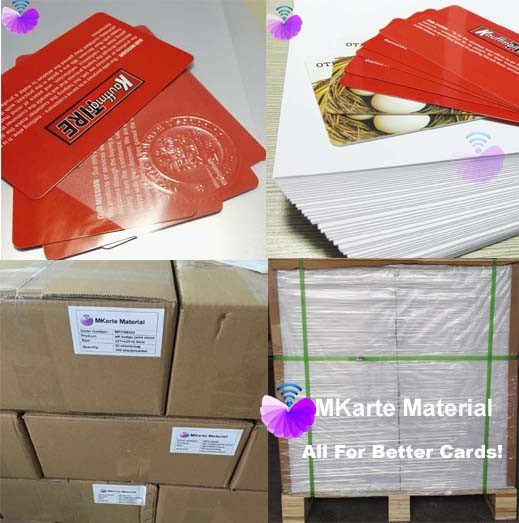

Packing:
Outer:Carton Inner:PE bag
Storage:
Keep package sealed and moisture-proof, room temperature under 40℃.
Keep horizontally, avoid oppress heavily and direct sun light.
Stacking height should not exceed one meter.
Shelf life: One year.
