Anti Aging 0.40mm 4.5N/Cm Printed Pvc Sheet For MGI Printer
Product Details:
Place of Origin: | China |
Brand Name: | MK |
Model Number: | MDP-MG-W |
Payment & Shipping Terms:
Minimum Order Quantity: | 30000 sheets or 2 tons |
---|---|
Price: | Negotiable |
Packaging Details: | 50 or 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets |
Delivery Time: | 10-15 work days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 10 million square meters per month |
Detail Information |
|||
Noraml Size: | In Sheet Or In Roll, A4 , A3 Or Custom Made | Size Tolerance: | +/-0.5 Mm In Length And Width , +/-5% In Thickness |
---|---|---|---|
Color Apperance: | Common White / Super White | Coating: | Digital Ink Coating On One Side And Lamination Glue Coating On Another Side |
Application: | Widely Used For The Whole Series Of MGI Printers | Packaging: | 100-200 Sheets/package |
High Light: | 0.40mm Printed Pvc Sheet,4.5N/Cm Printed Pvc Sheet,Anti Aging Printing PVC Sheets |
Product Description

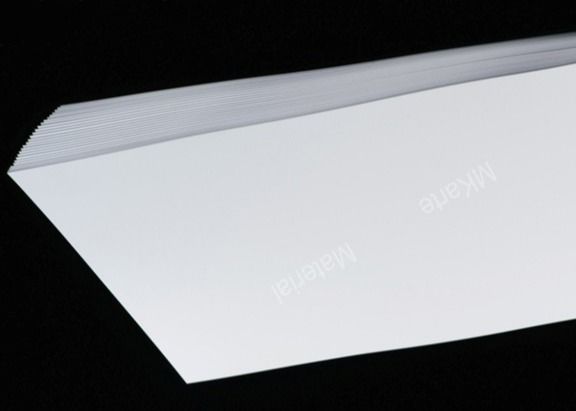

White Digital Printing PVC Sheet For MGI Printer 0.15mm-0.40mm
Product Technical Specification
Application of MGI Digital Printable PVC Sheets

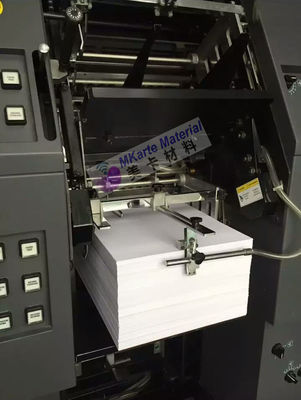

MGI Digital printing PVC sheet MDP-MG-W is suitable for MGI digital printer series. It could be printed directly by digital printers with perfect printing quality.
● Suitable for the whole series of MGI printers
● It has superior aging resistance performance comparing with other similar products. After 240h’s aging test (75℃, 95%RH), the peel strength is no less than 4.5N/cm.
● High definition images
● No crack occurs on the printed images after lamination at high temperature.
Normal Thickness | 0.15mm,0.17mm,0.18mm, 0.20mm,0.30mm,0.33mm and other customized thickness |
Common Size | In roll or in sheet , A4,A3 or custom-made ( ( tolerance +/-0.5mm ) |
Instruction | Can be printed directly by digital printers with high definition images |
Coating feature | digital printing ink coating on one side and lamination glue coating on another side. |
Packing | 50 or 100 or 200 sheets per bag , 10 bags per paper carton , and the cartons are piled up and firmly fixed on solid plywood pallets |
Appearance | No crack occurs on the printed images after lamination at high temperature. |
Parameters:
1. Size: A4, A3 or as per customer requirements ( tolerance +/-0.5mm )
2. Thickness: 0.15mm-0.40mm
3. Coating description: digital ink coating on one side and lamination glue coating on another side.
4. Color : Common white/supper white
5. Package method : 50 / 100 / 200 sheets per bag , 10 bags per paper carton , and the cartons are piled up and firmly fixed on solid plywood pallets .
6. Storage condition: Sealed, moisture-proof, room temperature under 40℃ , Keep it horizontally, avoid heavy pressing and direct sunlight
Product Features:
Size | in sheet A4,A3 or custom-made ( ( tolerance +/-0.5mm ) |
Color | Common White / Super White |
Coating description | digital ink coating on one side and lamination glue coating on another side. |
Package method | 50 / 100 / 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets |
Storage condition | Sealed, moisture-proof, room temperature under 40℃ , Keep it horizontally, avoid heavy pressing and direct sunlight |
PVC Plastic cards process in general :
1. Print directly to the surface of sheets
2. Hot press laminate with PVC coated overlay films when the ink dries.
3. Punch out cards from the fused materials.
4. Other art-works, such as embossing, hot stamping, hole punching, screen printing etc.
5. Finished cards.
Packing of MGI Digital Printable PVC Sheets
Storage Conditions of MGI Digital Printable PVC Sheets
For all range of thicknesses available in rolls and sheets.
Besides PVC sheet and overlay, we also supply PETG and PC sheet and coated overlay / uncoated overlay.
Ideal storage conditions between 10-30 degree.
Ideal RH 40-70%
It should not be stored in direct sunlight and avoid major thermal
Fluctuation
Stored in original packaging
