0.32mm A4 Size Digital Printing Pvc Sheets Hp Indigo Single Sided For Plastic Card
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MDP-HP-SS-W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30000 sheets or 2 tons |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 50 or 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 450,000 sheets Per week |
|
Detail Information |
|||
| Squareness: | ≤1mm/m | Density: | 1.42±0.05g/cm3 |
|---|---|---|---|
| Heating Shrinkage Rate MD: | ≤-6.0% | Package Method: | 50/100/200 Sheets Per Bag, 10 Bags Per Paper Carton |
| Usage: | Suitable For The Whole Series Of HP Indigo Printers | Suitable For The Whole Series Of HP Indigo Printers: | Sealed, Moisture-proof, Room Temperature Under 40℃ |
| Highlight: | 0.32mm digital printing pvc sheets,a4 size digital printing pvc sheets,pvc card sheet a4 size |
||
Product Description

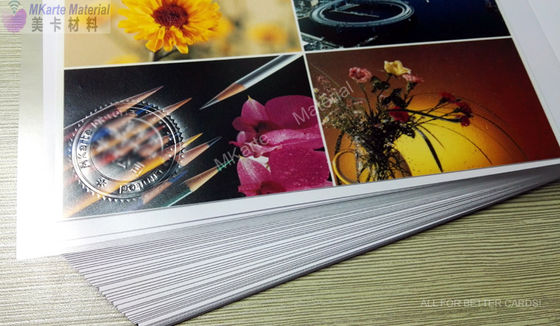

0.32mm HP Indigo Single-sided Digital Printing PVC Sheets Plastic Card
1. Product Characters of 0.32mm HP Indigo Single-sided Digital Printing PVC Sheets Plastic Card
1. Smooth and Uniform Surface
It is waterproof and has very good smooth surface, and is non-deformable.
2. Reliable Electrical Insulation
It is widely used for different electrical equipment.
3. Excellent Chemical and Corrosion Resistance
It can withstand the erosion of a variety of chemicals.
4. Good Impact Resistance
It has good impact resistance, pressure-resisting and durability.
5. Easily Formed
It is easily formed due to good plasticity, which is suitable for die cutting, vacuum forming and folding.
2. Details of 0.32mm HP Indigo Single-sided Digital Printing PVC Sheets Plastic Card

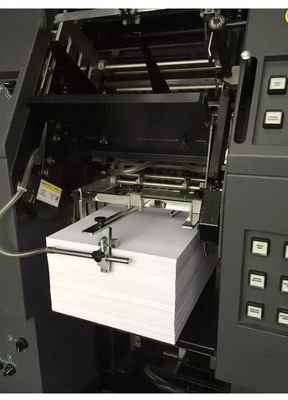

It is suitable for the whole series of HP Indigo printers. It could be printed directly by digital printers with high definition and real color images.
● Specially designed for the whole series of HP Indigo printers. suitable for 4-color model printer such as S2000, S5600, S7600, etc.
● It has superior aging resistance performance comparing with other similar products. After 240h’s aging test (75℃, 95%RH), the peel strength is no less than 4.5N/cm.
● No crack occurs on the printed images after lamination at high temperature.
| Normal Thickness | 0.15mm,0.17mm,0.18mm, 0.20mm,0.30mm,0.33mm and other |
| Size | In roll or in sheet , A4,A3 or custom-made ( ( tolerance +/-0.5mm ) |
| Instruction | Can be printed directly by digital printers with high definition images |
| Coating feature | digital print ink coating on one side and lamination glue coating on another side. |

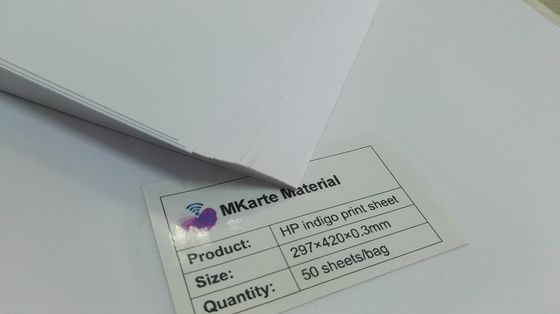

| Packing | 50 or 100 or 200 sheets per bag , 10 bags per paper carton , and the cartons are piled up and firmly fixed on solid plywood pallets |
| Appearance | No crack occurs on the printed images after lamination at high temperature. |
| Size | A4, A3 or as per customer requirements (tolerance +/-0.5mm) |
| Thickness | 0.15mm-0.40mm |
| Color | Common white/supper white |
| Package method | 100 or 200 sheets/package. |
| Storage condition | Sealed, moisture-proof, room temperature under 40℃ |

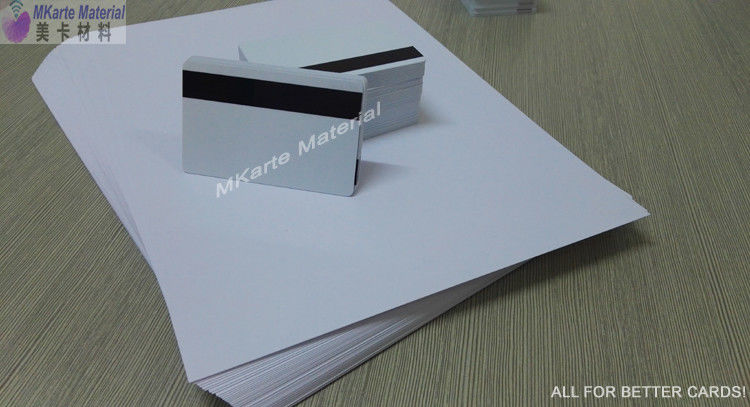

3.PVC Plastic cards process in general :
1. Print directly to the surface of sheets
2. Hot press laminate with PVC coated overlay films when the ink dries.
3. Punch out cards from the fused materials.
4. Other art-works, such as embossing, hot stamping, hole punching, screen printing etc.
5. Finished cards.
4. Test report of 0.32mm HP Indigo Single-sided Digital Printing PVC Sheets Plastic Card
| Product test report | ||||
| Product Name: PVC Digital Printing Sheet | ||||
| Inspected Items | Unit | Inspection Standard | Test Result | |
| Appearance | The color is even, No black impurity spots, No obvious scratch |
Meet the requirements | ||
| Length | mm | ±1 | OK | |
| Width | mm | ±1 | OK | |
| Thickness | mm | ±10% | OK | |
| Squareness | mm/m | ≤1 | 0.4 | |
| Density | g/cm3 | 1.42±0.05 | 1.41 | |
| Chromatic aberration | ∆E | ≤1.0 | 0.51 | |
| Pulling Strength | MD | MPa | ≥45 | 47 |
| CD | ≥43 | 43.1 | ||
| Roughness Ra |
4# | ṷ m | 0.7～1.8 | 1.28 |
| 5# | ṷ m | 0.7～1.8 | 0.97 | |
| Roughness Rz |
4# | ṷ m | 4～12 | 7.912 |
| 5# | ṷ m | 4～12 | 6.91 | |
| Surface Tension | 4# | Dynes/cm | ≥34 | 34.5 |
| 5# | ≥34 | 34 | ||
| Heating shrinkage rate | MD | % | ≤-6.0 | -2 |
| CD | ≤+2.2 | 0 | ||
| Whiteness | 96.2 | |||
| Transmittance | % | 5.5 | ||
| Vicat softening point | ℃ | 78±2 | 78.9 | |
