800 Micron HRC80 0.6mm Glossy Card Laminated Steel Sheet
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MSP-G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Packaging Details: | export standard plywood box with soft protection material inside |
| Delivery Time: | 10-20working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/P, , D/P |
| Supply Ability: | 30 thousand pieces per month |
|
Detail Information |
|||
| Thickness: | 0.6mm Or 0.8mm(Thickness Tolerance: ±0.05mm) | Dimension Tolerance: | ±1mm For Length And Width. |
|---|---|---|---|
| Surface Roughness: | Glossy Plate (Ra＜0.03μm) | Thermal Transmission: | 0.04cal/℃.cm.sec At 20℃ |
| Glossy Plate Surface Glossiness: | Over 800 GU At 20° (both Sides) | Surface Hardness: | HRC80±20 |
| High Light: | Glossy Card Laminated Steel Sheet,0.6mm Laminated Steel Sheet,HRC80 Steel Laminate Sheets |
||
Product Description

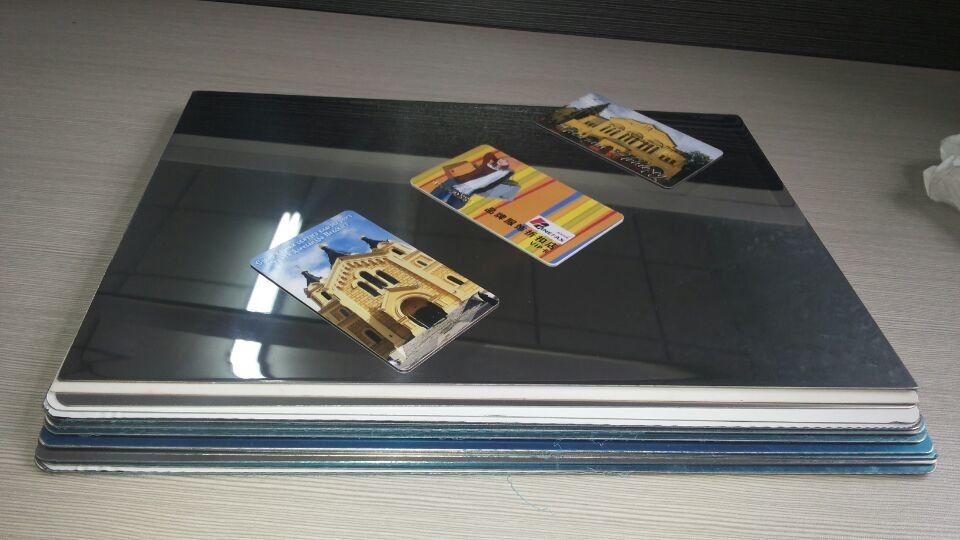

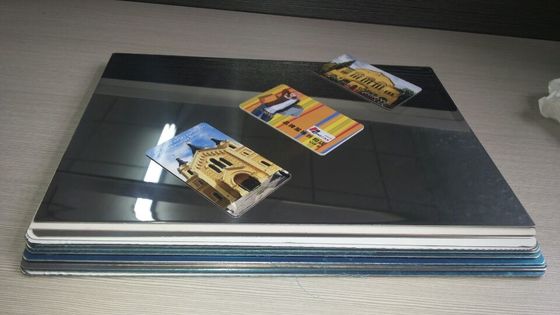

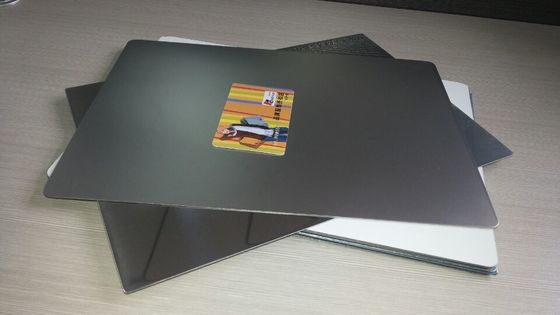

Custom - Made Size Mirror/Glossy Card Lamination Steel Plate for card body lamination
1.Custom - Made Size Mirror/Glossy Card Lamination Steel Plate for card body lamination- Introduction
Mirror/Glossy Card Lamination Steel Plate MSP-G are used for laminating plastic card sheets in the cad laminator. It can ensure perfect plastic card surface finish after lamination. Our plates are being widely used by many card factories in both China and foreign countries worldwide.
Detailed Product Description:
1).Glossy finish, matte finish, mirror finish,etc.
2).Size & thickness on request
3).High-grade stainless stee
Features:
1).Card laminator Accessories
2).800 Micron thickness
3).Characteristic: heat-resistant, high elasticity
Product introduction:
Steel plate based in good raw material, use the advae of good conducting of heat, resisting pressure, high quality mirror. By our steel plates you can produce the international standard card.
2.Custom - Made Size Mirror/Glossy Card Lamination Steel Plate for card body lamination- Technical Parameters:
| surface roughtness Ra value | Ra＜0.03μm |
| Thickness range | 600 or 800 micron |
| Dimension tolerance | ±1mm |
| Plate size(L×W) | A4, A3 or custom-made size |
| Plate flatness level | maximum 1 mm |
| Glossy plate surface glossiness | over 800 GU at 20° (both sides) |
| Surface hardness | HRC80±20 |
| Thermal transmission | 0.04cal/℃.cm.sec at 20℃ |
| Edge state | smooth and deburred with the round curved corners |
| Packaging box | solid plywood carton with soft cushion protection inside. |
3.Custom - Made Size Mirror/Glossy Card Lamination Steel Plate for card body lamination- Key Features:
1). The two sides are covered with protection foils (blue thin films) to ensure good protection on both surfaces. There is no glue left after the foil is removed before the plate is used at the first time.
2). Two sides are made glossy in the same quality.
3). There are no scratches, dents, stripes shadows and dust on plate surfaces.
4). The edges are smooth and deburred with the round curved corners.
5). After lamination, the plates are not sticking to the laminated plastic sheets.
4.Custom - Made Size Mirror/Glossy Card Lamination Steel Plate for card body lamination-Applicaion
There are five kinds of steel plates:
1).Glossy steel plates
normal mirror effect,for planographic code and inkjet code.
2).Matte steel plates
on te surface there are tiny lights,thin and lubricious,for planographic code and inkjet code.
3).Coarse matte steel
Platoon lights on the surface,too coarse for planographic code.
4).Moderate coarse matte steel plates
no lights on the surface,moderate coarse.
5).Fine matte steel plates
no lights on the surface, relatively thin and lubricious, for paleographic code and
inkjet code.
5.Custom - Made Size Mirror/Glossy Card Lamination Steel Plate for card body lamination- Packing
Packing: Wood Tree Texture Double Side Laminating Steel Plate for Card Making / Stainless Steel Plate Press on Cards in standard export wooden case
