0.08mm High Thickness Glue Coating Pvc Coated Overlay

0.08mm High Thickness Glue Coating Pvc Coated Overlay

Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MCO-W

Payment & Shipping Terms:

Minimum Order Quantity: 20000 sheets or 2 tons
Price: Negotiable
Packaging Details: by reel or 500 sheets per bag / 4-8 bags per paper carton , or as per customer requirements . All the cartons are firmly piled up and fixed on the solid plywood pallet
Delivery Time: 10-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 million square meters per month
Get Best Price Contact Now

Detail Information

Thickness: 0.04,0.05,0.06,0.08,0.10mm Or Other Color: Transparent With One-side Glue Coating
Vicat (℃): 72±2 Heat Laminating: 110~130 ℃
Aging Time (65℃ Temp./95% Humidity ): >200 Hours Tensile Strength: ≥40 MPa
Size: In Reel Or Sheet, A4, A3 Or As Per Customer Requirements Package Method: By Reel Or 500 Sheets Per Bag/4-8 Bags Per Paper Carton, Or As Per Customer Requirements.
High Light:

high thickness pvc coated overlay

,

glue coating pvc coated overlay

,

0.08mm pvc coated overlay

Product Description

High Stickness Glue Coating PVC Coated Overlay for Digital Print used in Smart Card Production



1. High Stickness Glue Coating PVC Coated Overlay for Digital Print used in Smart Card Production - Brief Introduction

High Stickness Glue coating PVC Coated Overlay for Digital Print is developed specially for Inkjet printer Ink. It’s suitable for laminating with the sheets which printed by whole series of Digital presses. It provides excellent peel strength and no deformation or color change after lamination.

0.08mm High Thickness Glue Coating Pvc Coated Overlay 0



Technical Parameters:

Item Parameters
Vicat (℃) 72±2 ℃
Shrinkage (%) ≤10%
Tensile Strength (MPa) MD ≥40
TD ≥35
Roughness (μm) Ra 0.5~1.8
Rz 3~9
Thickness (mm) 0.04~0.1

2. High Stickness Glue Coating PVC Coated Overlay for Digital Print used in Smart Card Production - Using Method

Specific to the new coated overlay of HP Indigo electronic ink, suitable for all series of HP Indigo digital printer, it has high peel strength with electronic ink, small lamination discoloration, not easy to cause deformation, and wide application.

Detailed Product Description

1).Thickness Range: 0.04-0.1MM
2).Finish: Matt with glue on one side
3).Size: Customized Roll size or Sheet size
4).High initial stick



Laminate with Inkjet printed sheet directly.

0.08mm High Thickness Glue Coating Pvc Coated Overlay 1



3. High Stickness Glue Coating PVC Coated Overlay for Digital Print used in Smart Card Production- Characteristics



 ● Suitable for lamination with digital printer Ink, with excellent peel strength.

 ● Abrasion resistant , prolong the life of cards.

 ● Environment friendly in the card making process, no solvent or gas discharges.



4.High Stickness Glue Coating PVC Coated Overlay for Digital Print used in Smart Card Production - Technical Parameters



Item Parameters
Surface Clean and flatness
Dimensional Tolerance (mm) ±1
Angle Cut Tolerance (mm) ±1
Diagonal Difference (mm) ≤1
Thickness Tolerance (mm) ±10%
Vicat (℃) 72±2
Shrinkage MD ≥ - 40%
TD ≤15%
Tensile Strength (MPa) MD ≥35
TD ≥35

0.08mm High Thickness Glue Coating Pvc Coated Overlay 2







5. High Stickness Glue Coating PVC Coated Overlay for Digital Print used in Smart Card Production - Laminating Condition



Laminating Unit Temp(℃) Pressure(MPa) Time (min)
Heat Laminating 110~130 ≥8 20
Cool Laminating ≤20 ≥8 20

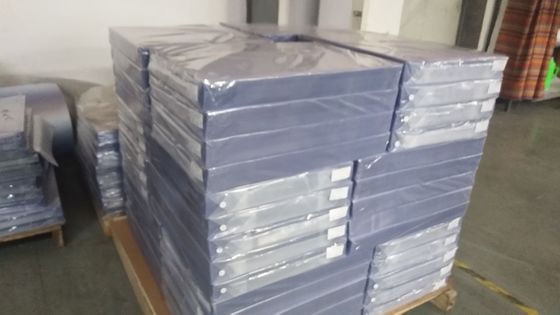

6.High Stickness Glue Coating PVC Coated Overlay for Digital Print used in Smart Card Production- Packing:



Outer:Carton Inner:PE bag



0.08mm High Thickness Glue Coating Pvc Coated Overlay 3



7.High Stickness Glue Coating PVC Coated Overlay for Digital Print used in Smart Card Production - Storage



Keep package sealed and moisture-proof, room temperature between 5~30℃.

Keep horizontally, avoid oppress heavily and direct sun light.

Stacking height should not exceed one meter.

Shelf life: One year.
