High Impact Strength 0.08mm 0.06mm PETG Coated Film

High Impact Strength 0.08mm 0.06mm PETG Coated Film

Product Details:

Place of Origin: China
Brand Name: MKarte
Model Number: MCO-PETG

Payment & Shipping Terms:

Minimum Order Quantity: 30000 sheets or 2 tons
Price: Negotiable
Packaging Details: by reel or 500 sheets per bag/4-8 bags per paper carton, or as per customer requirements. All the cartons are firmly piled up and fixed on the solid plywood pallet.
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3 million tons per month
Get Best Price Contact Now

Detail Information

Material: PETG ( Polyethylene Terephthalate ) Size: In Reel Or Sheet, A4, A3 Or As Per Customer Requirements
Thickness: 0.04-0.10mm Surface Dyne (dynes/cm): ≥38
Glue Coating: One-side Glue Coating. PETG Usage: For Production Of High-end Credit Cards, ID Cards, Special Packaging And Printing Industry.
Highlight:

0.08mm PETG Coated Film

,

0.06mm PETG Coated Film

,

Polyethylene Terephthalate overlay

Product Description

PETG Coated Film, Polyethylene Terephthalate overlay for PETG cards and Special Printing Industry



1.PETG Coated Film, Polyethylene Terephthalate overlay - Introduction



    The performance of PETG Coated Film, Polyethylene Terephthalate overlay is quite different from PET and PC. PETG plate has outstanding toughness and high impact strength, its impact strength is 3-10 times more than ordinary plastic plate, and it has a wide processing range, high mechanical strength and excellent flexibility. Compared with PVC, it has high transparency, good luster and easy to print. At the same time, PETG has environmental protection advaes, and it can be recycled without polluting the environment. PETG sheet has low flammability, good fire resistance, no combustion support, low smoke emission, no harmful substances after combustion.



    PETG Coated Film, Polyethylene Terephthalate overlay is a new developed environment friendly product which could get excellent peel strength at low laminating temperature. It provides superior aging resistance performance to other similar products and no deformation and color change after lamination.

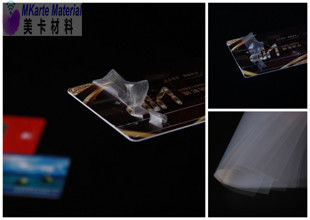

     High Impact Strength 0.08mm 0.06mm PETG Coated Film 0

Characteristics:

● Suitable for conventional ink and UV ink, with excellent peel strength.

● Work well at low laminating temperature.

● Could be used for laminating pure PETG card (both overlay and sheet are PETG).

● PETG is one kind of industrial raw material which is certificated by International Union for Conservation of Nature and Natural Resources.

● PETG card is degradable and finally discharge water and carbon dioxide.

2.PETG Coated Film, Polyethylene Terephthalate overlay - Parameters



PETG overlay film which used for card making and laminating ,glossy and semi-transparency , Anti-static ,abration,folding,high strength .



Technical Parameters:

Item Parameters
Vicat softening point (B50)    74±2
Vicat softening point (A120)   78±2
Heating Shrinkage ratio 105 ℃/10min    ≥-8.0 % (longitudinal) &≥-4.0 %(transverse)
Surface Dyne (dynes/cm) ≥38
Normal thickness in mm 0.04,0.05,0.06,0.08,0.10
Density (g/cm3) 1.20 ±0.05
Peel Strength (90°, 300mm/min) ≥6.0 N/cm
Aging time (65℃ temp./95% humidity ) >200 hours
Suitable ink offset and silk screen printing UV ink, Pigment and dye ink for inkjet printing as well as digital printing ink


Parameters:
 1). Size: in reel or sheet, A4, A3 or as per customer requirements
    2). Normal thickness: 0.04,0.05,0.06,c,0.10mm

    3). Color: transparent with one-side glue coating.

    4). Package method: by reel or 500 sheets per bag/4-8 bags per paper carton, or as per customer requirements. All the cartons are firmly piled           up and fixed on the solid plywood pallet.

    5). Storage condition: Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight.


3.PETG Coated Film, Polyethylene Terephthalate overlay - Application

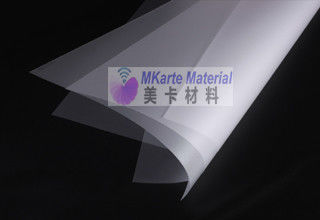

    High Impact Strength 0.08mm 0.06mm PETG Coated Film 1

PETG Coated Film, Polyethylene Terephthalate overlay for PETG Card body production (Model: MCO-PETG) has such features as impact resistance, high temperature resistance, anti-static, abrasion, folding and high strength. It is widely used for the production of high-end credit cards, ID cards, special packaging and printing industry.



PETG is a kind of transparent amorphous copolyester.



Laminating Condition of PETG Cards:



Laminating Unit Temp(℃) Pressure(MPa) Time (min)
Heat Laminating 110~130 ≥6 25
Cool Laminating ≤25 ≥6 15





Item Parameters
Vicat (℃) 74 to78±3
Shrinkage ≥-8.0 % (longitudinal) &≥-4.0 %(transverse)
Peel Strength (90°, 300mm/min) ≥6.0 N/cm
Roughness(μm) Ra 0.58~2.1
  Rz 3.45
Thickness(mm) 0.04,0.05,0.06,0.08,0.10



4.PETG Coated Film, Polyethylene Terephthalate overlay - Packing



Package method: by reel or 500 sheets per bag/4-8 bags per paper carton, or as per customer requirements. All the cartons are firmly piled up and fixed on the solid plywood pallet.



Storage condition: Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight.

High Impact Strength 0.08mm 0.06mm PETG Coated Film 2

High Impact Strength 0.08mm 0.06mm PETG Coated Film 3
