0.04mm 0.05mm 0.06mm Pvc Overlay Sheet Roll

0.04mm 0.05mm 0.06mm Pvc Overlay Sheet Roll

Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MCO-W

Payment & Shipping Terms:

Minimum Order Quantity: 30000 sheets or 2 tons
Price: Negotiable
Packaging Details: by reel or 500 sheets per bag / 4-8 bags per paper carton , or as per customer requirements . All the cartons are firmly piled up and fixed on the solid plywood pallet
Delivery Time: 10-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10 million square meters per month
Get Best Price Contact Now

Detail Information

Package Method: 500 Sheets Per Bag / 4-8 Bags Per Paper Carton, Or By Reel, Or As Per Customer Requirements Thickness: 0.04,0.05,0.06,0.08,0.10mm Or Other
Color: Transparent With One-side Glue Coating Surface: Clean And Flatness
Vicat Softening Point: 72±2 ℃ Suitable Ink: Offset And Silk Screen Printing UV Ink, Pigment And Dye Ink For Inkjet Printing As Well As Digital Printing Ink
High Light:

0.06mm Pvc Overlay Sheet

,

0.04mm Pvc Overlay Sheet

,

0.05mm Pvc Overlay Sheet

Product Description

Long Life Smart Card Material-PVC Overlay Sheet/roll With Excellent Peeling Strength



1. Long Life Smart Card Material-PVC Overlay Sheet/roll With Excellent Peeling Strength- Introduction

 Long Life Smart Card Material-PVC Overlay Sheet/roll With Excellent Peeling Strength is designed specially for laminating with the PVC sheet printed by various offset printers including Heidelburg and the silkscreen printing machine as well.   Inkjet printer Ink. It can realize excellent peeling strength without deformation or color change after lamination.

0.04mm 0.05mm 0.06mm Pvc Overlay Sheet Roll 0

2.  Long Life Smart Card Material-PVC Overlay Sheet/roll With Excellent Peeling Strength- Technical Parameters



Technical Parameters:

Item Parameters
Vicat softening point    72±2 ℃
Heating Shrinkage ratio    ≤10 %
Tensile Strength ≥40 MPa
Normal thickness in mm 0.04,0.05,0.06,0.08,0.10
Peel Strength (90°, 300mm/min) ≥6.0 N/cm
Aging time (65℃ temp./95% humidity ) >200 hours
 Suitable ink offset and silk screen printing UV ink, Pigment and dye ink for inkjet printing as well as digital printing ink


Parameters:
1). Size: in reel or sheet, A4, A3 or as per customer requirements
2). Normal thickness: 0.04,0.05,0.06,0.08,0.10mm

3). Color: transparent with one-side glue coating.

4). Package method: by reel or 500 sheets per bag/4-8 bags per paper carton, or as per customer requirements. All the cartons are firmly piled up and fixed on the solid plywood pallet.

5). Storage condition: Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight.

0.04mm 0.05mm 0.06mm Pvc Overlay Sheet Roll 1



3. Long Life Smart Card Material-PVC Overlay Sheet/roll With Excellent Peeling Strength- Features



 ● Suitable for lamination with the PVC sheets printed by various offset and inkjet printers

 ● Abrasion resistant , prolong the life of cards.

 ● Environment friendly in the card making process, no solvent or gas discharges.



Item Parameters
Surface Clean and flatness
Dimensional Tolerance (mm) ±1
Angle Cut Tolerance (mm) ±1
Diagonal Difference (mm) ≤1
Thickness Tolerance (mm) ±10%
Vicat (℃) 72±2
Shrinkage MD ≥ - 40%
TD ≤15%
Tensile Strength (MPa) MD ≥35
TD ≥35

0.04mm 0.05mm 0.06mm Pvc Overlay Sheet Roll 2



 Recommended Laminator parameters:



Laminating Unit Temp(℃) Pressure(MPa) Time (min)
Heat Laminating 110~130 ≥8 20
Cool Laminating ≤20 ≥8 20

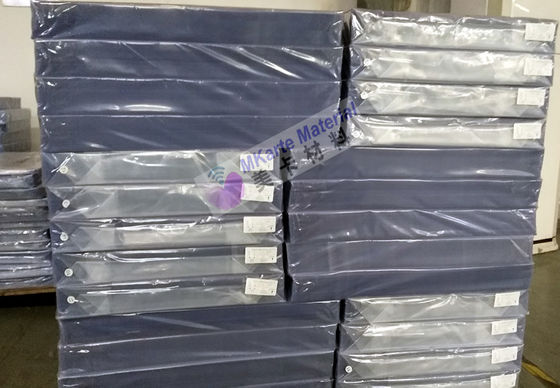

4.Long Life Smart Card Material-PVC Overlay Sheet/roll With Excellent Peeling Strength- Packing

0.04mm 0.05mm 0.06mm Pvc Overlay Sheet Roll 3
