3.5mm Lamination Purpose A4 A3 Smart Card Material
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MRP-1A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 80 pcs |
|---|---|
| Price: | USD 7 -30 per sheet |
| Packaging Details: | packed with PE bags and paper carton |
| Delivery Time: | 6-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/A, D/P |
| Supply Ability: | 10 thousand pieces per month |
|
Detail Information |
|||
| Material: | White Silicon Rubber On The Surface Layer With Glass Fiber In The Middle | Size: | A4, A3 Or Customized |
|---|---|---|---|
| Heatproof Performance: | 200℃ | Color: | White |
| Advae: | Longer Service Life With More Durability | Material Quality: | High Adhesive White Silicon Rubber |
| High Light: | A3 Smart Card Material,A4 Smart Card Material,3.5mm Smart Card Material |
||
Product Description
High-Quality Plastic Card Cushion Pad designed for high end card lamination purpose
( Key words: lamination pad, rubber pad, card laminator cushion pad, silicon rubber pad, plastic card lamination pad, card material)
1. High-Quality Plastic Card Cushion Pad designed for high end card lamination purpose- Introduction
It is working with the lamnation steel plates in the process of plastic card lamination. It is applied for the lamination process for various plastic cards including bank card, credit card, and royalty card. It works with lamination steel plate in the plastic card lamination process.

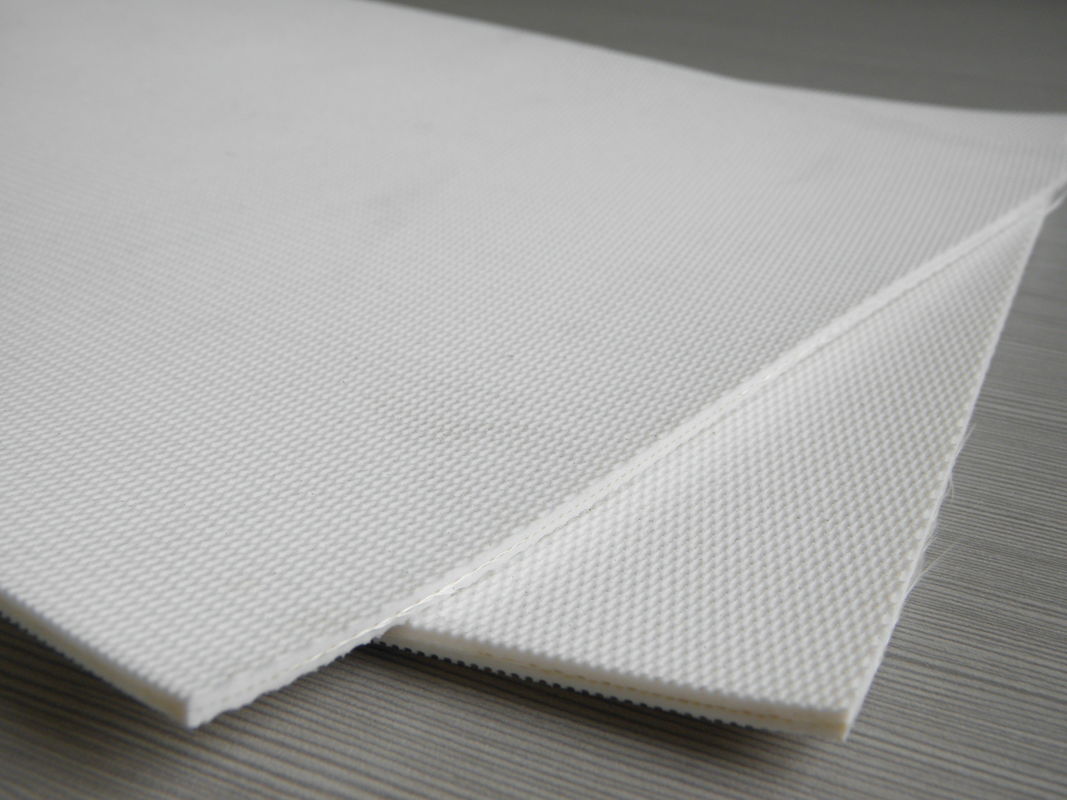

The cushion pad consists of white heatproof silicon rubber layers on the surfaces with glass filer in the middle.
Detailed Product Description
(1) Silicon rubber cushion
(2) High tensile strength and tearing strength,
(3) Long service life,
(4) Heat resistant up to 250
(5) Product Application: It is used for hot-press , widely used for card laminating or furniture , wooden doors of the pressure paste .
(6) Product specification: 1) thickness: 1.5- 3.5mm 2) maximum width: 3800mm with no joint 3) any length 4) color: white
2.High-Quality Plastic Card Cushion Pad designed for high end card lamination purpose- Key Features:
1). It is heatproof with great durability, which can well meet the technological requirements in plastic card lamination.
2). It can transfer heat quickly and evenly, which can improve production efficiency and energy conservation.
3). It has good performance of high temperature resistance and excellent elastic resilience.
| Function | Used for plastic card laminator, working with lamination steel plates |
| Service life | one year |
| Material | White heatproof silicon rubber layers on the surfaces with glass filer in the middle. |
3. High-Quality Plastic Card Cushion Pad designed for high end card lamination purpose- Technical Parameters
1). Heatproof performance: 200℃
2). Tensile strength: 80 N/mm
3). Adhesion: 80 N/mm
4). Hardness SHORE A: 55±5
5). Thickness: 3mm
6). Length and width: A4, A3 or custom-made size (size tolerance: ±1mm)
The technical index:
| Model number | MRP-1 |
| Thickness | 1.5- 3.5mm (Thickness tolerance: ±0.05mm) |
| Pad size | in sheet, A3, A4 or custom-made size |
| Breaking strength | 80 Mpa |
| Hardness SHORE A | 55±5 |
| Adhesive force N/mm | 2.5 |
| Breaking extensibility | 350 |
| Packaging box | Strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport |
4. High-Quality Plastic Card Cushion Pad designed for high end card lamination purpose-Application
It has good cushioning performance to avoid the damage and scratching resulting from direct contacting between laminator template and lamination steel plates, which can extend the service life of both lamination steel plates and template.
5.High-Quality Plastic Card Cushion Pad designed for high end card lamination purpose- Packing
