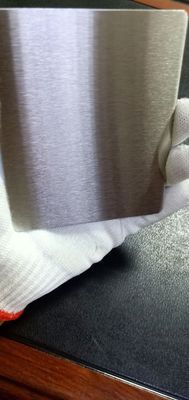

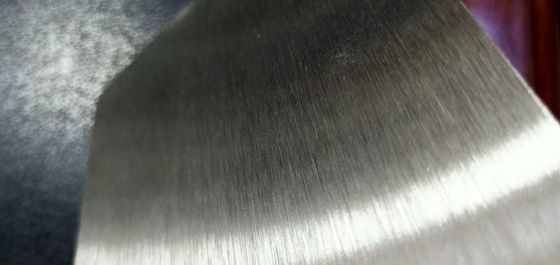

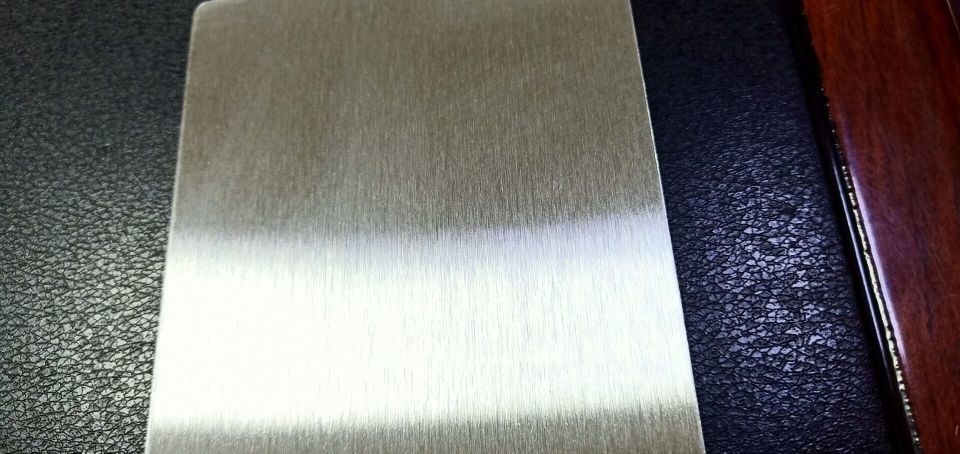

Rough Silk Pattern 1.0mm Laminated Steel Plate
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MSP-S-R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | USD 5-15 per sheet or negotiable |
| Packaging Details: | plywood box with soft protection material inside |
| Delivery Time: | 10-20 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram,, D/A, D/P |
| Supply Ability: | 40 thousand pieces per month |
|
Detail Information |
|||
| Plate Size(L×W): | A4, A3 Or Custom-made Size | Thickness: | 1.0mm |
|---|---|---|---|
| Surface Hardness: | HRC80±20 | Plate Flatness Level: | Maximum 1 Mm/m |
| Surface Pattern: | Rough Silk | Packaging Box: | Solid Plywood Carton With Soft Cushion Protection Inside |
| High Light: | 1.0mm laminated steel plate,A4 laminated steel plate,A3 laminated steel plate |
||
Product Description
Rough Silk pattern laminated steel plates MSP-S-R used for INLAY (Prelam) sheet lamination
1.Rough Silk pattern laminated steel plates MSP-S-R used for INLAY (Prelam) sheet lamination- Introduction
Rough Silk Finish Lamination Steel Plates MSP-S-R have heavy silk finish surfaces on both sides and are designed for laminating plastic card sheets or RFID card Prelam (INLAY) sheets in the cad laminator. It can ensure perfect plastic card surface finish after lamination. Our plates are being widely used by many card factories in both China and foreign countries worldwide.
Plate size(L×W): A4, A3 or custom-made size
Plate thickness: 1.0 mm (Thickness tolerance: ±0.05mm)
Dimension tolerance: ±1mm for length and width.
Plate flatness level: maximum 1 mm.m
Surface pattern: Fine silk/Rough silk
Surface hardness: HRC80±20
Thermal transmission: 0.04cal/℃.cm.sec at 20℃
Packaging box: solid plywood carton with soft cushion protection inside.
2.Rough Silk pattern laminated steel plates MSP-S-R used for INLAY (Prelam) sheet lamination- Parameters
Technical Parameters:
| Plate size(L×W) | A4, A3 or custom-made size |
| Plate thickness | 1.0 mm (Thickness tolerance: ±0.05mm) |
| Dimension tolerance | ±1mm for length and width. |
| Plate flatness level: | Plate flatness level: |
| Surface pattern | Rough silk |
| Surface hardness | HRC80±20 |
| Thermal transmission | 0.04cal/℃.cm.sec at 20℃ |
| Packaging box | solid plywood carton with soft cushion protection inside. |
| Edge state | smooth and deburred with the round curved corners |
3.Rough Silk pattern laminated steel plates MSP-S-R used for INLAY (Prelam) sheet lamination-Features
Key Features:
1). The two sides are covered with protection foils (blue thin films) to ensure good protection on both surfaces. There is no glue left after the foil is removed before the plate is used at the first time.
2). Two sides have the silk pattern in the same quality.
3). There are no scratches, dents, stripes shadows and dust on plate surfaces.
4). The edges are smooth and deburred with the round curved corners.
5). After lamination, the plates are not sticking to the laminated plastic sheets.
4.Rough Silk pattern laminated steel plates MSP-S-R used for INLAY (Prelam) sheet lamination-Packing
