0.1mm A4 Smart Card Material Magnetic Stripe Coated Overlay Film

0.1mm A4 Smart Card Material Magnetic Stripe Coated Overlay Film

Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MCO-MS

Payment & Shipping Terms:

Minimum Order Quantity: 20000 sheets
Price: Negotiable
Packaging Details: 100/200 sheets per bag or as per customer requirements.
Delivery Time: 10-15working days
Payment Terms: Western Union, MoneyGram, T/T, D/P, D/A, L/C
Supply Ability: 6 million square meters per month
Get Best Price Contact Now

Detail Information

Brand: LUCKY Size Tolerance: +/-0.5 Mm In Length And Width, +/-5% In Thickness.
Surface: Transparent With One-side Glue Coating Packaging Details: Wrapped In PE Bag And Carton Shipped In Wooden Pallet
Supply Ability: 50000000 Piece/Pieces Per Month Loading Port: Shanghai, Or Any Port Of China
High Light:

A4 Smart Card Material

,

0.1mm Smart Card Material

Product Description

0.1mm A4 Size Magnetic Stripe Coated Overlay Film For Smart Card Material



1. Technical Specification of 0.1mm A4 Size Magnetic Stripe Coated Overlay Film For Smart Card Material

PVC coated overlay with magnetic stripes MCO-MS is applied with standard magnetic stripe. It applies the high-quality magnetic stripe made by LUCKY China. It can be directly laminated with the printing sheets in the card laminator before punched into standard magnetic card. It features high adhesion, no color change and deformation with long aging life after the process of lamination.

Technical Parameters:
1. Size: in sheet, A4, A3 or as per customer requirements

2. Coated overlay thickness range in mm: 0.04,0.05,0.06,0.08,0.10

3. Magnetic stripe feature: HICO/LOCO, standard width 12.7mm, black color, Peelable transfer model, Brand: LUCKY

4. Size tolerance: +/-0.5 mm in length and width, +/-5% in thickness.

5. Color: transparent with one-side glue coating.

6. Package method: 100/200 sheets per bag or as per customer requirements.

7. Storage condition: Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight.

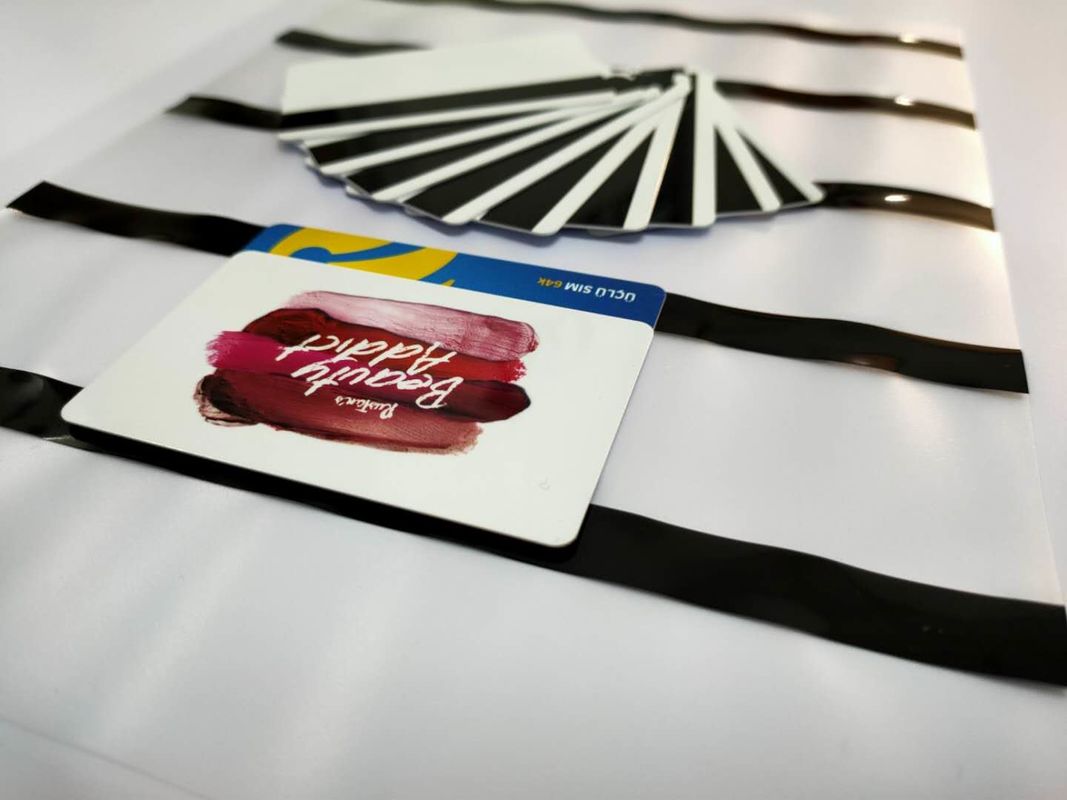

0.1mm A4 Smart Card Material Magnetic Stripe Coated Overlay Film 0



2. Characters of 0.1mm A4 Size Magnetic Stripe Coated Overlay Film For Smart Card Material

Coated overlay with magnetic strip hico 2750 oe, used for card making and laminating ,one side is with magnetic strip,another side for laminating.

Size A4, A3 or as per customer requirements
Coated overlay thickness range in mm 0.04,0.05,0.06,0.08,0.10
Magnetic stripe feature HICO/LOCO, standard width 12.7mm, black color, Peelable transfer model, Brand: LUCKY
Size tolerance +/-0.5 mm in length and width, +/-5% in thickness.
Color transparent with one-side glue coating
Package method 100/200 sheets per bag or as per customer requirements
Storage condition Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight.

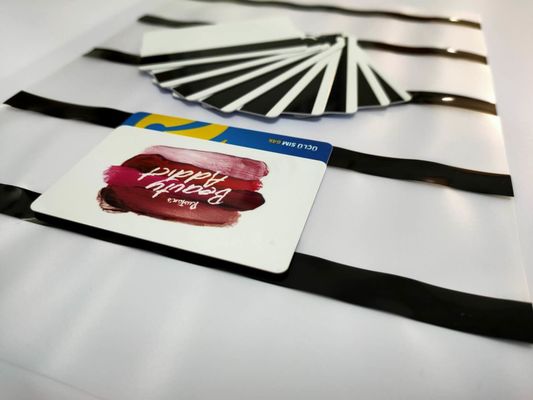

0.1mm A4 Smart Card Material Magnetic Stripe Coated Overlay Film 1

Specifications:

Thickness of overlay 0.04~0.1mm
Size Sheet size or Roll size, any size as your requirement
Classify HI_CO 2750OE, LO_CO 300OE
Color Clear (Transparent)
Glue Coated YES



3.More Features of 0.1mm A4 Size Magnetic Stripe Coated Overlay Film For Smart Card Material

Features

Chemically stable.

♦ PVC Coated Overlay with Black Magnetic Stripe.

♦ One side is coated with hot-melt glue.

♦ High bonding strength makes high quality cards.

♦ Goes well with offset , screen or inkjet printed pvc sheets.

♦ applicable for press lamination type.
♦ Easy to use, simplify swipe cards production process.
♦ anti-abasion, extend card life.

0.1mm A4 Smart Card Material Magnetic Stripe Coated Overlay Film 2
