A3 0.3mm Digital Printing PVC Sheets For HP Indigo Printer
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MDP-W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20000 sheets or 2 tons |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 50 or 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets |
| Delivery Time: | 10-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 million square meters per month |
|
Detail Information |
|||
| Product Name: | PVC Digital Printing Sheet | Thickness Tolerance: | +/-5% |
|---|---|---|---|
| Squareness: | ≤1 Mm/m | Density: | 1.42±0.05g/cm3 |
| Appearance: | The Color Is Even, No Black Impurity Spots, No Obvious Scratch | Sheet Surface: | Digital Ink Coatings On Both Sides |
| High Light: | 0.3mm Digital Printing PVC Sheets,HP Indigo Printer PVC Sheets,A3 Digital Printing PVC Sheets |
||
Product Description

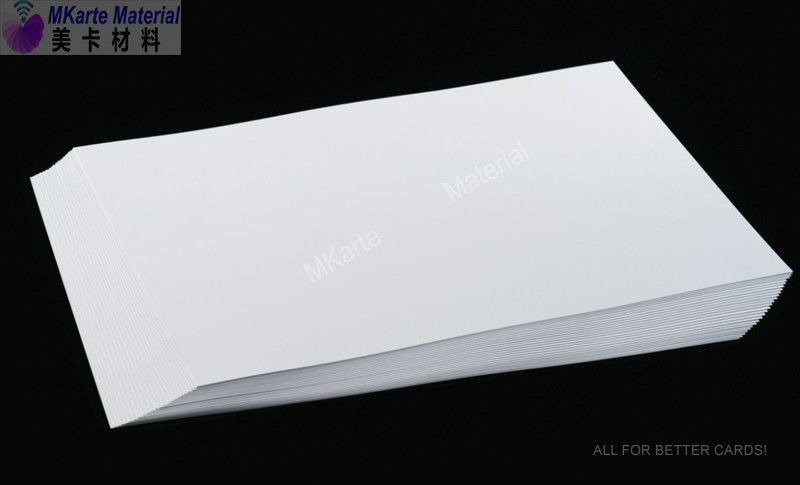

Customized Size 0.3mm Digital Printing PVC Sheets For HP Indigo Printer
1.Introduction of Customized Size 0.3mm Digital Printing PVC Sheets For HP Indigo Printer

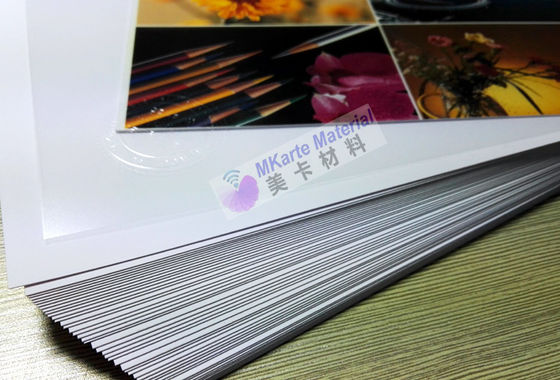

It is suitable for the whole series of HP Indigo printers. It could be printed directly with high definition and real color images.
● High resolution images.
● Excellent ink adhesion, strong peeing strength after lamination with the matching Coated Overlay .
● No crack occurs on the printed images after lamination at high temperature.
Parameters:
1. Size: A4, A3 or as per customer requirements
2. Thickness: 0.15mm-0.40mm
3. Color : White (MIP-W model)/Super White (MIP-SW)
4. Package method: 50 or 100 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets.
5. Storage condition: Sealed, moisture-proof, room temperature under 40℃
Size tolerance:+/-0.5 mm in length and width, +/-5% in thickness
2. Description of Customized Size 0.3mm Digital Printing PVC Sheets For HP Indigo Printer

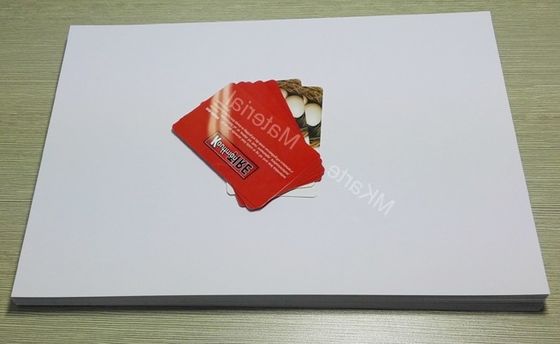

Our PVC sheet can be made Bank card, Credit card, Membership card, SIM card and so on.
It can make laminated or non-laminated cards,it can be printed, coated, jetted with all colors, punched.
1. Smooth and Uniform Surface
It is waterproof and has very good smooth surface, and is non-deformable.
2. Reliable Electrical Insulation
It is widely used for different electrical equipment.
3. Excellent Chemical and Corrosion Resistance
It can withstand the erosion of a variety of chemicals.
4. Good Impact Resistance
It has good impact resistance, pressure-resisting and durability.
5. Easily Formed
It is easily formed due to good plasticity, which is suitable for die cutting, vacuum forming and folding.
| ink coating layout | digital ink coatings on both sides |
| color | white or super white |
| Package method | 50/100/200 sheets per bag, 10 bags per paper carton |
| Thickness | 0.1mm-0.40mm (tolerance +/-5%) |
3. Test Report of Customized Size 0.3mm Digital Printing PVC Sheets For HP Indigo Printer
| Product test report | ||||
| Product Name: PVC Digital Printing Sheet | ||||
| Inspected Items | Unit | Inspection Standard | Test Result | |
| Appearance | The color is even, No black impurity spots, No obvious scratch |
Meet the requirements | ||
| Length | mm | ±1 | OK | |
| Width | mm | ±1 | OK | |
| Thickness | mm | ±10% | OK | |
| Squareness | mm/m | ≤1 | 0.4 | |
| Density | g/cm3 | 1.42±0.05 | 1.41 | |
| Chromatic aberration | ∆E | ≤1.0 | 0.51 | |
| Pulling Strength | MD | MPa | ≥45 | 47 |
| CD | ≥43 | 43.1 | ||
| Roughness Ra |
4# | ṷ m | 0.7～1.8 | 1.28 |
| 5# | ṷ m | 0.7～1.8 | 0.97 | |
| Roughness Rz |
4# | ṷ m | 4～12 | 7.912 |
| 5# | ṷ m | 4～12 | 6.91 | |
| Surface Tension | 4# | Dynes/cm | ≥34 | 34.5 |
| 5# | ≥34 | 34 | ||
| Heating shrinkage rate | MD | % | ≤-6.0 | -2 |
| CD | ≤+2.2 | 0 | ||
| Whiteness | 96.2 | |||
| Transmittance | % | 5.5 | ||
| Vicat softening point | ℃ | 78±2 | 78.9 | |
