Strong Adhesion Level Digital Printing Pvc Coated Overlay

Strong Adhesion Level Digital Printing Pvc Coated Overlay

Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MCO-W

Payment & Shipping Terms:

Minimum Order Quantity: 30000 sheets or 2 tons
Price: USD 0.02-0.2 per sheet
Packaging Details: by reel or 500 sheets per bag/4-8 bags per paper carton, or as per customer requirements. All the cartons are firmly piled up and fixed on the solid plywood pallet.
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 million square meters or 5 million tons per month
Get Best Price Contact Now

Detail Information

Color: Transparent After Lamination Normal Thickness: 0.04 - 0.10mm
Package Method: By Reel Or 500 Sheets Per Bag/4-8 Bags Per Paper Carton, Or As Per Customer Requirements. All The Cartons Are Firmly Piled Up And Fixed On The Solid Plywood Pallet. Aging Time (65℃ Temp./95% Humidity ): >200 Hours
Vicat Softening Point: 72±2 ℃ Tensile Strength: ≥40 MPa
High Light:

digital printing pvc coated overlay

,

strong adhesion pvc coated overlay

,

pvc coated overlay strong adhesion

Product Description

Transparent PVC Coated Overlay With Strong Adhesion Level for digital printing

1. Transparent PVC Coated Overlay With Strong Adhesion Level for digital printing- Introduction



PVC Coated Overlay MCO-W model is suitable for laminating with most PVC sheets printed by various printers. It features high adhesion, no color change and deformation.
It is applicable to almost all sheets printed by various ink. It features excellent peeling strength and long aging time.

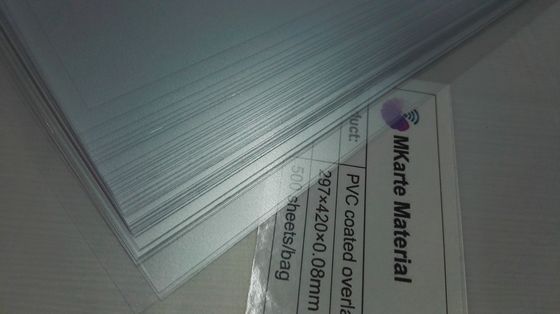

Strong Adhesion Level Digital Printing Pvc Coated Overlay 0

Strong adhesive coated overlay for card

1).Glue Type: Water based.
2).Thickness range: 40-100 Micron
3).Roughness: Both sides matte
4).Inner Core Diameter: 3"(76mm)

Descriptions :

Overlay with a layer of thermal glue on the surface, thus PVC printing sheet can stick fast with the core sheet. It’s essential function is to be covered on PVC cards from top to bottom. With the help of heating and pressure from laminator, overlay and core will strongly stick to each other, and form a very bright surface on the card

Characteristic:

Various type coated overlay can be laminated well with inkjet core, offset core, digital printing core (HP Indigo, MGI DP 60, Xerox)



2. Transparent PVC Coated Overlay With Strong Adhesion Level for digital printing- Technical parameters

Strong Adhesion Level Digital Printing Pvc Coated Overlay 1

Parameters:

Size in reel or sheet, A4, A3 or as per customer requirements
Normal thickness 0.04,0.05,0.06,0.08,0.10mm
Color transparent with one-side glue coating.
Package method by reel or 500 sheets per bag/4-8 bags per paper carton, or as per customer requirements. All the cartons are firmly piled up and fixed on the solid plywood pallet.
Storage condition Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight.

Technical Parameters:

Item Parameters
Vicat softening point    72±2 ℃
Heating Shrinkage ratio    ≤10 %
Tensile Strength ≥40 MPa
Normal thickness in mm 0.04,0.05,0.06,0.08,0.10
Peel Strength (90°, 300mm/min) ≥6.0 N/cm
Aging time (65℃ temp./95% humidity ) >200 hours
 Suitable ink offset and silk screen printing UV ink, Pigment and dye ink for inkjet printing as well as digital printing ink

3. Transparent PVC Coated Overlay With Strong Adhesion Level for digital printing- Application

It has high peel strength with electronic ink, small lamination discoloration, not easy to cause deformation, and wide application.

It is mainly used for various magnetic stripe cards, phone cards, membership cards and other PVC cards, adhesive force is more than 3.5N. .

Strong Adhesion Level Digital Printing Pvc Coated Overlay 2

4. Transparent PVC Coated Overlay With Strong Adhesion Level for digital printing- Packing

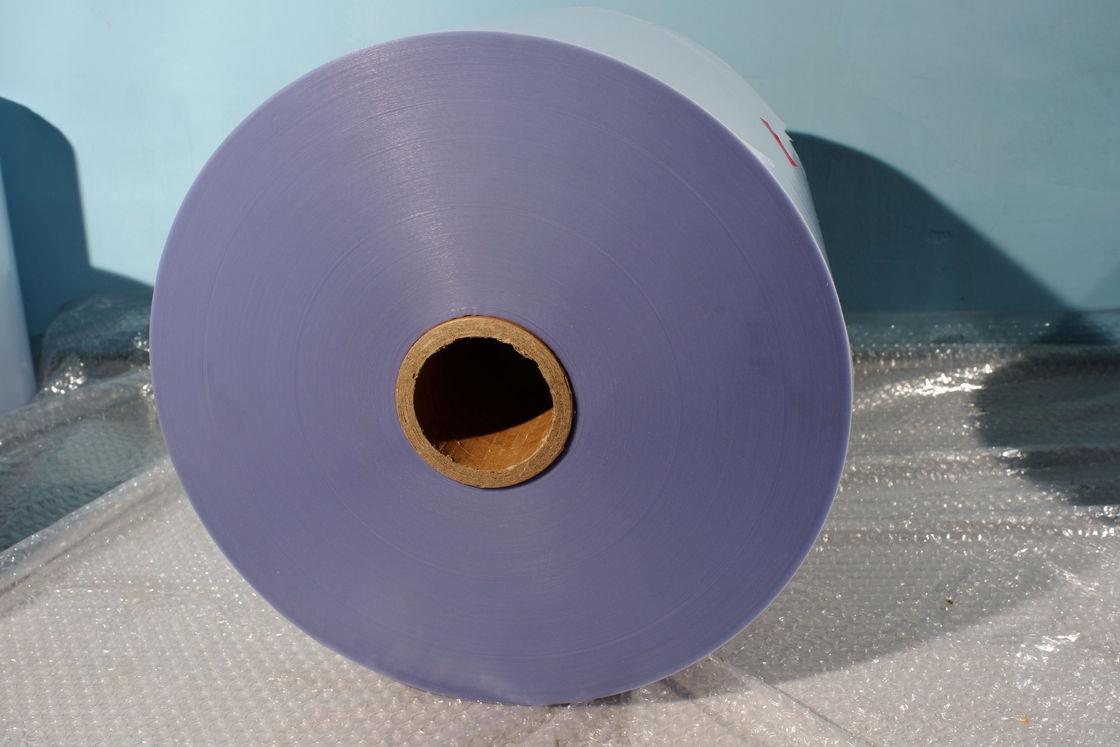

Strong Adhesion Level Digital Printing Pvc Coated Overlay 3

Product Test Report

Product Name:Normal PVC coated overlay
SN Inspected items Unit Inspection standard Test result
1 Fabric width mm ±1 OK


2 Length mm ±1 OK
3 Width mm ±1 OK
4 Thickness mm ±10% OK
5 Squareness mm ≤1 0.3
6 Density g/cm3 1.25±0.05 1.26
7 Pulling Strength MD MPa ≥40 42
CD ≥35 40
8 Heating
Shrinkage rate
MD % ≤+30 26
CD ≥-45 -42
9 Vicat softening point   76±4 75.8
10 peeling strength   N ≥3.5 4.9
11 Surface quality The surface is flat without wrinkles, holes or glue drops, and the color is correct.
