Fine And Rough Silk Pattern Stainless Laminated Plate For Pvc Card Lamination

Fine And Rough Silk Pattern Stainless Laminated Plate For Pvc Card Lamination

Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MSP-S-R

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: USD 5-15 per sheet or negotiable
Packaging Details: plywood box with soft protection material inside
Delivery Time: 10-20 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,, D/A, D/P
Supply Ability: 40 thousand pieces per month
Get Best Price Contact Now

Detail Information

Surface Hardness:: <=HB250~260(aroundHRC25~26) Thickness: 1.0 Mm
Plate Flatness Level: Maximum 1 Mm/m Surface Pattern: Fine Or Rough Silk
Thermal Transmission:: 0.04cal/℃.cm.sec At 20℃ Surface Roughness:: About 0.6Ra
High Light:

pvc card lamination laminated plate

,

stainless laminated plate

,

silk pattern laminated plate

Product Description

Fine and Rough Silk Pattern Stainless Laminating Steel Plate For PVC Card Lamination

1.Fine and Rough Silk Pattern Stainless Laminating Steel Plate For PVC Card Lamination- Introduction

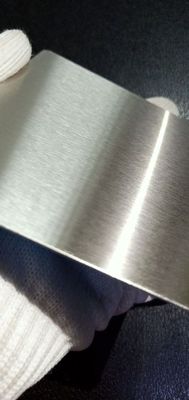

Rough Silk Finish Lamination Steel Plates MSP-S-R have  heavy silk finish surfaces on both sides and are designed for laminating plastic card sheets or RFID card Prelam (INLAY) sheets in the cad laminator. It can ensure perfect plastic card surface finish after lamination.   Our plates are being widely used by many card factories in both China and foreign countries worldwide.

Fine And Rough Silk Pattern Stainless Laminated Plate For Pvc Card Lamination 0

2.Fine and Rough Silk Pattern Stainless Laminating Steel Plate For PVC Card Lamination-Technical Parameters:

Plate size(L×W) A4, A3 or custom-made size
Plate thickness 1.0 mm (Thickness tolerance: ±0.05mm)
Dimension tolerance ±1mm for length and width.
Plate flatness level: Plate flatness level:
Surface pattern Rough silk
Surface hardness HRC80±20
Thermal transmission 0.04cal/℃.cm.sec at 20℃
Packaging box solid plywood carton with soft cushion protection inside.
Edge state smooth and deburred with the round curved corners

3.Fine and Rough Silk Pattern Stainless Laminating Steel Plate For PVC Card Lamination- Key Features:

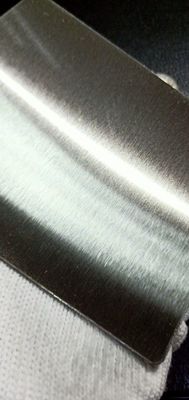

1.) The two sides are covered with protection foils (blue thin films) to ensure good protection on both surfaces. There is no glue left after the foil is removed before the plate is used at the first time.

2). Two sides have the silk pattern in the same quality.

3). There are no scratches, dents, stripes shadows and dust on plate surfaces.

4). The edges are smooth and deburred with the round curved corners.

5). After lamination, the plates are not sticking to the laminated plastic sheets.

Fine And Rough Silk Pattern Stainless Laminated Plate For Pvc Card Lamination 1



4.Fine and Rough Silk Pattern Stainless Laminating Steel Plate For PVC Card Lamination- Application

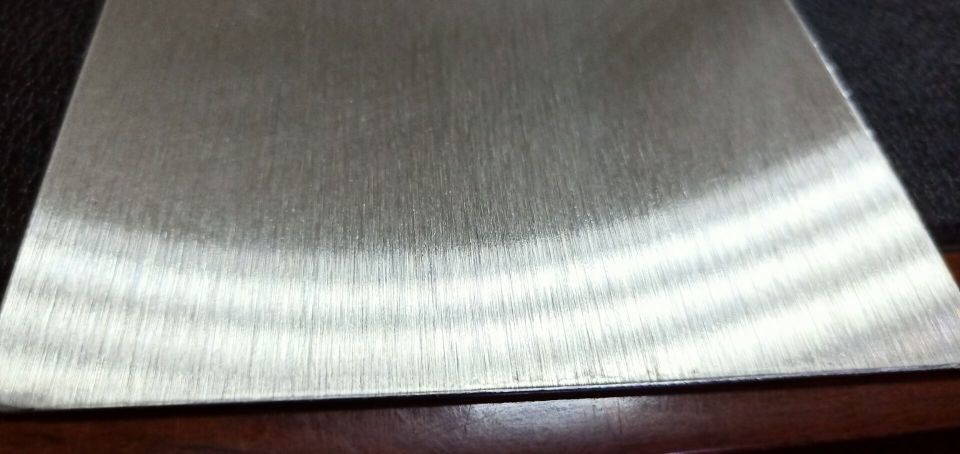

Production process of cold-rolled stainless steel plates for card lamination use



The lamination steel plates apply the #430 cold rolled stainless steel plates with the thickness of 0.6 or 0.8 mm or 1.0mm. The general production processes are summarized as below:

Step1 Raw Material Selection : Hot rolled strip is used as a raw material for cold rolled stripe.

Step 2 Scouring/Pickling : Use a pickling unit to remove iron oxide from the surface of hot rolled strip.

Step 3 Cold rolling : After multiple passes of cold rolling, the finished steel strips shall meet the size, shape and surface quality requirements.

Step 4 Heat treatment : Annealing the cold rolled strip to achieve the desired properties.

Step 5 Finishing: the final product is obtained by leveling, shearing and packaging the annealed strip steel coil.

Step 6 Flattening and film application : Release #430 stainless steel sheet coil, then flatten it on the flattening line, cut it into standard size

stainless steel plate, and attach protective film on both sides of the steel plate to prevent scratches of the steel plate.

Step 7 Tailor cutting : According to the size requirements of customers, the large steel plate is precisely cut by using the shearing machine.

Step 8 Visual Inspection : Make a comprehensive inspection of each finished steel plate, check the dimension, thickness and surface quality, and eliminate unqualified products. If it is matte finish steel plate, according to customer's requirements, sandblasting machine is used on both sides of the steel plate to achieve matte finish effect, and then apply protection films on both sides before quality inspection.

Step 9 Packaging and labeling : Packaging the qualified products by using fumigation-free wooden cases, and inside the wooden cases, the soft materials are applied to maximize the protection of steel plates during the process of handling and transportation. The proper label or logo is applied on the case surface before shipment.

Fine And Rough Silk Pattern Stainless Laminated Plate For Pvc Card Lamination 2

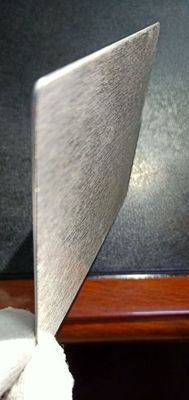

5.Fine and Rough Silk Pattern Stainless Laminating Steel Plate For PVC Card Lamination- Packing



Fine And Rough Silk Pattern Stainless Laminated Plate For Pvc Card Lamination 3
