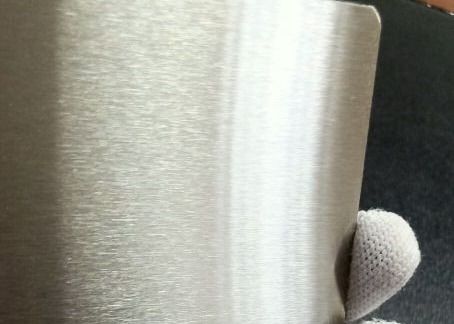

1.0mm Silk Pattern Card Prelam Laminated Steel Plate

1.0mm Silk Pattern Card Prelam Laminated Steel Plate

Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MSP-S

Payment & Shipping Terms:

Minimum Order Quantity: 50 sheets
Price: Negotiable
Packaging Details: Strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport
Delivery Time: 7 - 15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, , D/P
Supply Ability: 30 thousand sheets per month
Get Best Price Contact Now

Detail Information

Normal Size: 210*297mm, A3 Or Custom-made Size Surface Feature: Two Sides Have The Silk Pattern In The Same Quality
Plate Edges: The Edges Are Smooth And Deburred With The Round Curved Corners Usage: For Plastic Card Lamination Worked With Laminator
Plate Thickness: 1.0 Mm (Thickness Tolerance: ±0.05mm) Packaging Box: Solid Plywood Carton With Soft Cushion Protection Inside
High Light:

1MM laminated steel plate

,

laminated steel plate for smart card

,

card laminator laminated steel plate

Product Description

1.0mm Silk Pattern Card Prelam Laminated Steel Plates For Smart Card Laminator Use



1. Product Usage of 1.0mm Silk Pattern Card Prelam Laminated Steel Plates For Smart Card Laminator Use

They are mainly used for INLAY (Prelam) sheet lamination to realize silk rough surface of INLAY sheet after lamination . It can well ensure perfect plastic card surface finish after lamination . Our plates are being widely used by many card factories in both China and foreign countries worldwide .* Customer design can be accept.

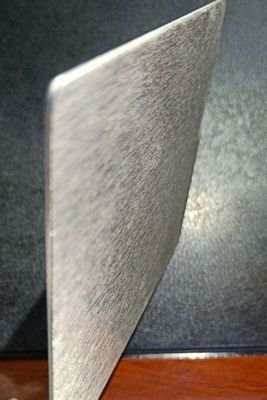

1.0mm Silk Pattern Card Prelam Laminated Steel Plate 0



2. Product Technical Data of 1.0mm Silk Pattern Card Prelam Laminated Steel Plates For Smart Card Laminator Use

Technical Parameters :

Plate size(L×W): A4, A3 or custom-made size

Plate thickness: 1.0 mm (Thickness tolerance: ±0.05mm)

Dimension tolerance: ±1mm for length and width.

Plate flatness level: maximum 1 mm.m

Surface pattern: Fine silk/Rough silk

Surface hardness: HRC80±20

Thermal transmission: 0.04cal/℃.cm.sec at 20℃

Packaging box: solid plywood carton with soft cushion protection inside.

Thickness range 1.0mm (Thickness tolerance: ±0.05mm)
Dimension tolerance ±1mm
Plate size(L×W) A4, A3 or custom-made size
Plate flatness level maximum 1 mm
Surface pattern Silk pattern
Surface hardness HRC80±20
Thermal transmission 0.04cal/℃.cm.sec at 20℃
Edge state smooth and deburred with the round curved corners
Packaging box solid plywood carton with soft cushion protection inside.

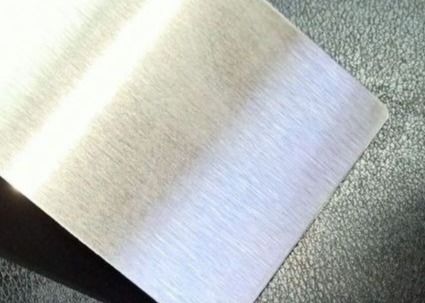

1.0mm Silk Pattern Card Prelam Laminated Steel Plate 1


3. Prodction process of 1.0mm Silk Pattern Card Prelam Laminated Steel Plates For Smart Card Laminator Use

The lamination steel plates apply the #430 cold rolled stainless steel plates with the thickness of 0.6 or 0.8 or 1.0mm. The general production processes are summarized as below:

Step1 Raw Material Selection: Hot rolled strip is used as a raw material for cold rolled stripe.

Step 2 Scouring/Pickling: Use a pickling unit to remove iron oxide from the surface of hot rolled strip

Step 3 Cold rolling: After multiple passes of cold rolling, the finished steel strips shall meet the size, shape and surface quality requirements.

Step 4 Heat treatment: Annealing the cold rolled strip to achieve the desired properties.

Step 5 Finishing: The final product is obtained by leveling, shearing and packaging the annealed strip steel coil

Step 6 Flattening and film application: Release #430 stainless steel sheet coil, then flatten it on the flattening line, cut it into standard size stainless steel plate, and attach protective film on both sides of the steel plate to prevent scratches of the steel plate.

Step 7 Tailor cutting: According to the size requirements of customers, the large steel plate is precisely cut by using the shearing machine.

Step 8 Visual Inspection: Make a comprehensive inspection of each finished steel plate, check the dimension, thickness and surface quality, and eliminate unqualified products. If it is matte finish steel plate, according to customer's requirements, sandblasting machine is used on both sides of the steel plate to achieve matte finish effect, and then apply protection films on both sides before quality inspection.

Step 9 Packaging and labeling: Packaging the qualified products by using fumigation-free wooden cases, and inside the wooden cases, the soft materials are applied to maximize the protection of steel plates during the process of handling and transportation. The proper label or logo is applied on the case surface before shipment.

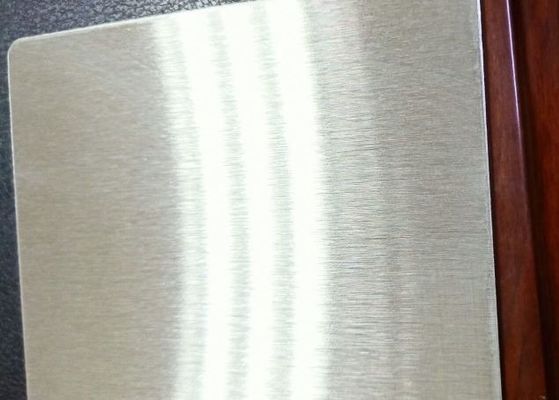

1.0mm Silk Pattern Card Prelam Laminated Steel Plate 2
