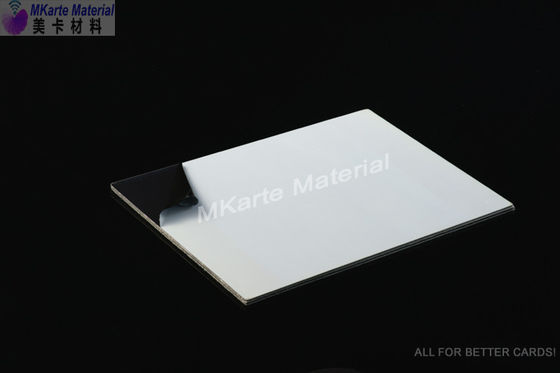

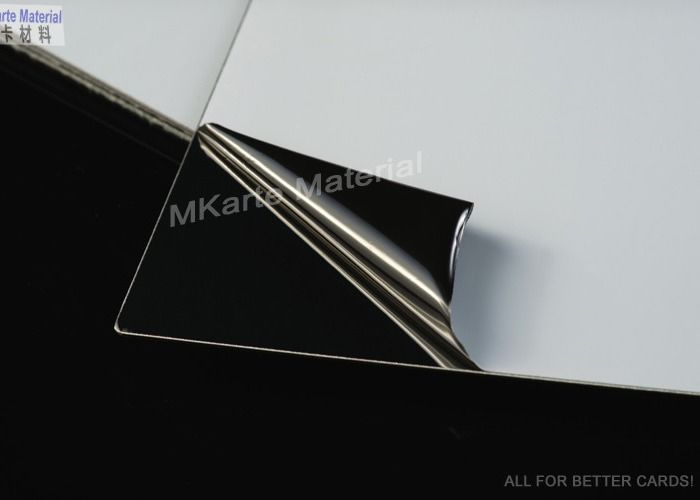

Mirror /Ultra Glossy Finish A3 Size Laminated Steel Plate For Smart Card Laminating
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MSP-G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | solid plywood carton with soft cushion protection inside |
| Delivery Time: | 10 - 20 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/P, , D/P |
| Supply Ability: | 3000sheets per week |
|
Detail Information |
|||
| Appearance: | Mirror Finish On Both Sides | Shape: | By Sheet As Per Customer's Demand |
|---|---|---|---|
| Surface Roughness Value: | <0.3um | Material: | Stainess Plate |
| Feature: | There Are No Scratches, Dents, Stripes Shadows And Dust On Plate Surfaces | Loading Port: | Shenzhen Or Other Chinese Port |
| High Light: | A3 laminated steel plate,laminated steel plate A3,smart card laminated steel plate |
||
Product Description
Mirror /Ultraglossy Finish Laminated Steel Plates A3 Size For Smart Card Laminating
1. Mirror /Ultraglossy Finish Laminated Steel Plates A3 Size For Smart Card Laminating- Intoduction
Production Specification
There are five kinds of steel plates:
1).Glossy steel plates
normal mirror effect,for planographic code and inkjet code.
2).Matte steel plates
on te surface there are tiny lights,thin and lubricious,for planographic code and inkjet code.
3).Coarse matte steel
Platoon lights on the surface,too coarse for planographic code.
4).Moderate coarse matte steel plates
no lights on the surface,moderate coarse.
5).Fine matte steel plates
no lights on the surface, relatively thin and lubricious, for paleographic code and
inkjet code.
Size:100mm*120mm;210mm*297mm;210mm*320mm;325mm*480mm;340mm*500mm
Thickness:0.5mm, 0.6mm,0.7mm, 0.8mm, 1mm
2. Mirror /Ultraglossy Finish Laminated Steel Plates A3 Size For Smart Card Laminating- More description
2. Two sides are made glossy in the same quality .
3. There are no scratches , dents, stripes shadows and dust on plate surfaces .
4. The edges are smooth and deburred with the round curved corners .
5. After lamination , the plates are not sticking to the laminated plastic sheets .
Technical Parameters:
| Surface roughness value | <0.3um |
| Plate Thickness | 0.6mm, 0.8mm (Thickness tolerance: ±0.05mm) |
| Plate size ( L×W ) | A3, A4 or custom-made size |
| Plate flatness level | maximum 1 mm |
| Glossy plate surface glossiness | over 800 GU at 20° (both sides) |
| Surface hardness | HRC80±20 |
| Thermal transmission | 0.04cal/℃.cm.sec at 20℃ |
| Edge state | smooth and deburred with the round curved corners |
| Packaging box | Strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport |
3. Mirror /Ultraglossy Finish Laminated Steel Plates A3 Size For Smart Card Laminating- Features
Features:
1). Card laminator Accessories
2). 800or 600 Micron thickness
3). Characteristic: heat-resistant, high elasticity
4). Glossy finish, matte finish, mirror finish,etc.
5). Size & thickness on request
6). High-grade stainless steel
| Plate size(L×W) | A4, A3 or custom-made size |
| Plate thicknes | 0.6mm, 0.8mm (Thickness tolerance: ±0.05mm) |
| Dimension tolerance | ±1mm for length and width. |
| Surface roughness | Glossy finish |
| Thermal transmission | 0.04cal/℃.cm.sec at 20℃ |
| Packaging box | solid plywood carton with soft cushion protection inside |
* Customer design can be accept.
4. Mirror /Ultraglossy Finish Laminated Steel Plates A3 Size For Smart Card Laminating- Packing
Packaging box: solid plywood carton with soft cushion protection inside. 100-200sheets/package or as per custom-made
