Transparent 0.04-1.0mm Thickness Pvc Coated Overlay With Strong Adhesion Level
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MCO-W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30000 sheets or 2 tons |
|---|---|
| Price: | USD 0.02-0.2 per sheet |
| Packaging Details: | by reel or 500 sheets per bag/4-8 bags per paper carton, or as per customer requirements. All the cartons are firmly piled up and fixed on the solid plywood pallet. |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 million square meters or 5 million tons per month |
|
Detail Information |
|||
| Color: | Transparent After Lamination | Normal Thickness: | 0.04,0.05,0.06,0.08,0.10mm |
|---|---|---|---|
| Package Method: | By Reel Or 500 Sheets Per Bag/4-8 Bags Per Paper Carton, Or As Per Customer Requirements. All The Cartons Are Firmly Piled Up And Fixed On The Solid Plywood Pallet. | Storage Condition: | Sealed, Moisture-proof, Room Temperature Under 40℃, Keep It Horizontally, Avoid Heavy Pressing And Direct Sunlight. |
| Vicat Softening Point: | 72±2 ℃ | Heating Shrinkage Ratio: | ≤10 % |
| Tensile Strength: | ≥40 MPa | Suitable Ink: | Offset And Silk Screen Printing UV Ink, Pigment And Dye Ink For Inkjet Printing As Well As Digital Printing Ink |
| High Light: | transparent pvc coated overlay,0.04mm pvc coated overlay,1mm pvc coated overlay |
||
Product Description
Transparent PVC Coated Overlay 0.04-1.0mm thickness With Strong Adhesion Level
1. Transparent PVC Coated Overlay 0.04-1.0mm thickness With Strong Adhesion Level- Introduction
PVC Coated Overlay MCO-W model is suitable for laminating with most PVC sheets printed by various printers. It features high adhesion, no color change and deformation.
It is applicable to almost all sheets printed by various ink. It features excellent peeling strength and long aging time.
2.Transparent PVC Coated Overlay 0.04-1.0mm thickness With Strong Adhesion Level- Parameters:
| Size | in reel or sheet, A4, A3 or as per customer requirements |
| Normal thickness | 0.04,0.05,0.06,0.08,0.10mm |
| Color | transparent with one-side glue coating. |
| Package method | by reel or 500 sheets per bag/4-8 bags per paper carton, or as per customer requirements. All the cartons are firmly piled up and fixed on the solid plywood pallet. |
| Storage condition | Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight. |
3.Transparent PVC Coated Overlay 0.04-1.0mm thickness With Strong Adhesion Level- Technical Parameters:
Brief Introduction:
PVC Coated Overlay is suitable for laminating with conventional ink and UV ink. It could reach excellent peel strength as using Water Based Laminating Varnish (B1001A). It provides superior aging resistance performance to other similar products, no color change and deformation after lamination. Laserable Coated Overlay is also offered.
◆Characteristics:
● Suitable for conventional ink and UV ink, excellent peel strength even with pearl ,gold ,silver and dark color inks.
● Keep the fluorescent anti-forgery mark clearly.
● Non-Sticky and easy for magnetic stripe tape-laying.
● Abrasion resistant , prolong the life of cards.
● Environment friendly, no solvent or gas discharged.
| Item | Parameters |
| Vicat softening point | 72±2 ℃ |
| Heating Shrinkage ratio | ≤10 % |
| Tensile Strength | ≥40 MPa |
| Normal thickness in mm | 0.04,0.05,0.06,0.08,0.10 |
| Peel Strength (90°, 300mm/min) | ≥6.0 N/cm |
| Aging time (65℃ temp./95% humidity ) | ＞200 hours |
| Suitable ink | offset and silk screen printing UV ink, Pigment and dye ink for inkjet printing as well as digital printing ink |
4.Transparent PVC Coated Overlay 0.04-1.0mm thickness With Strong Adhesion Level- Application

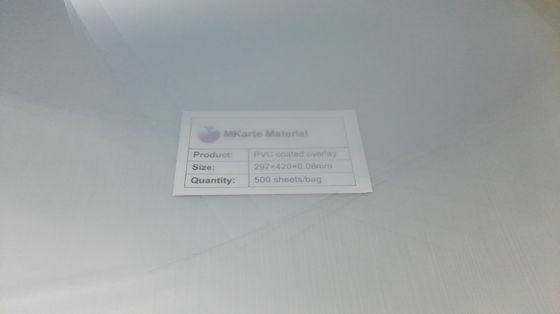

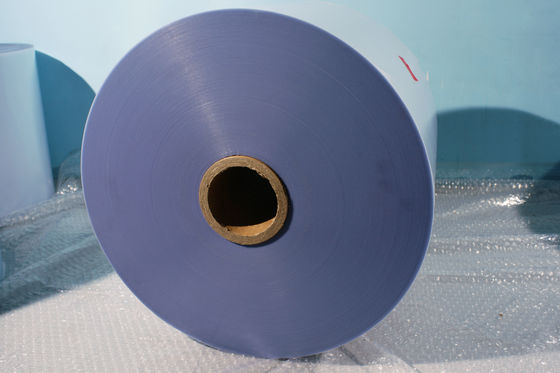

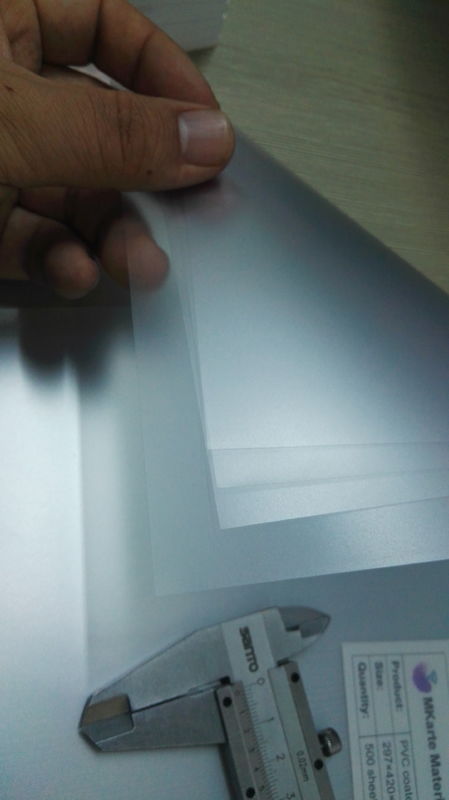

5.Transparent PVC Coated Overlay 0.04-1.0mm thickness With Strong Adhesion Level- Packing
◆Packing:
Outside:Carton Inside:PE bag
◆Storage:
Keep package sealed and moisture-proof , room temperature under 40℃.
Stacking height should not exceed one meter.
Keep horizontally, avoid oppress heavily and direct sun light.
Shelf life: Two years.
