0.8mm A3 Size Card Lamination Steel Plate Mirror / Glossy Finish
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MSP-G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Sheets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport |
| Delivery Time: | 7 - 15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/P, , D/P |
| Supply Ability: | 30 thousand sheets per month |
|
Detail Information |
|||
| Sheet Size: | 420*297mm Or Custom-made Size | Thickness: | 0.6mm, 0.8mm |
|---|---|---|---|
| Thickness Tolerance:: | (±0.05mm) | Appearance: | With Protection Foils (blue Thin Films) On Each Side |
| Thermal Transmission: | 0.04cal/℃.cm.sec At 20℃ | Packing: | Plywood Case With Soft Film Inside For Long Distance Trasport |
| High Light: | card lamination steel plate,0.8mm lamination steel plate,glossy finish lamination steel plate |
||
Product Description

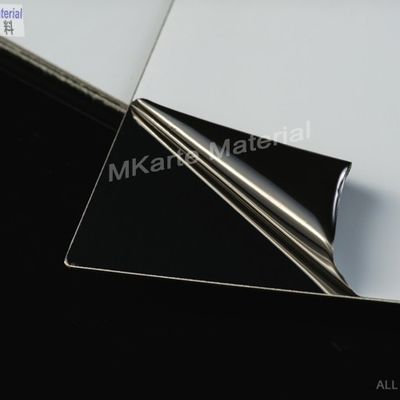

0.8mm A3 Size Mirror/Glossy Finish Card Lamination Steel Plate
1. Introduction of 0.8mm A3 Size Mirror/Glossy Finish Card Lamination Steel Plate
Mirror/Glossy Card Lamination Steel Plate MSP-G are used for laminating plastic card sheets in the card laminator. It can ensure perfect plastic card surface finish after lamination. Our plates are being widely used by many card factories in both China and foreign countries worldwide.
* Customer design can be accept.
2. Product Features of 0.8mm A3 Size Mirror/Glossy Finish Card Lamination Steel Plate
Key Features:
1. The two sides are covered with protection foils (blue thin films) to ensure good protection on both surfaces. There is no glue left after the foil is removed before the plate is used at the first time.
2. Two sides are made glossy in the same quality.
3. There are no scratches, dents, stripes shadows and dust on plate surfaces.
4. The edges are smooth and deburred with the round curved corners.
5. After lamination, the plates are not sticking to the laminated plastic sheets.
| Thickness range | 0.6or 0.8mm (Thickness tolerance: ±0.05mm) |
| Dimension tolerance | ±1mm |
| Plate size(L×W) | A4, A3 or custom-made size |
| Plate flatness level | maximum 1 mm |
| Surface pattern | Glossy or mirror finish |
| Surface hardness | HRC80±20 |
| Thermal transmission | 0.04cal/℃.cm.sec at 20℃ |
| Edge state | smooth and deburred with the round curved corners |
| Packaging box | solid plywood carton with soft cushion protection inside. |
3. Prodction process of 0.8mm A3 Size Mirror/Glossy Finish Card Lamination Steel Plate
The lamination steel plates apply the #430 cold rolled stainless steel plates with the thickness of 0.6 or 0.8 or 1.0mm. The general production processes are summarized as below:
Step1 Raw Material Selection: Hot rolled strip is used as a raw material for cold rolled stripe.
Step 2 Scouring/Pickling: Use a pickling unit to remove iron oxide from the surface of hot rolled strip
Step 3 Cold rolling: After multiple passes of cold rolling, the finished steel strips shall meet the size, shape and surface quality requirements.
Step 4 Heat treatment: Annealing the cold rolled strip to achieve the desired properties.
Step 5 Finishing: The final product is obtained by leveling, shearing and packaging the annealed strip steel coil
Step 6 Flattening and film application: Release #430 stainless steel sheet coil, then flatten it on the flattening line, cut it into standard size stainless steel plate, and attach protective film on both sides of the steel plate to prevent scratches of the steel plate.
Step 7 Tailor cutting: According to the size requirements of customers, the large steel plate is precisely cut by using the shearing machine.
Step 8 Visual Inspection: Make a comprehensive inspection of each finished steel plate, check the dimension, thickness and surface quality, and eliminate unqualified products. If it is matte finish steel plate, according to customer's requirements, sandblasting machine is used on both sides of the steel plate to achieve matte finish effect, and then apply protection films on both sides before quality inspection.
Step 9 Packaging and labeling: Packaging the qualified products by using fumigation-free wooden cases, and inside the wooden cases, the soft materials are applied to maximize the protection of steel plates during the process of handling and transportation. The proper label or logo is applied on the case surface before shipment.
