Size A3 Pvc Sheet Hp Indigo One Side Digital Print Coating
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MDP-HP-SS-W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30000 sheets or 2 tons |
|---|---|
| Price: | Negotiable |

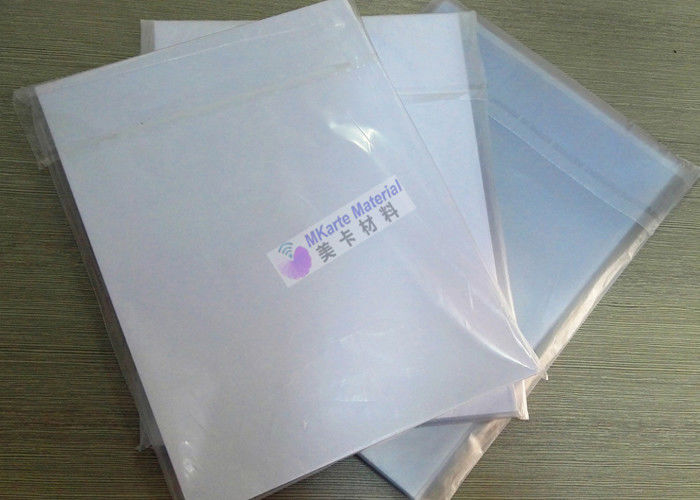

| Packaging Details: | 50 or 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 450,000 sheets Per week |
|
Detail Information |
|||
| Name: | One Side Digital Print PVC Sheets | Density: | 1.42±0.05g/cm3 |
|---|---|---|---|
| Heating Shrinkage Rate MD: | ≤-6.0% | Package Method: | 50/100/200 Sheets Per Bag, 10 Bags Per Paper Carton |
| Application: | Suitable For The Whole Series Of HP Indigo Printers | Storage: | Sealed, Moisture-proof, Room Temperature Under 40℃ |
| High Light: | size a3 pvc sheet,digital print coating a3 pvc sheet,one side pvc a3 sheet |
||
Product Description

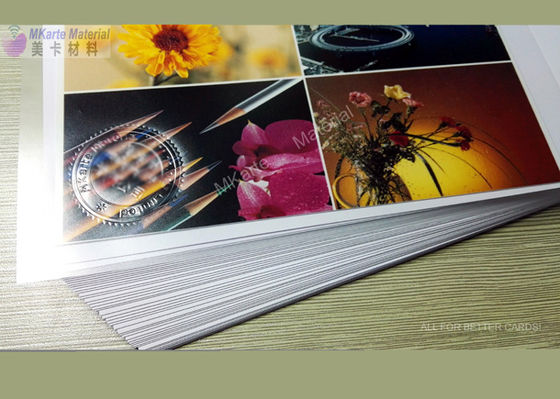

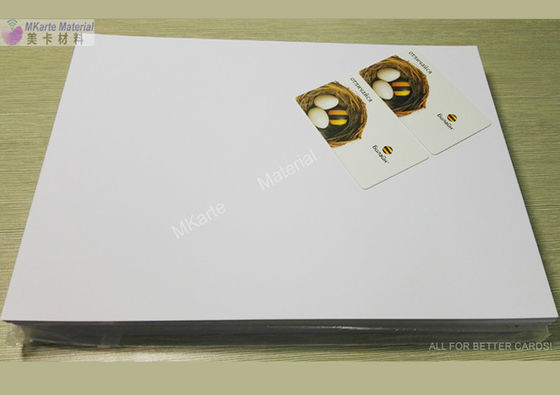

A3 Size HP Indigo With one side Digital Print Coating PVC Sheets
1. Product Introduction of A3 Size HP Indigo With one side Digital Print Coating PVC Sheets
It is suitable for the whole series of HP Indigo printers. It could be printed directly by digital printers with high definition and real color images.
● Specially designed for the whole series of HP Indigo printers. suitable for 4-color model printer such as S2000, S5600, S7600, etc.
● It has superior aging resistance performance comparing with other similar products. After 240h’s aging test (75℃, 95%RH), the peel strength is no less than 4.5N/cm.
● No crack occurs on the printed images after lamination at high temperature.
2. More Characters of A3 Size HP Indigo With one side Digital Print Coating PVC Sheets
PVC Plastic cards process in general :
1. Print directly to the surface of sheets
2. Hot press laminate with PVC coated overlay films when the ink dries.
3. Punch out cards from the fused materials.
4. Other art-works, such as embossing, hot stamping, hole punching, screen printing etc.
5. Finished cards.
| Normal Thickness | 0.15mm,0.17mm,0.18mm, 0.20mm,0.30mm,0.33mm and other |
| Size | In roll or in sheet , A4,A3 or custom-made ( ( tolerance +/-0.5mm ) |
| Instruction | Can be printed directly by digital printers with high definition images |
| Coating feature | digital print ink coating on one side and lamination glue coating on another side. |
| Packing | 50 or 100 or 200 sheets per bag , 10 bags per paper carton , and the cartons are piled up and firmly fixed on solid plywood pallets |
| Appearance | No crack occurs on the printed images after lamination at high temperature. |
3. Test report of A3 Size HP Indigo With one side Digital Print Coating PVC Sheets
| Product test report | ||||
| Product Name: PVC Digital Printing Sheet | ||||
| Inspected Items | Unit | Inspection Standard | Test Result | |
| Appearance | The color is even, No black impurity spots, No obvious scratch |
Meet the requirements | ||
| Length | mm | ±1 | OK | |
| Width | mm | ±1 | OK | |
| Thickness | mm | ±10% | OK | |
| Squareness | mm/m | ≤1 | 0.4 | |
| Density | g/cm3 | 1.42±0.05 | 1.41 | |
| Chromatic aberration | ∆E | ≤1.0 | 0.51 | |
| Pulling Strength | MD | MPa | ≥45 | 47 |
| CD | ≥43 | 43.1 | ||
| Roughness Ra |
4# | ṷ m | 0.7～1.8 | 1.28 |
| 5# | ṷ m | 0.7～1.8 | 0.97 | |
| Roughness Rz |
4# | ṷ m | 4～12 | 7.912 |
| 5# | ṷ m | 4～12 | 6.91 | |
| Surface Tension | 4# | Dynes/cm | ≥34 | 34.5 |
| 5# | ≥34 | 34 | ||
| Heating shrinkage rate | MD | % | ≤-6.0 | -2 |
| CD | ≤+2.2 | 0 | ||
| Whiteness | 96.2 | |||
| Transmittance | % | 5.5 | ||
| Vicat softening point | ℃ | 78±2 | 78.9 | |
