Customized Size Laminating Steel Plate Slight Matte Finish For Pvc Card Lamination
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MSP-M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | USD 5 -18 per sheet or negotiable |
| Packaging Details: | Export standard package.Strong plywood box with soft protection material inside |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 40 thousand pieces per month |
|
Detail Information |
|||
| Plate Size(L×W)：: | A4, A3 Or Custom-made Size | Surface Roughness Value Range:: | 0.3-1.5um |
|---|---|---|---|
| Thickness: | 0.6mm Or 0.8mm | Packaging Box: | Solid Plywood Carton With Soft Cushion Protection Inside. |
| Thermal Transmission: | 0.04cal/℃.cm.sec At 20℃ | Surface Roughness: | Slight Matte Finish (Ra Range 0.3-0.5μm) |
| Application: | Used For Pvc Card Sheet Lamination | Market: | USA,RUSSIA,BRAZIL,INDIA,THAILAND,KOREA And So On |
| High Light: | customized laminating steel plate,pvc card lamination laminating steel plate,slight matte finish pvc card material |
||
Product Description
Customerized Size Slight Matte Finish Laminated Steel Plate For PVC Card Lamination
1. Customerized Size Slight Matte Finish Laminated Steel Plate For PVC Card Lamination- Introduction

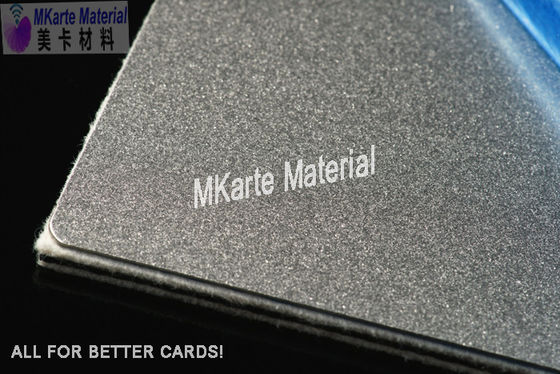

Slight Matte Finish Lamination Steel Plate MSP-M have matte finish surfaces on both sides and are designed for laminating plastic card sheets in the cad laminator. It can ensure perfect plastic card surface finish after lamination.
Key Features:

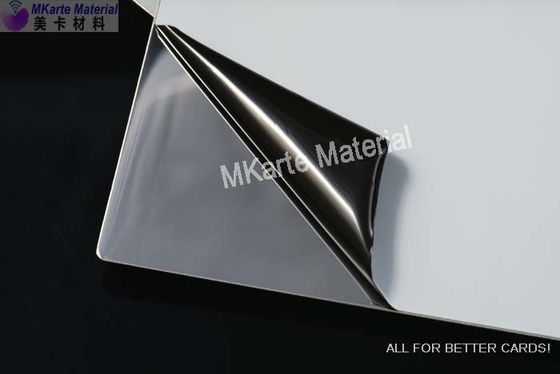

1). The two sides are covered with protection foils (blue thin films) to ensure good protection on both surfaces. There is no glue left after the foil is removed before the plate is used at the first time.
2). There are no scratches, dents, stripes shadows and dust on plate surfaces.
3). The edges are smooth and deburred with the round curved corners.
4). Two sides are made matte in the same quality.
5). After lamination, the plates are not sticking to the laminated plastic sheets.
2. Customerized Size Slight Matte Finish Laminated Steel Plate For PVC Card Lamination- Parameters
Technical Parameters:
| Plate size(L×W) | A4, A3 or custom-made size |
| Plate thicknes | 0.6mm, 0.8mm (Thickness tolerance: ±0.05mm) |
| Dimension tolerance | ±1mm for length and width. |
| Surface roughness | Slight matte finish (Ra range 0.3-0.5μm) |
| Thermal transmission | 0.04cal/℃.cm.sec at 20℃ |
| Packaging box | solid plywood carton with soft cushion protection inside |
Plate size(L×W): A4, A3 or custom-made size
Plate thickness: 0.6mm, 0.8mm (Thickness tolerance: ±0.05mm)
Dimension tolerance: ±1mm for length and width.
Plate flatness level: maximum 1 mm
Surface roughness value range: 0.3-1.5um
Slight Matte plate (Ra0.3μm-0.5um)
Heavy Matte plate (Ra1.3-1.5um)
Glossy plate surface glossiness: over 800 GU at 20° (both sides)
Surface hardness: HRC80±20
Thermal transmission: 0.04cal/℃.cm.sec at 20℃
Packaging box: solid plywood carton with soft cushion protection inside.
3. Customerized Size Slight Matte Finish Laminated Steel Plate For PVC Card Lamination- Application
Detailed Product Description:
1). Glossy finish, matte finish, mirror finish,etc.
2). Size & thickness on request
3). High-grade stainless stee
Features:
1). Card laminator Accessories
2). 800 Micron thickness
3). Characteristic: heat-resistant, high elasticity
There are five kinds of steel plates:
1).Glossy steel plates
normal mirror effect,for planographic code and inkjet code.
2).Matte steel plates
on te surface there are tiny lights,thin and lubricious,for planographic code and inkjet code.
3).Coarse matte steel
Platoon lights on the surface,too coarse for planographic code.
4).Moderate coarse matte steel plates
no lights on the surface,moderate coarse.
5).Fine matte steel plates
no lights on the surface, relatively thin and lubricious, for paleographic code and
inkjet code.
Size:100mm*120mm;210mm*297mm;210mm*320mm;325mm*480mm;340mm*500mm
Thickness:0.5mm, 0.6mm,0.7mm, 0.8mm, 1mm

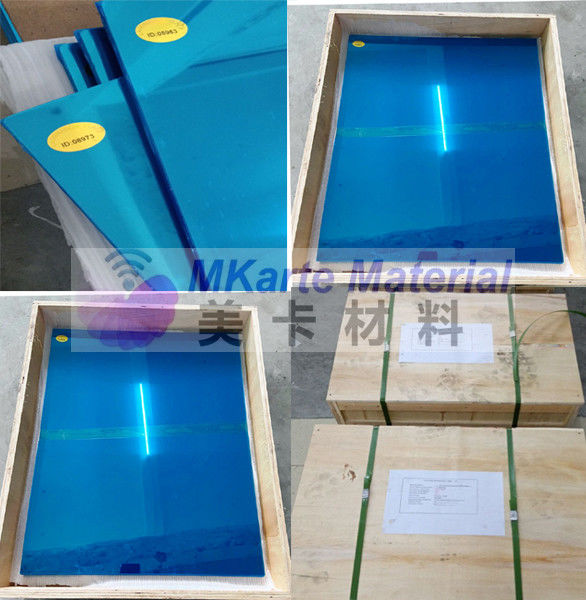

4. Customerized Size Slight Matte Finish Laminated Steel Plate For PVC Card Lamination- Packing
Packing:Wood Tree Texture Double Side Laminating Steel Plate for Card Making / Stainless Steel Plate Press on Cards in standard export wooden case
5. Customerized Size Slight Matte Finish Laminated Steel Plate For PVC Card Lamination- Export Market
We are the long term supplier for many card factories worldwide such as some banking card producers including Thales Group ,and have good business realtionship with customers in USA,Russia,Brazil,Belarus,Malaysia,Korea,Thailand and India.....
