A4 / A3+ Pvc Coated Overlay Strong Adhesion Level For Bank Card Laminating
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MCO-W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30000 sheets or 2 tons |
|---|---|
| Price: | USD 0.02-0.2 per sheet |
| Packaging Details: | by reel or 500 sheets per bag/4-8 bags per paper carton, or as per customer requirements. All the cartons are firmly piled up and fixed on the solid plywood pallet. |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 million square meters or 5 million tons per month |
|
Detail Information |
|||
| Coating: | Coated Or Uncoated | Size: | A4, A3 Or Customized (tolerance+/-0.5mm) |
|---|---|---|---|
| Package Method: | By Reel Or 500 Sheets Per Bag/4 Bags Per Paper Carton, Or As Per Customer Requirements. All The Cartons Are Firmly Piled Up And Fixed On The Solid Plywood Pallet. | Suitable Ink: | Offset And Silk Screen Printing UV Ink, Pigment And Dye Ink For Inkjet Printing As Well As Digital Printing Ink |
| Normal Thickness In Mm: | 0.04,0.05,0.06,0.08,0.10mm | Aging Time: | ＞200 Hours (65℃ Temp./95% Humidity ) |
| Application: | For Pvc Card Lamination | Market: | Worldwide For Pvc Card Making Or Bank Card Making |
| High Light: | a3+ pvc coated overlay,bank card laminating pvc coated overlay,pvc card material a4 |
||
Product Description
A4/A3+ Strong Adhesion Level PVC Coated Overlay For Bank Card Laminating
1. A4/A3+ Strong Adhesion Level PVC Coated Overlay For Bank Card Laminating- Introduction
PVC Coated Overlay MCO-W model is suitable for laminating with most PVC sheets printed by various printers. It features high adhesion, no color change and deformation.
It is applicable to almost all sheets printed by various ink. It features excellent peeling strength and long aging time.
2. A4/A3+ Strong Adhesion Level PVC Coated Overlay For Bank Card Laminating- Technical Parameters:
| Item | Parameters |
| Vicat softening point | 72±2 ℃ |
| Heating Shrinkage ratio | ≤10 % |
| Tensile Strength | ≥40 MPa |
| Normal thickness in mm | 0.04,0.05,0.06,0.08,0.10 |
| Peel Strength (90°, 300mm/min) | ≥6.0 N/cm |
| Aging time (65℃ temp./95% humidity ) | ＞200 hours |
| Suitable ink | offset and silk screen printing UV ink, Pigment and dye ink for inkjet printing as well as digital printing ink |
3. A4/A3+ Strong Adhesion Level PVC Coated Overlay For Bank Card Laminating - Parameters:
1). Size: in reel or sheet, A4, A3 or as per customer requirements
2). Normal thickness: 0.04,0.05,0.06,0.08,0.10mm
3). Color: transparent with one-side glue coating.
4). Package method: by reel or 500 sheets per bag/4-8 bags per paper carton, or as per customer requirements. All the cartons are firmly piled up and fixed on the solid plywood pallet.
5). Storage condition: Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight.
4.A4/A3+ Strong Adhesion Level PVC Coated Overlay For Bank Card Laminating - Form and Shape
A.Detailed Product Description
1).Thickness Range: 0.04-0.10MM
2).Finish: Matt
3).Size: Customized Roll size or Sheet size
4).High initial stick
B.Manufacture Method
1). Put printing core and two overlay together, then put into the laminator, the temperature is determined as per the instruction of the machine , Pls be noticed that all glue sides of both pvc sheets and overlay are put inward.
2). The lamination usually lasts 10-15minutes ,The pressure is 6-8Mpa, The temperature is 120-140°C
3). Cut the card
5. A4/A3+ Strong Adhesion Level PVC Coated Overlay For Bank Card Laminating- Application
we have exported the materials to Argentina, Isreal, India, Romania, Mexico, Ukrain, South Africa...so pls feel easy on our quality.
Any question about the pvc materials, pls let me know.
We can send you free samples of your exact size (20 pcs for each model) for your testing purpose.
| Product model | Product name | Thickness Range mm | Color | Vicat ℃ | dynes/cm | Apparent density g/cm3 | Peel strength N/cm | Main application |
| PVC coated overlay |
General coated overlay
|
0.04~0.10 | Transparent | 72-76 | 34~44 | 1.12~1.30 | / | It is mainly used for various magnetic stripe cards, phone cards, membership cards and other PVC cards, adhesive force is more than 3.5N. . |

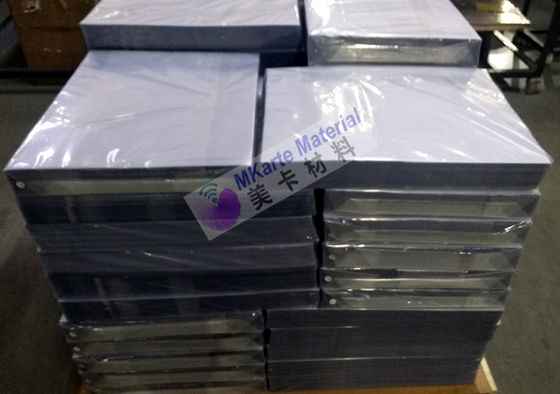

6. A4/A3+ Strong Adhesion Level PVC Coated Overlay For Bank Card Laminating- Package and Loading
