Smart Card 1.0mm Lamination Steel Plate Fine Silk Finish
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MSP-S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 150-200 sheets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | solid plywood carton with soft cushion protection inside |
| Delivery Time: | 10 - 20 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/P, , D/P |
| Supply Ability: | about 2500 sheets per week |
|
Detail Information |
|||
| Thickness: | 1.0mm | Thermal Transmission: | 0.04cal/℃.cm.sec At 20℃ |
|---|---|---|---|
| Sheet Size: | In Sheet A3, A4 Or As Customized | Surface Finish: | Silk Finish On Both Sides |
| Dimension Tolerance: | ±1mm For Length And Width | Package: | In Plywood Case, Suitable For Export |
| High Light: | 1.0mm lamination steel plate,fine silk finish lamination steel plate,smart card lamination steel plate |
||
Product Description
1.0mm Fine Silk Finish Lamintion Steel Plate Smart Card Material
Production Specification
Silk pattern lamination steel plates are mainly used for INLAY (Prelam) sheet lamination to realize silk rough surface of INLAY sheet after lamination. It can well ensure perfect plastic card surface finish after lamination. Our plates are being widely used by many card factories in both China and foreign countries worldwide.
Key Features:
1. The two sides are covered with protection foils (blue thin films) to ensure good protection on both surfaces. There is no glue left after the foil is removed before the plate is used at the first time.
2. Two sides have the silk pattern in the same quality.
3. There are no scratches, dents, stripes shadows and dust on plate surfaces.
4. The edges are smooth and deburred with the round curved corners.
5. After lamination, the plates are not sticking to the laminated plastic sheets.
Technical Parameters:

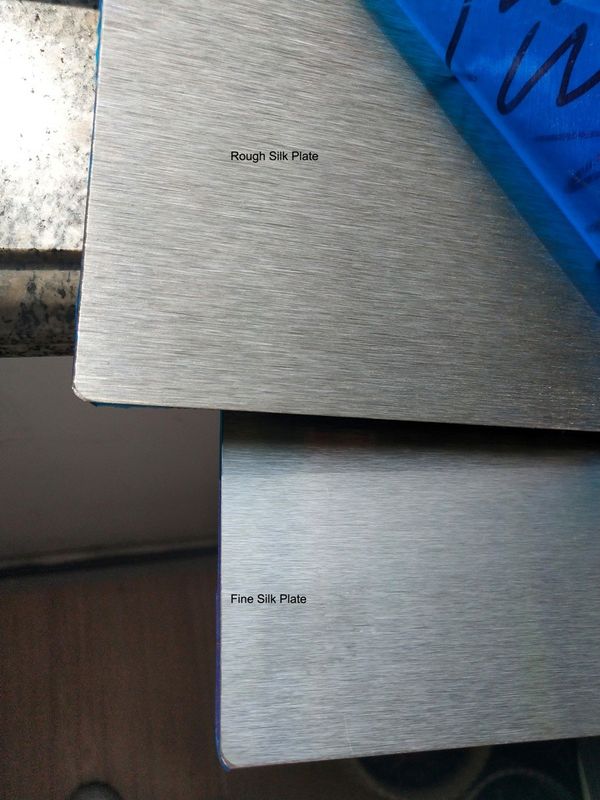

| Surface Pattern | Fine silk/Rough silk |
| Thickness | 1.0 mm (Thickness tolerance: ±0.05mm) |
| Plate size | in sheet, A3, A4 or custom-made size |
| Plate flatness level | maximum 1 mm / m |
| Surface hardness | <=HRC26 |
| Thermal transmission | 0.04cal/℃.cm.sec at 20℃ |
| Plate Edge | smooth and deburred with the round curved corners |
| Packaging box | Strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport |
2.Usage of 1.0mm Fine Silk Finish Lamintion Steel Plate Smart Card Material
* Customer design can be accept.
3. Packing of 1.0mm Fine Silk Finish Lamintion Steel Plate Smart Card Material
In plywood case, suitable for export
