Rfid Inlay / Prelam Sheets A4 Ic Fudan F08 Chip For Rfid Cards Production

Rfid Inlay / Prelam Sheets A4 Ic Fudan F08 Chip For Rfid Cards Production

Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MK-Inlay

Payment & Shipping Terms:

Minimum Order Quantity: 50000chips
Price: based on the layout and order qty
Packaging Details: in carton
Delivery Time: 8-15 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 50000 chips per week
Get Best Price Contact Now

Detail Information

Material: PVC Size: A4 210*297mm
Sheet Layout: 2X5 Chip Types: Fudan FM11RF08
Frequency: 1k Antenna: Copper Wire
High Light:

rfid inlay a4

,

prelam sheets rfid inlay

,

rfid cards production prelam sheets

Product Description

                                                 RFID Inlay/Prelam sheets for RFID cards production-A4 IC Fudan F08 chip​



1. RFID Inlay/Prelam sheets for RFID cards production-A4 IC Fudan F08 chip- Introduction



RFID Card Inlay/Prelam sheet is the basic sheet for the production of RFID Cards. It is laminated with printing sheets and coated overlay inside the card laminator to make the RFID card thick sheets which will be punched to be RFID Card. It is made of PVC sheets, antenna and RFID chips inside.

RFID Card Inlay/Prelam sheet by MKarte Materials has the best quality control and the most competitive cost.





2. RFID Inlay/Prelam sheets for RFID cards production-A4 IC Fudad F08 chip-Technical paramater

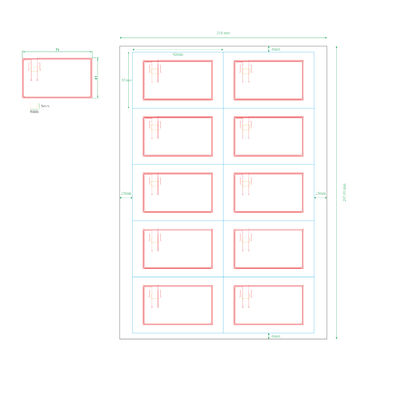

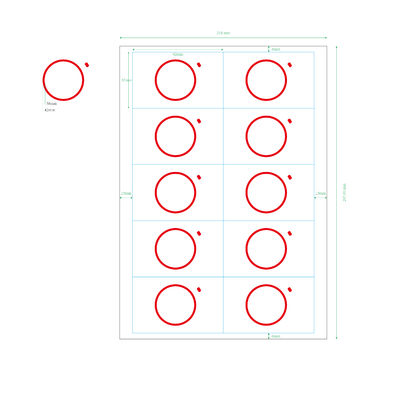

Rfid Inlay / Prelam Sheets A4 Ic Fudan F08 Chip For Rfid Cards Production 0

We can supply you the real quality RFID card INLAY/PRELAM sheets with competitive factory prices.

Product key features:

Sheet Layout: 2X5, 3X7, 3X8, 5X5, 4X8 or customized

Material: PVC

Sheet thickness: 0.45-0.5mm or customized.

Chip types:

125 KHz LF chips:

ID4168/TK4100/TSS77/compatible chip1/compatible chip2/compatible chip S256/compatible chip 2048/relevant more

13.56MHz HF chips:

Fudan FM11RF08/ Feiji-F8001/ISSI4439/Fudan-FM11RF32/S50/S70/Ultralight/F1108 TK4168/Natag…

Antenna: copper wire



3. RFID Inlay/Prelam sheets for RFID cards production-A4 IC Fudad F08 chip-Application

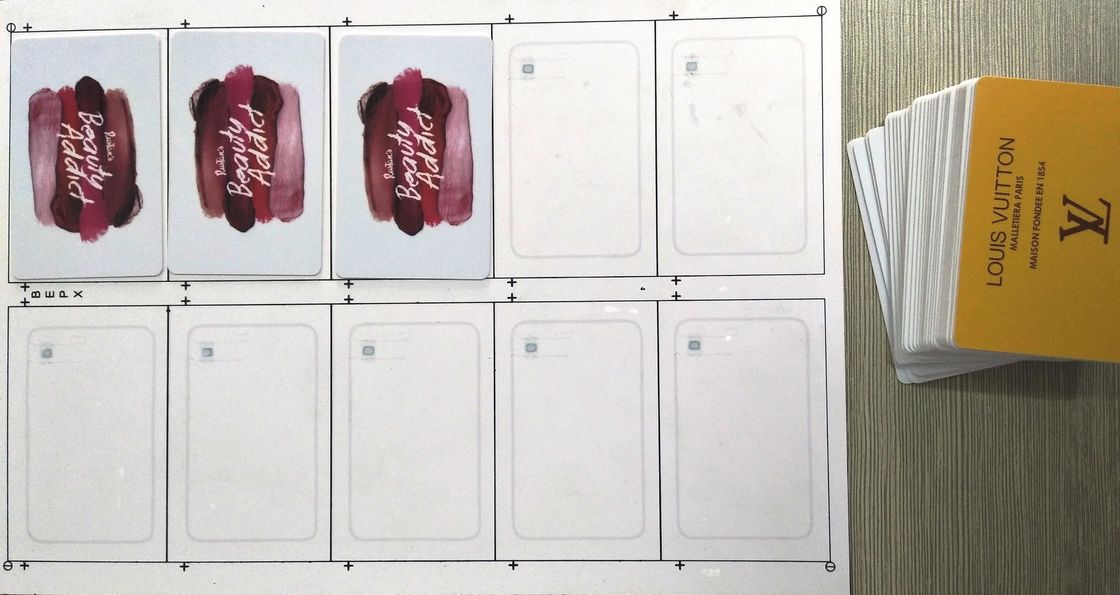

Rfid Inlay / Prelam Sheets A4 Ic Fudan F08 Chip For Rfid Cards Production 1

Rfid Inlay / Prelam Sheets A4 Ic Fudan F08 Chip For Rfid Cards Production 2





4. RFID Inlay/Prelam sheets for RFID cards production-A4 IC Fudad F08 chip-Packaging



Packaged in export carton,plied on the plywood pallet
