Product Details:

Place of Origin: China
Brand Name: MK

Payment & Shipping Terms:

Minimum Order Quantity: 1000kgs
Price: negotiable
Packaging Details: packaged on plywood pallet
Delivery Time: about 10-15days after receiving prepayment
Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability: 10000kgs per month
Get Best Price Contact Now

Detail Information

Color: Red Conductor Diameter(mm): 0.10±0.001
Electrical Resistance (Ω/m): 2.176±3% Size: Overall Diameter(mm): 0.135±0.004; Insulated Layer(mm): 0.019~0.023; Adhesive Layer Thickness(mm): 0.012~0.016
Melting Temperature(℃): 160~180℃ Shelf Life(20℃): 1-2 Years

Product Description

              0.1mm Diameter Red Or Silver RFID Inlay Self-Adhesive Card Antenna Copper Wire MACW-1



1. Introduction of 0.1mm Diameter Red Or Silver RFID Inlay Self-Adhesive Card Antenna Copper Wire MACW-1



Self-Adhesive Card Antenna Copper Wire MACW-1 is specially used for making the copper antenna by means of ultrasonic embedding process. It applies polyurethane material with the temperature resistance degree of 160-180 degree Celsius.

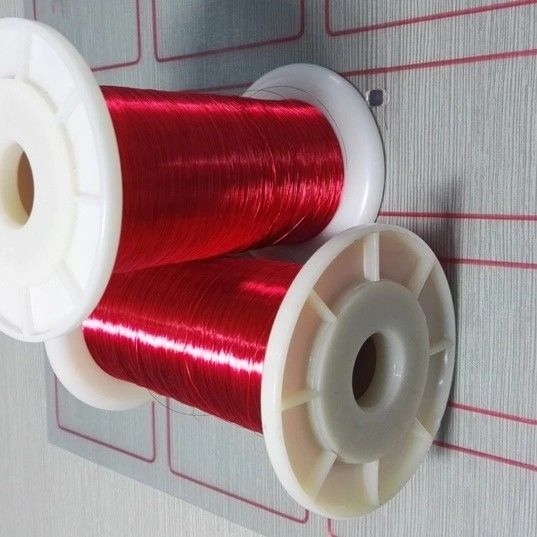

0.1mm diameter Red or silver RFID Inlay Self-Adhesive Card Antenna Copper Wire MACW-1 0



Color Red
Conductor diameter(mm): 0.10±0.001
Electrical resistance (Ω/m): 2.176±3%
Size

Overall diameter(mm): 0.135±0.004; Insulated layer(mm): 0.019~0.023; Adhesive layer thickness(mm): 0.012~0.016

Elongation(%) ≥19%
Intensity(g) ≥130
Brine Pinhole(Piece) ≤6M/8
Breakdown voltage(V) ≥2200
Solder temperature(℃) 380±5℃
Self-adhesive method Bonding with hot air
Melting strength(g): ≥30
Melting temperature(℃): 160~180℃
Temperature level F
Shelf life(20℃) 1-2 years



2. Features of 0.1mm Diameter Red Or Silver RFID Inlay Self-Adhesive Card Antenna Copper Wire MACW-1





It is produced according to JIS or NEMA standards. It features stable resistance, perfect viscosity, color uniformity and good product consistency. It has been widely used by many card INLAY producers worldwide.

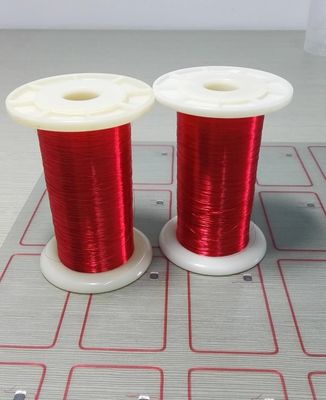

0.1mm diameter Red or silver RFID Inlay Self-Adhesive Card Antenna Copper Wire MACW-1 1



3. Application of 0.1mm Diameter Red Or Silver RFID Inlay Self-Adhesive Card Antenna Copper Wire MACW-1

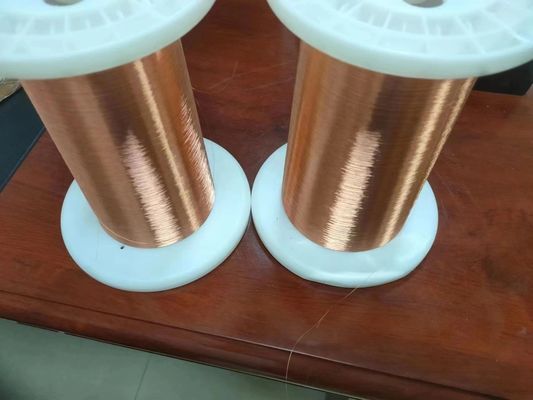

0.1mm diameter Red or silver RFID Inlay Self-Adhesive Card Antenna Copper Wire MACW-1 2



4. Technical Parameters of 0.1mm Diameter Red Or Silver RFID Inlay Self-Adhesive Card Antenna Copper Wire MACW-1:

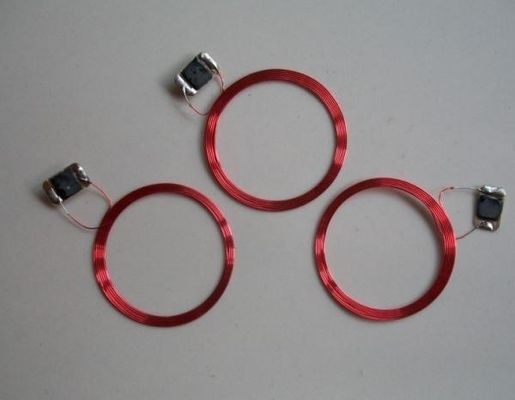

0.1mm diameter Red or silver RFID Inlay Self-Adhesive Card Antenna Copper Wire MACW-1 3

  1. ) Color: Red
  2. ) Conductor diameter(mm): 0.10±0.001
  3. ) Electrical resistance (Ω/m): 2.176±3%
  4. )Size: Overall diameter(mm): 0.135±0.004; Insulated layer(mm): 0.019~0.023; Adhesive layer thickness(mm): 0.012~0.016
  5. ) Elongation(%): ≥19%
  6. ) Intensity(g): ≥130
  7. ) Brine Pinhole(Piece): ≤6M/8
  8. ) Breakdown voltage(V): ≥2200
  9. ) Solder temperature(℃): 380±5℃
  10. ) Self-adhesive method: Bonding with hot air
  11. ) Melting strength(g): ≥30
  12. ) Melting temperature(℃): 160~180℃
  13. ) Temperature level: F
  14. ) Shelf life(20℃): 1-2 years
